Pinpoint Test C: The Generic Electronic Module (Gem) Does Not Respond To The Diagnostic Tool
WARNING: This page is about a different car, the 2003 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

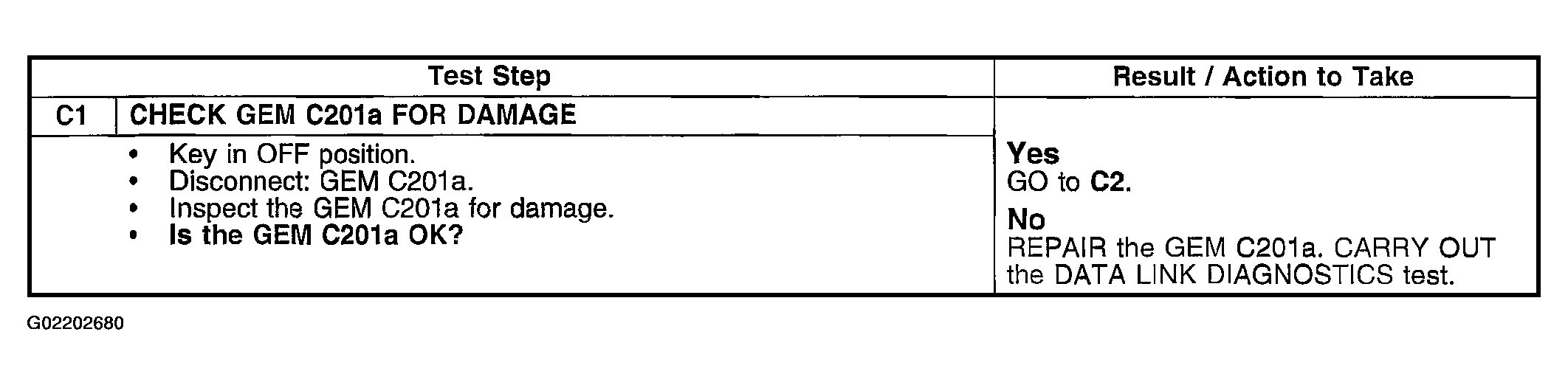

Fig 1: Pinpoint Test C: Generic Electronic Module (GEM) Does Not Respond To Diagnostic Tool (Steps C1)
Courtesy of FORD MOTOR CO.

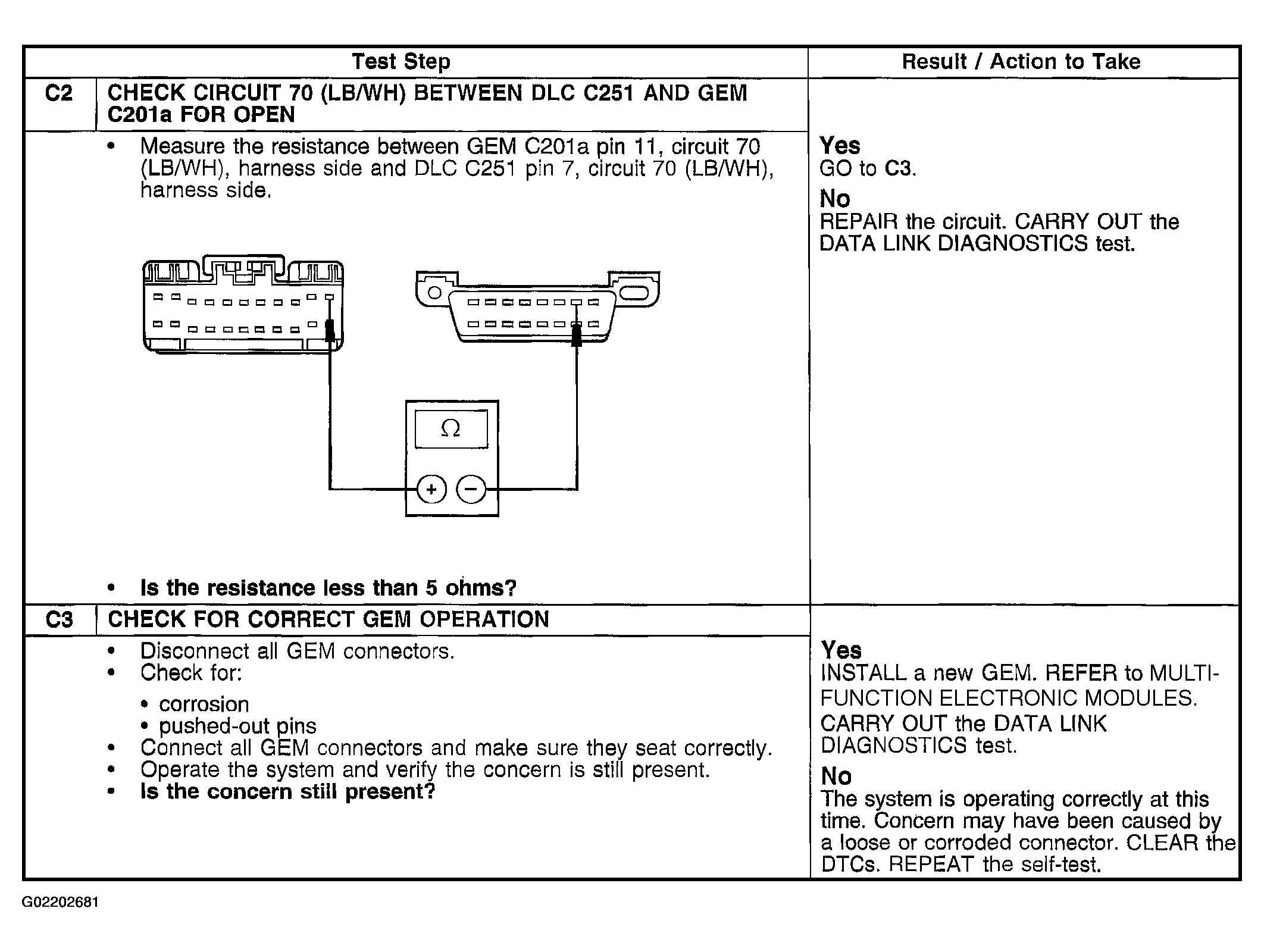

Fig 2: Pinpoint Test C: Generic Electronic Module (GEM) Does Not Respond To Diagnostic Tool (Steps C2-C3)
