Pinpoint Test G: Flash Code 2 - BPP Switch Circuit Failure

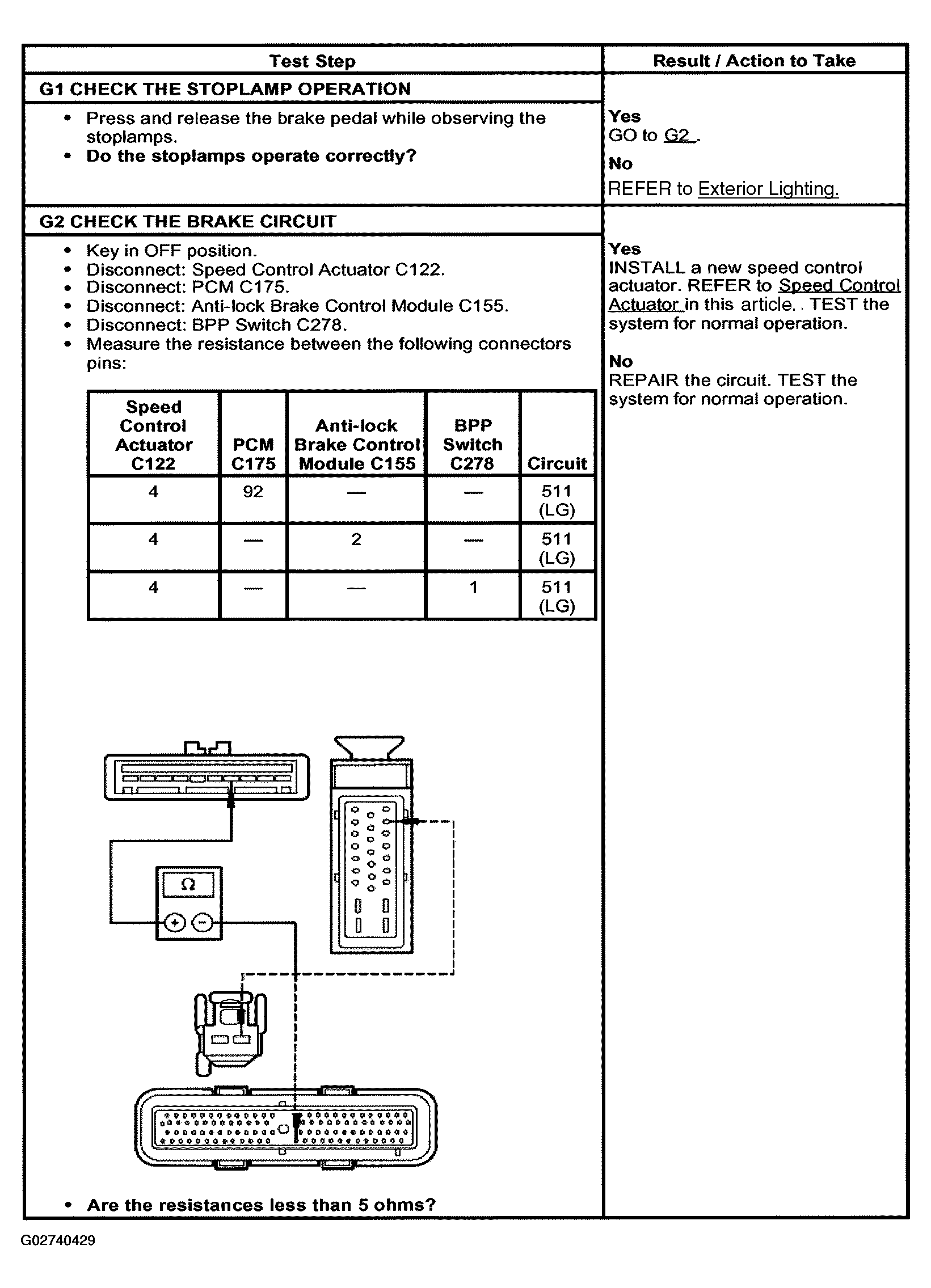

Fig 1: Pinpoint Test G: Flash Code 2 - BPP Switch Circuit Failure (Step G1-G2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
