Heated Seat Module: Removal
WARNING:
Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment. Failure to follow these instructions may result in personal injury.
WARNING:
Carry a live side air bag module with the air bag and tear seam pointed away from your body. This will reduce the risk of injury in the event of an accidental deployment. Failure to follow these instructions may result in personal injury.
WARNING:
Do not set a live side air bag module down on the cover tear seam. This will reduce the risk of injury in the event of an accidental deployment. Failure to follow these instructions may result in personal injury.
WARNING:
After deployment, the air bag surface can contain deposits of sodium hydroxide, a product of the gas generant combustion that is irritating to the skin. Wash your hands with soap and water afterward. Failure to follow these instructions may result in personal injury.
WARNING:
Never probe the connectors on the air bag module. Doing so may result in air bag deployment. Failure to follow these instructions may result in personal injury.
WARNING:
Vehicle sensor orientation is critical for proper system operation. If a vehicle equipped with an air bag supplemental restraint system (SRS) is involved in a collision, inspect the sensor mounting bracket and wiring pigtail for deformation. Replace and properly position the sensor or any other damaged supplemental restraint system (SRS) components whether or not the air bag is deployed. Failure to follow these instructions may result in personal injury.
WARNING:
To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.
Refer to AIR BAG RESTRAINT SYSTEMS to determine location of the front air bag sensors.
The side air bag sensors are located at or near the base of the B-pillar.
To deplete the backup power supply energy, disconnect the battery and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped). Failure to follow these instructions may result in personal injury.
WARNING:
The restraint system diagnostic tool is for restraint system service only. Remove from vehicle prior to road use. Failure to follow these instructions may result in personal injury and refer to possible violation of vehicle safety standards.
WARNING:
The safety belt pretensioner is a pyrotechnic device. Always wear safety glasses when repairing an air bag equipped vehicle and when handling a safety belt buckle pretensioner or safety belt retractor pretensioner. Never probe a pretensioner electrical connector. Doing so could result in pretensioner or air bag deployment and could result in personal injury.
WARNING:
To reduce the risk of personal injury, do not use any memory saver devices.
NOTE:
If a seat equipped with a seat-mounted side air bag and/or a safety belt pretensioner (if equipped) system is being serviced, the supplemental restraint system (SRS) must be depowered.
NOTE:
The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
NOTE:
The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
NOTE:
A repair is made by installing a new part only. If a new part is installed and the new part does not correct the condition, install the original part and carry out the diagnostic procedure again.
NOTE:
If a side air bag deployment took place, a new seatback pad, trim cover, and side air bag module must be installed. A new seatback frame should be installed if necessary.
- Remove the front seat and depower the SRS. For additional information, refer to DRIVER SEAT or PASSENGER SEAT

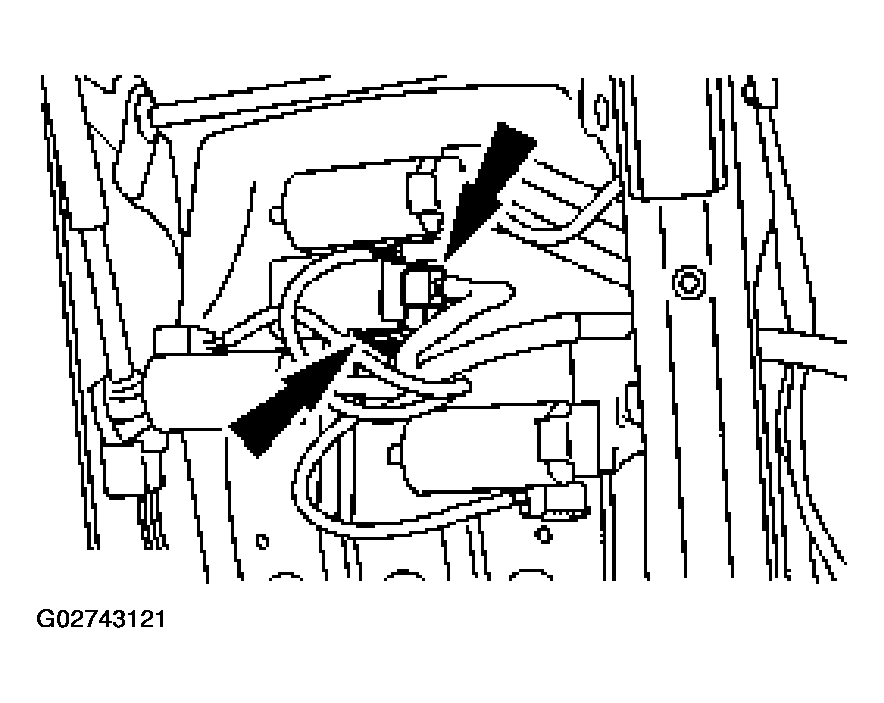

- Remove the heated seat module.
- Disconnect the electrical connector.
- Using a small flat-blade screwdriver, release the locking tab and slide the module off the bracket.
