Piston Diameter
Measure the piston diameter 90 degrees from the piston pin at the point indicated.
If out of specification, install new components as necessary. Refer to
ENGINE-2.0L ZETEC
or
ENGINE-3.0L (4V)
for specifications and procedures .

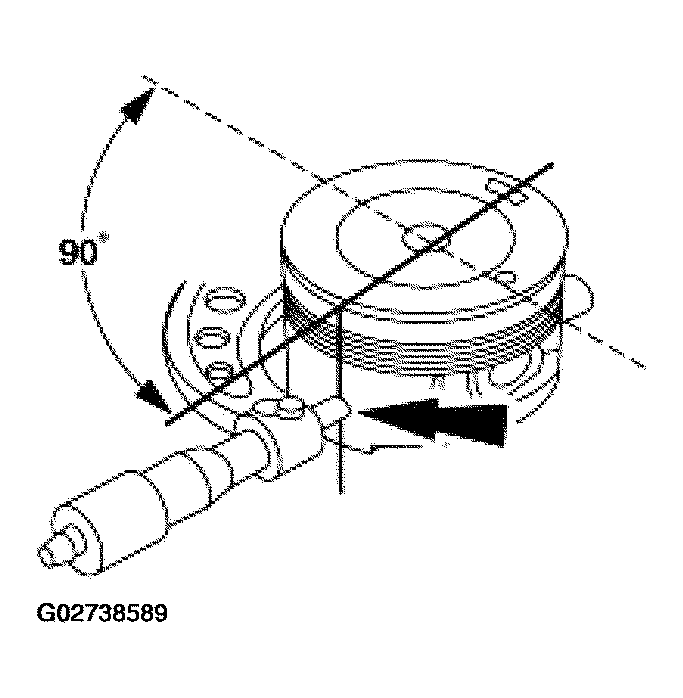

Fig 1: Measuring Piston Diameter 90 Degrees From Piston Pin
Courtesy of FORD MOTOR CO.
