Roller Follower Inspection

  1. Inspect the roller for flat spots or scoring. If any damage is found, inspect the camshaft lobes and valve tappet for damage.

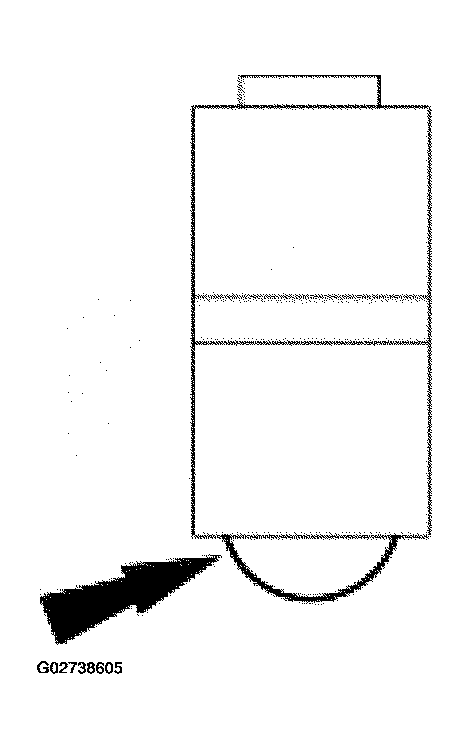

Fig 1: Inspecting Roller For Flat Spots Or Scoring (Push Rod Engines)
G02738605Courtesy of FORD MOTOR CO.

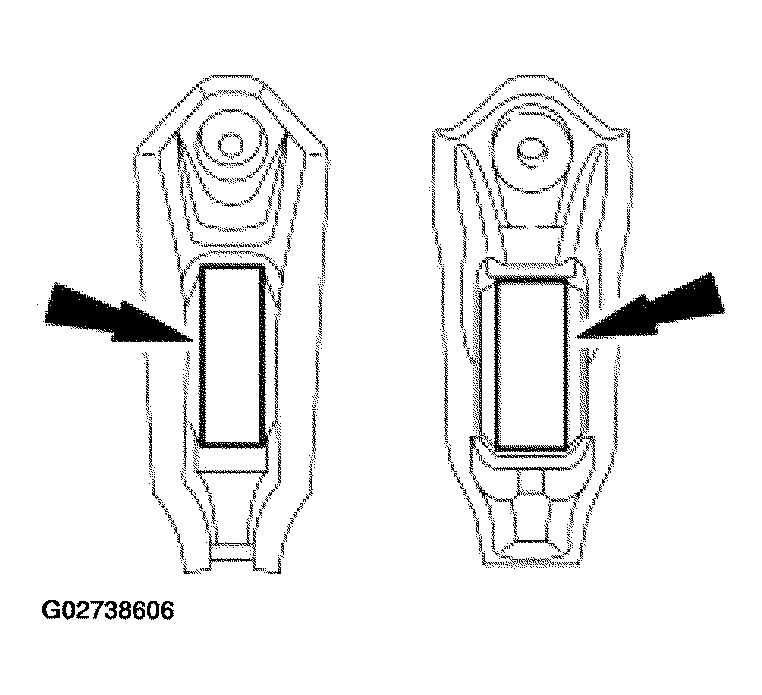

Fig 2: Inspecting Roller For Flat Spots Or Scoring (OHC Engines)
G02738606Courtesy of FORD MOTOR CO.
