Valve Guide Inner Diameter

Measure the inner diameter of the valve guides in two directions where indicated.
- Refer to ENGINE-2.0L ZETEC or ENGINE-3.0L (4V) for specifications .

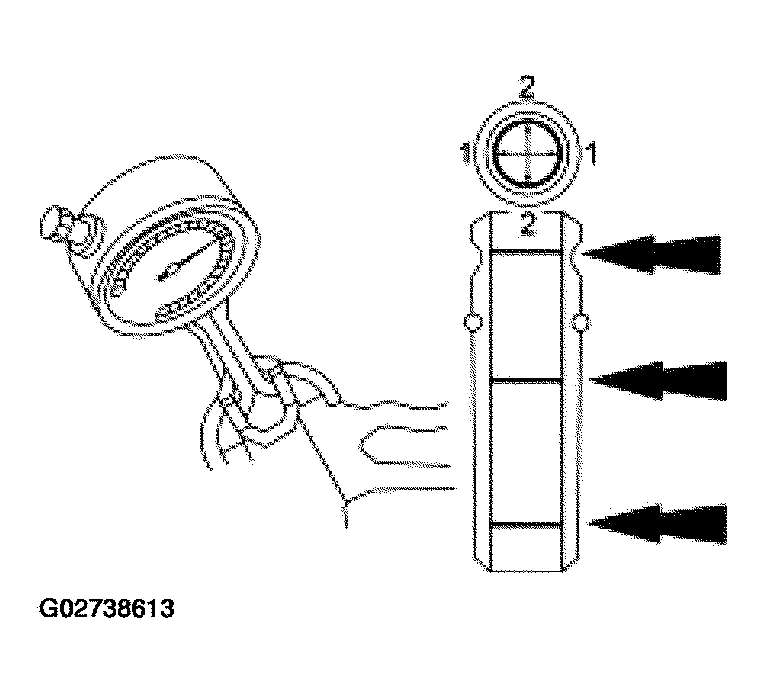

Fig 1: Measuring Inner Diameter Of Valve Guides In Two Directions
Courtesy of FORD MOTOR CO.
If the valve guide is not within specifications, install a new cylinder head assembly.
