Quick Release Coupling -R-Clip: Connect

Clean and inspect the fitting and the tube for damage. Remove any foreign material or obstructions.

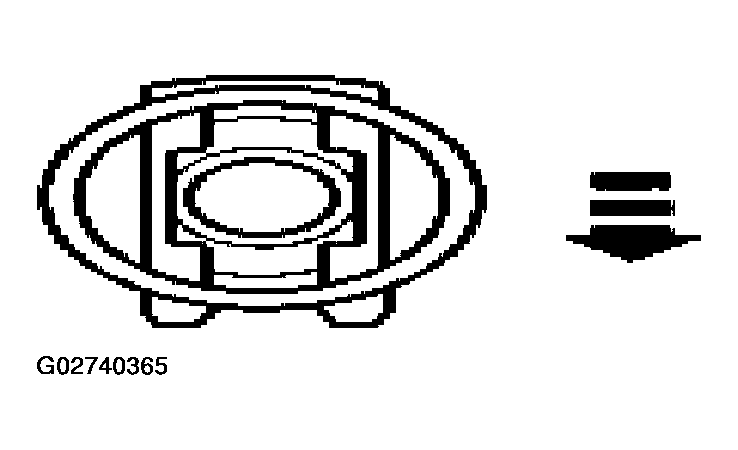

Insert the R-clip into the fitting.

Fig 1: Inserting R-Clip Into Fitting
Courtesy of FORD MOTOR CO.

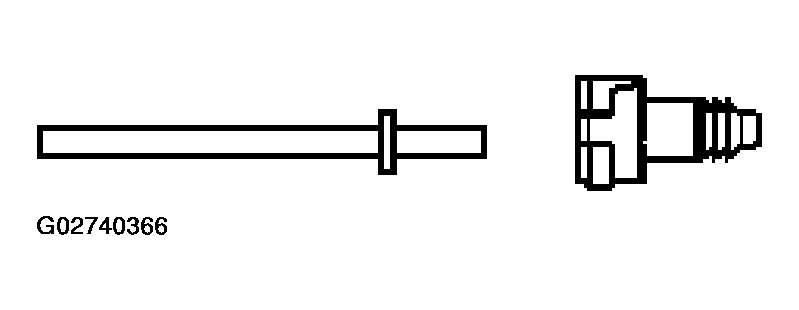

Align the tube and the fitting.

Fig 2: Aligning Tube
Courtesy of FORD MOTOR CO.
Insert the tube in the fitting and push together until a click is heard.

Fig 3: Pushing Tube Connection
Courtesy of FORD MOTOR CO.

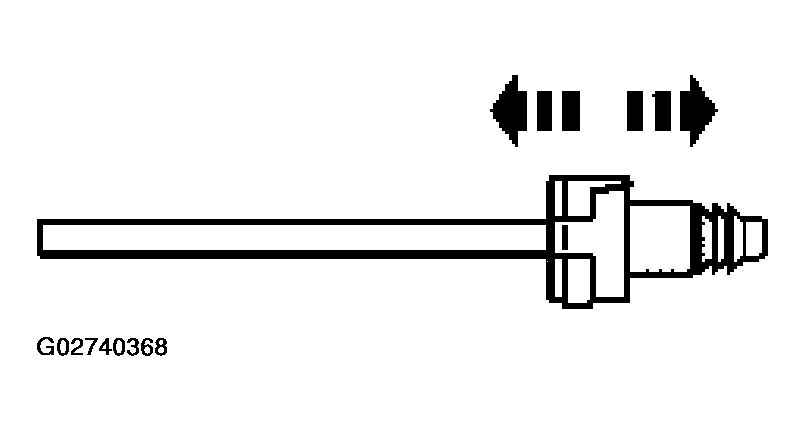

Pull on the connection to make sure it is fully engaged.

Fig 4: Pulling Tube Connection
Courtesy of FORD MOTOR CO.
Connect the battery ground cable. For additional information refer to BATTERY, MOUNTING AND CABLES
