Spring Lock Couplings: Connect

Clean and inspect both coupling ends. Install new O-ring seals and garter springs if necessary.

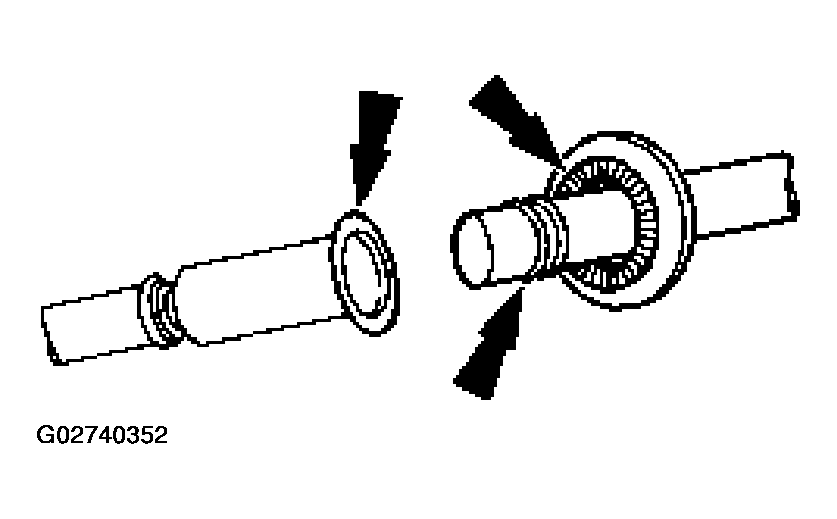

Fig 1: Installing New O-Ring Seals And Garter Springs
Courtesy of FORD MOTOR CO.
Fit the male coupling into the female end and push until the garter spring snaps over the flared end of the female coupling.

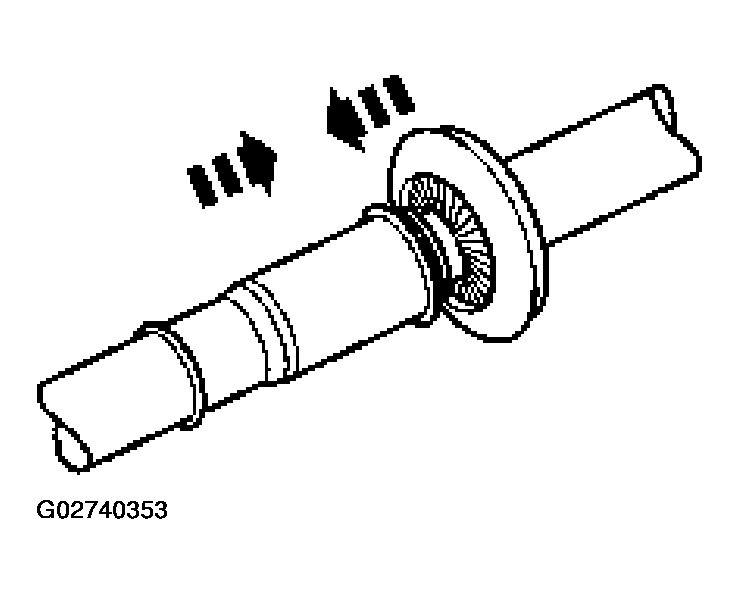

Fig 2: Fitting Male Coupling Into Female End
Courtesy of FORD MOTOR CO.
Verify coupling engagement by pulling on the lines.

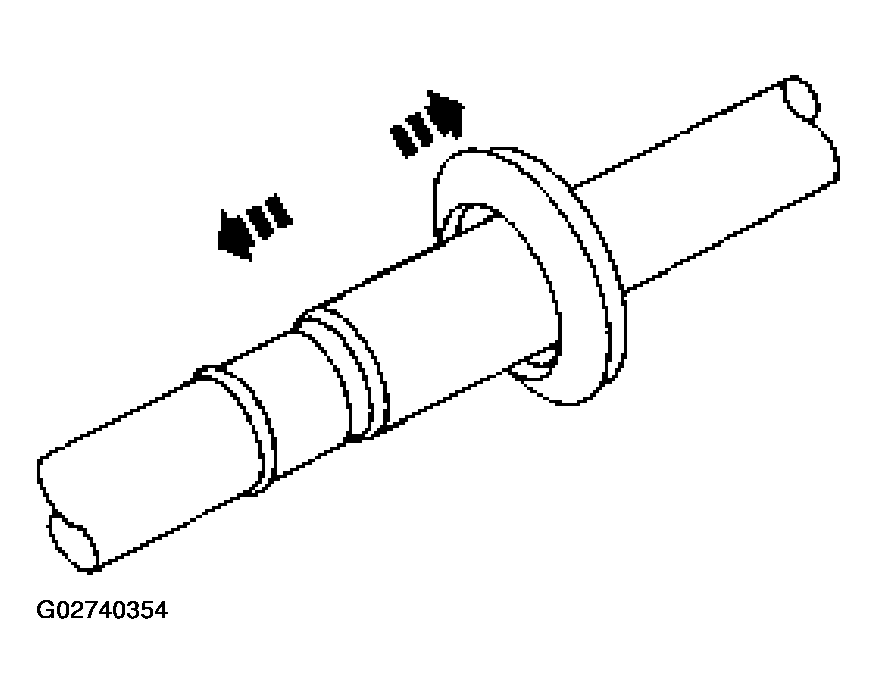

Fig 3: Verifying Coupling Engagement By Pulling On Lines
Courtesy of FORD MOTOR CO.
Install the fuel line clip.

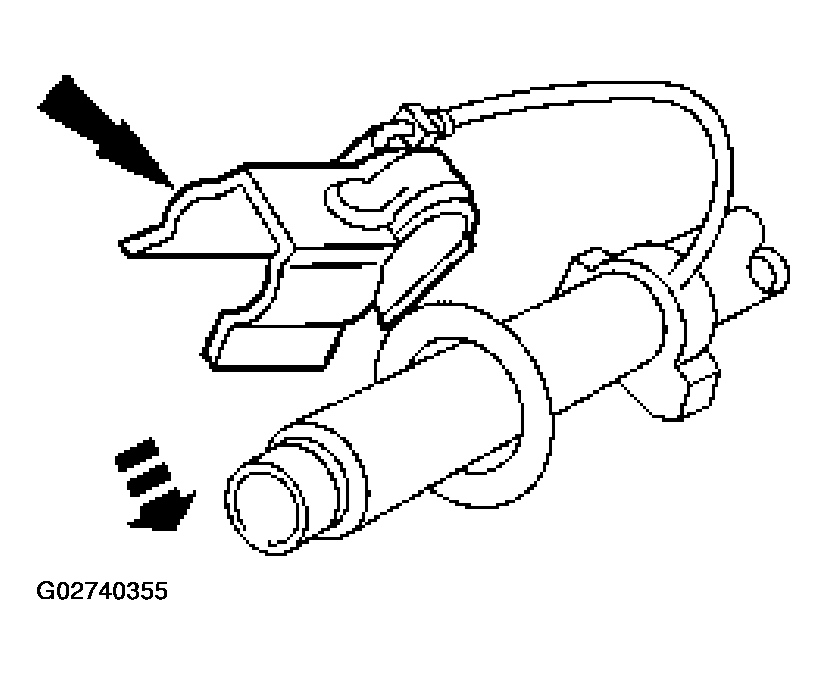

Fig 4: Installing Fuel Line Clip
Courtesy of FORD MOTOR CO.
Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES
