Quick Release Coupling - Push Connect: Connect

WARNING: This page is about a different car, the 2003 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Clean and inspect the coupling and the tube for damage.
Align the tube to the coupling and push until you hear a click.

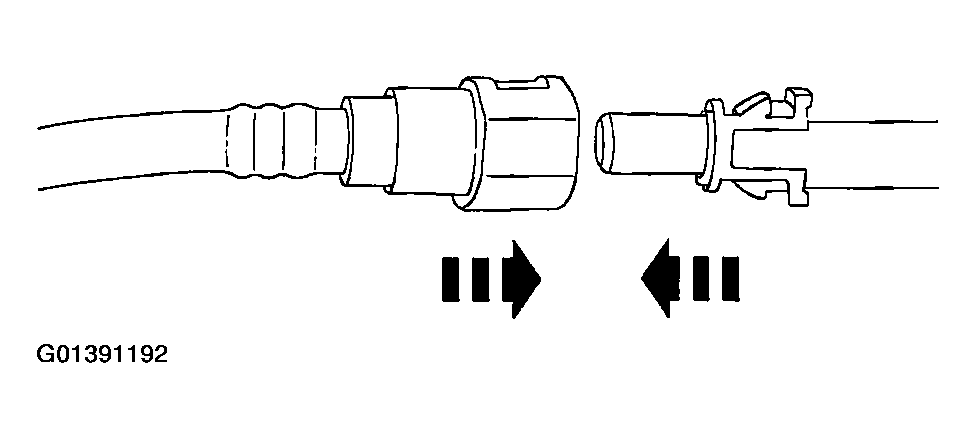

Fig 1: Aligning Tube To Coupling
Courtesy of FORD MOTOR CO.
Pull on the coupling to make sure it is fully engaged.

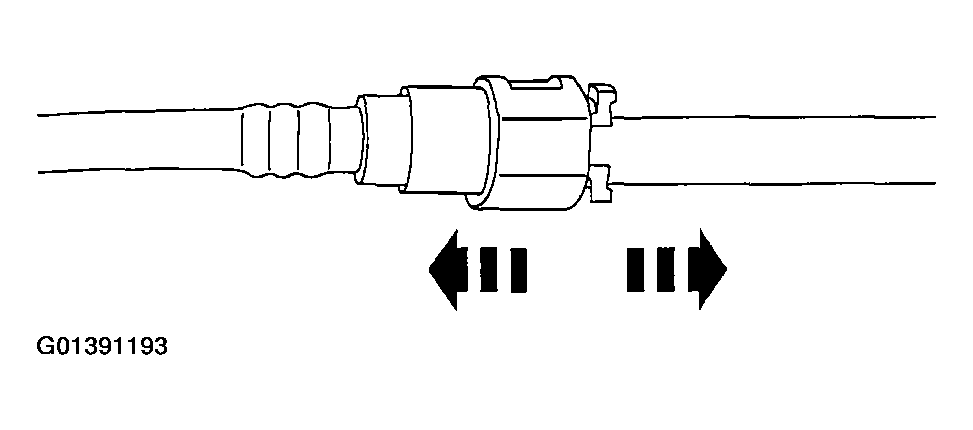

Fig 2: Pulling On Coupling
Courtesy of FORD MOTOR CO.
Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
