Spring Lock Coupling: Disconnect

  1. Recover the refrigerant. refer to DISCHARGING AND RECOVERY .
  2. Remove the A/C tube lock coupling clip (19E746).

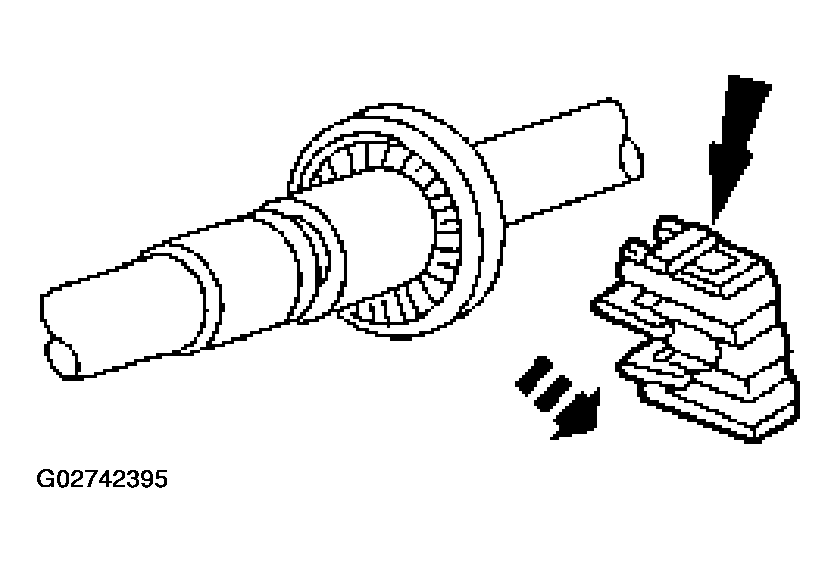

    Fig 1: Removing A/C Tube Lock Coupling Clip
    G02742395Courtesy of FORD MOTOR CO.
  3. Using the special tool, disengage the spring lock coupling fittings.

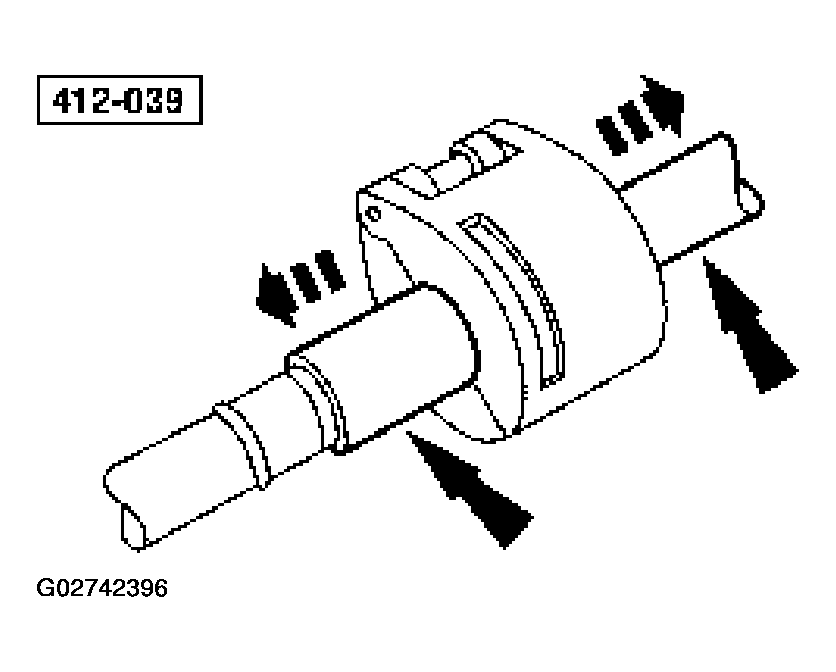

    Fig 2: Disengaging Spring Lock Coupling Fittings
    G02742396Courtesy of FORD MOTOR CO.
    4. CAUTION: Do not use metal tools to remove the O-ring seals. They can cause axial scratches across the O-ring seal grooves resulting in refrigerant leaks.

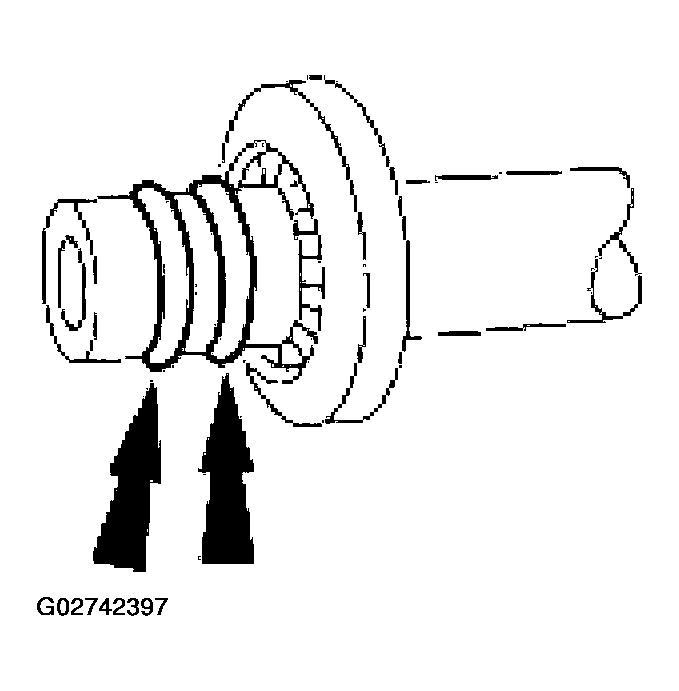

    Fig 3: Locating O-Ring Seals
    G02742397Courtesy of FORD MOTOR CO.
  4. Remove the O-ring seals with a non-metallic tool.
    5. CAUTION: Do not use a screwdriver or similar tool to remove the A/C tube lock coupling spring; this can cause axial scratches across the O-ring seal grooves resulting in refrigerant leaks.

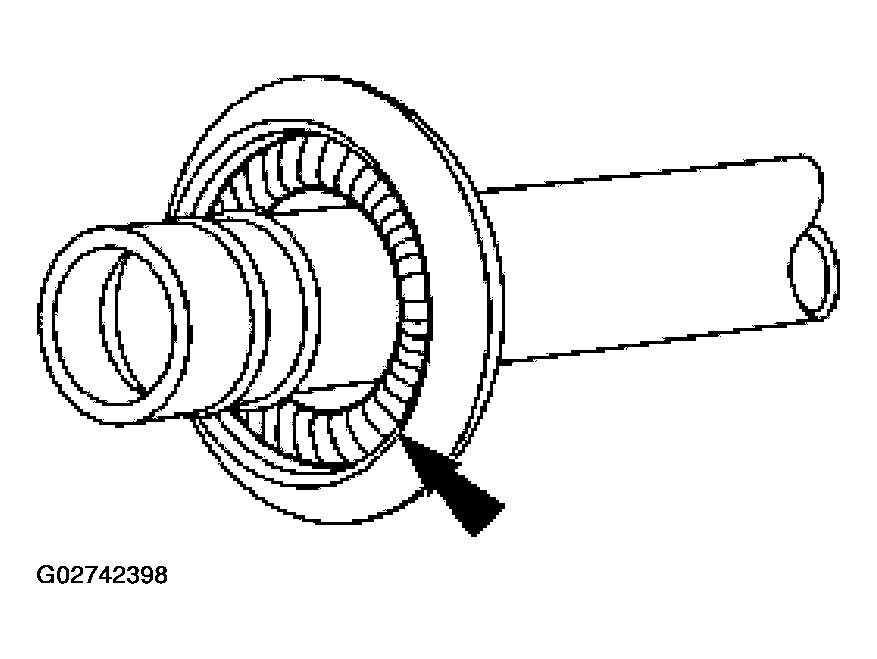

    Fig 4: Removing A/C Tube Lock Coupling Spring
    G02742398Courtesy of FORD MOTOR CO.
  5. Remove the A/C tube lock coupling spring with a small hooked wire.
