Pinpoint Test B: Steering Is Very Difficult/Very Easy

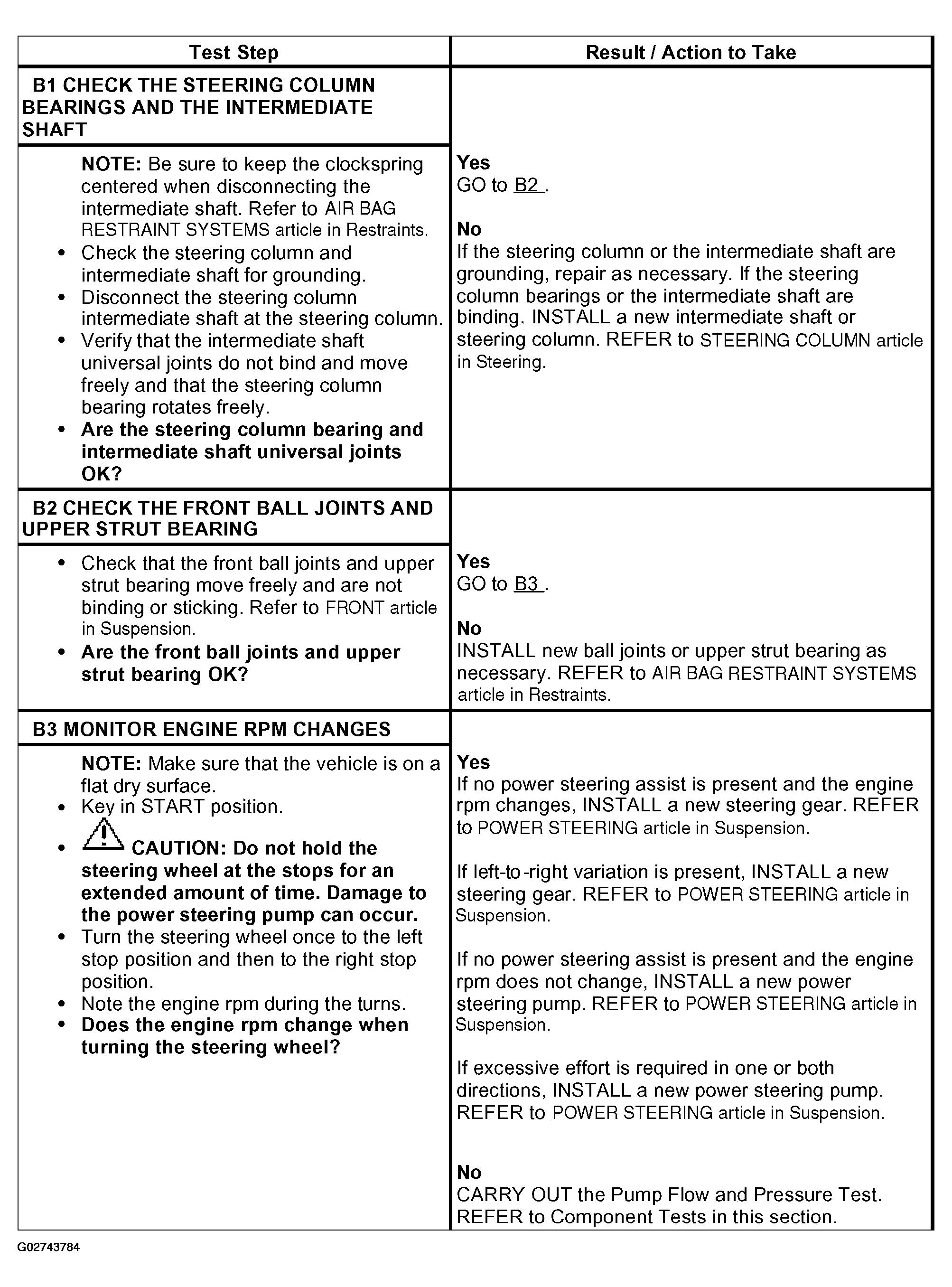

Fig 1: Pinpoint Test B: Steering Is Very Difficult/Very Easy
G02743784Courtesy of FORD MOTOR CO.
