Shift Control Housing: Assembly

Install the shift gate.

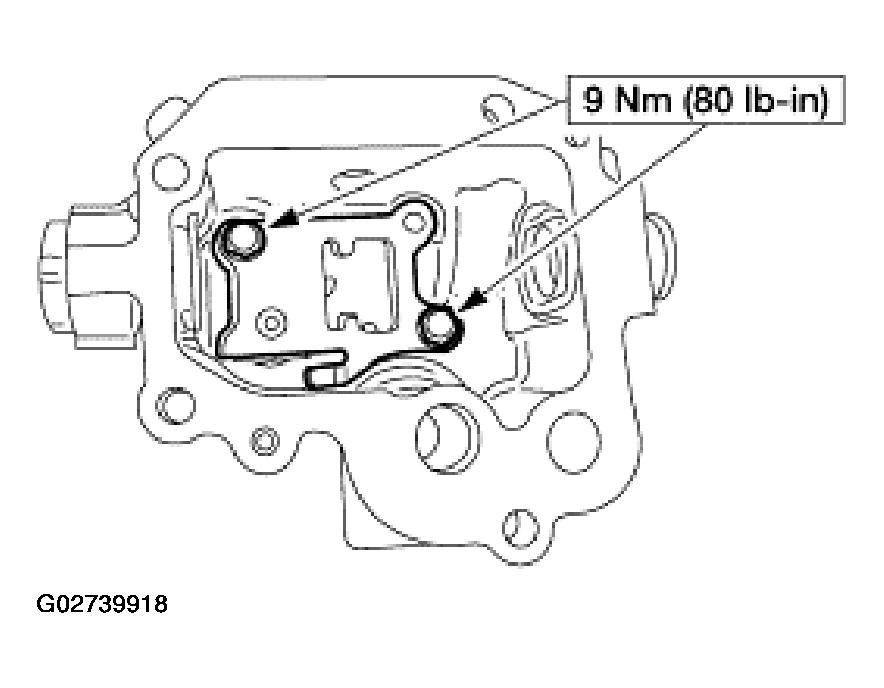

Fig 1: Shift Gate Bolt Torque Specification
Courtesy of FORD MOTOR CO.

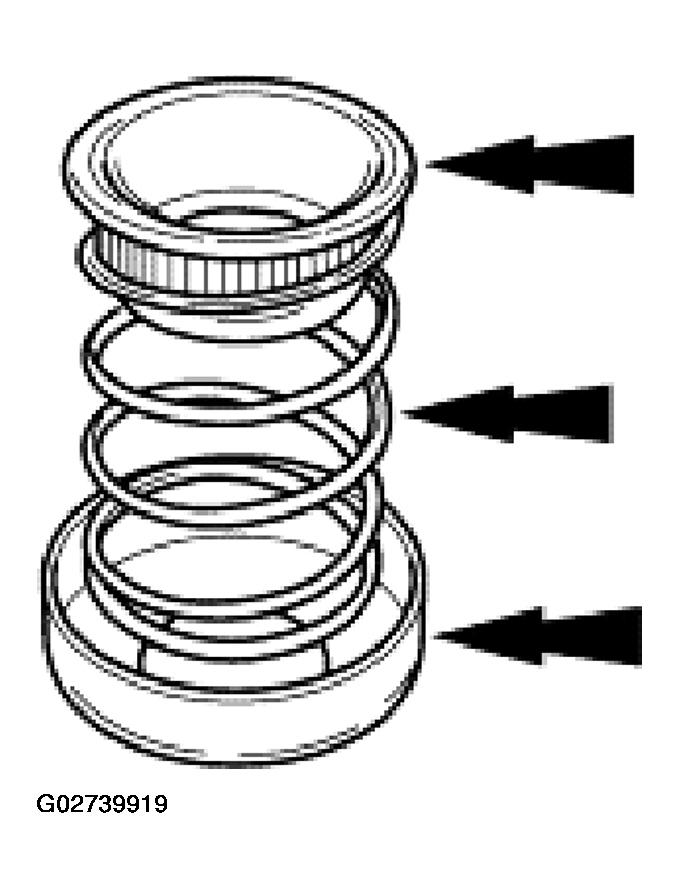

Assemble the spring and cap assemblies.

Fig 2: Assembling Spring And Cap Assemblies
Courtesy of FORD MOTOR CO.

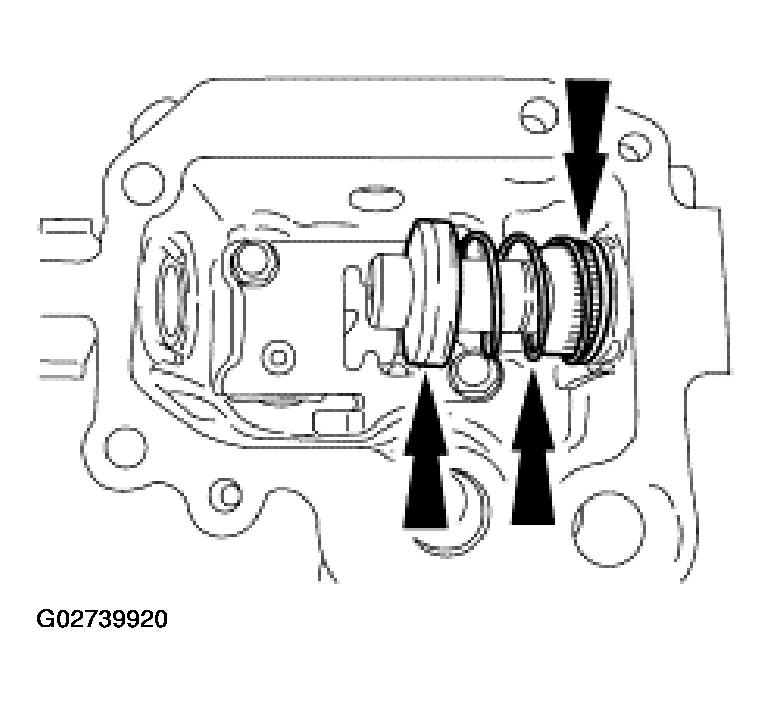

Position the spring assembly and partially install the shift rod.

Fig 3: Positioning Spring Assembly
Courtesy of FORD MOTOR CO.

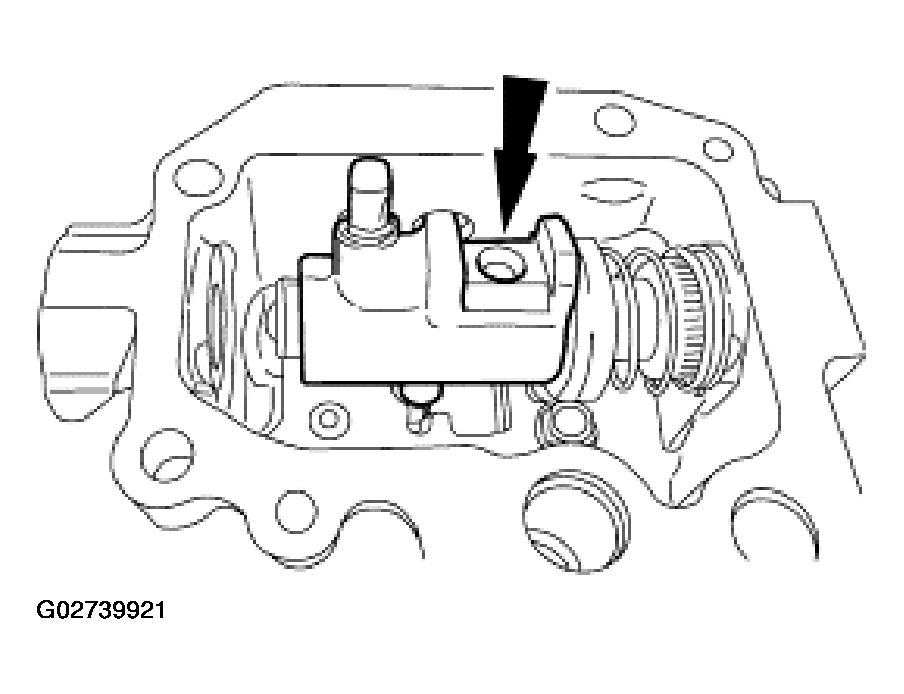

Install the shift cam.

Fig 4: Installing Shift Cam
Courtesy of FORD MOTOR CO.

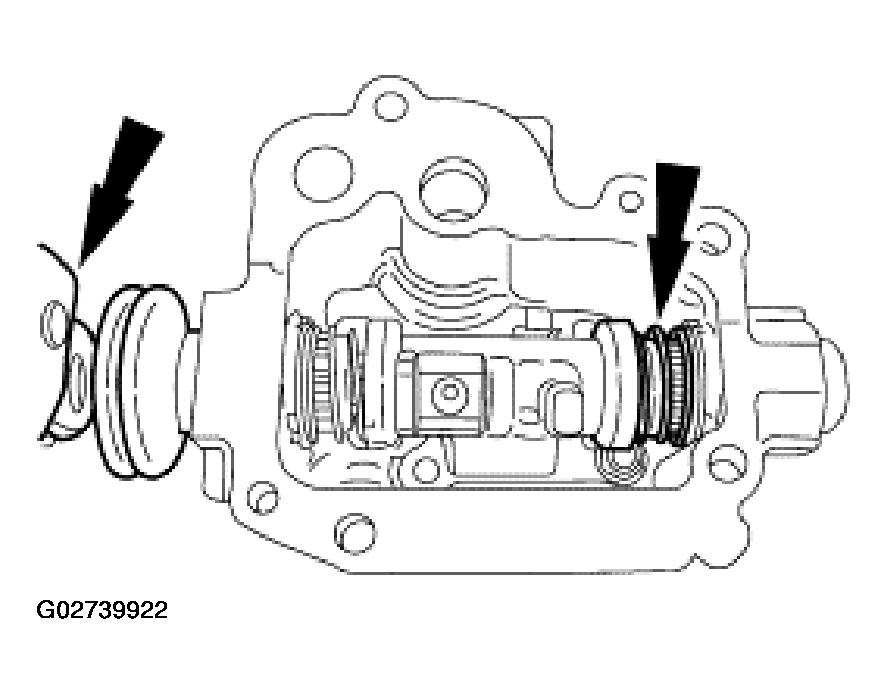

Install the remaining spring assembly and fully install the shift rod.

Fig 5: Installing Remaining Spring Assembly & Shift Rod
Courtesy of FORD MOTOR CO.

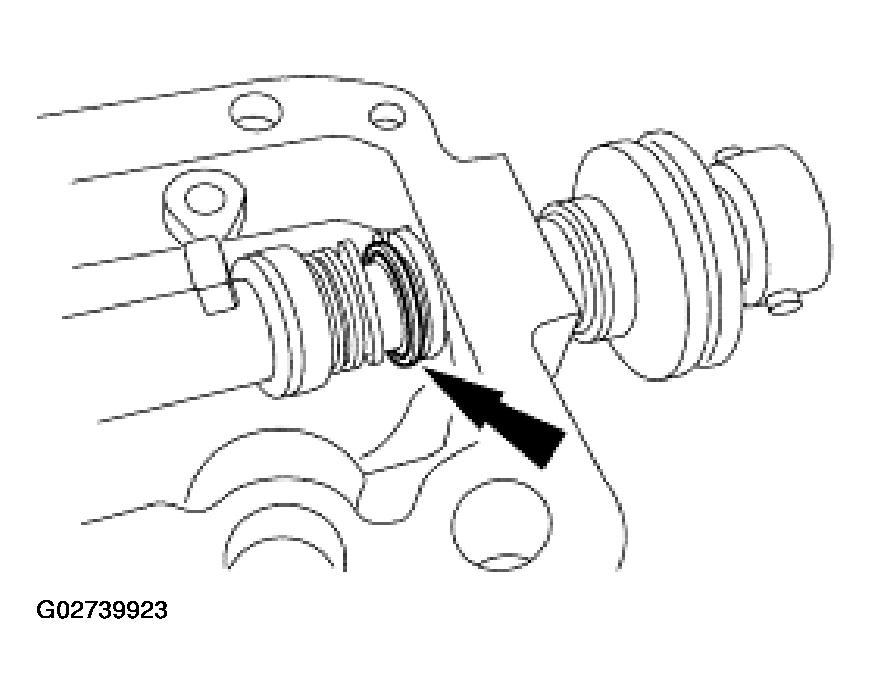

Install the circlip.

Fig 6: Installing Circlip
Courtesy of FORD MOTOR CO.

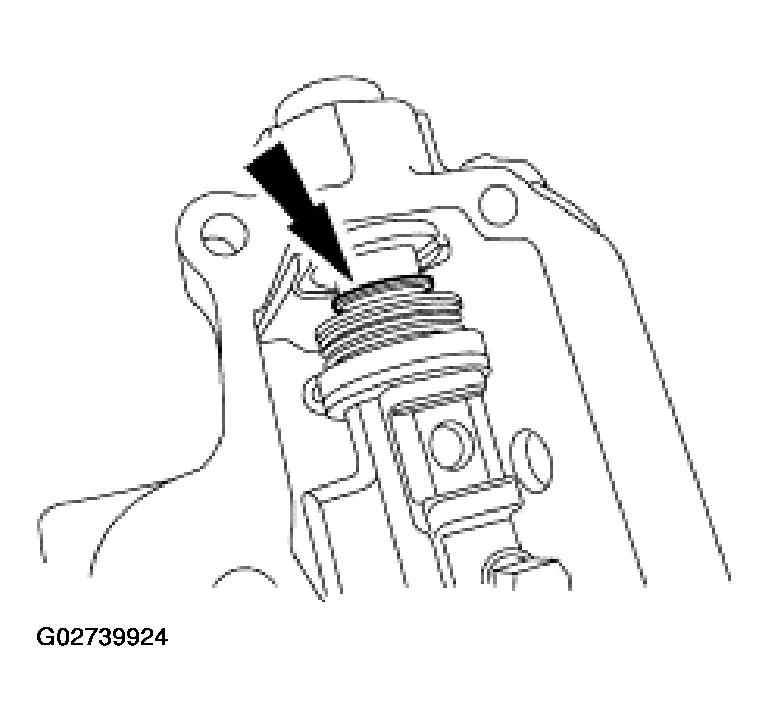

Install the circlip.

Fig 7: Installing Circlip
Courtesy of FORD MOTOR CO.

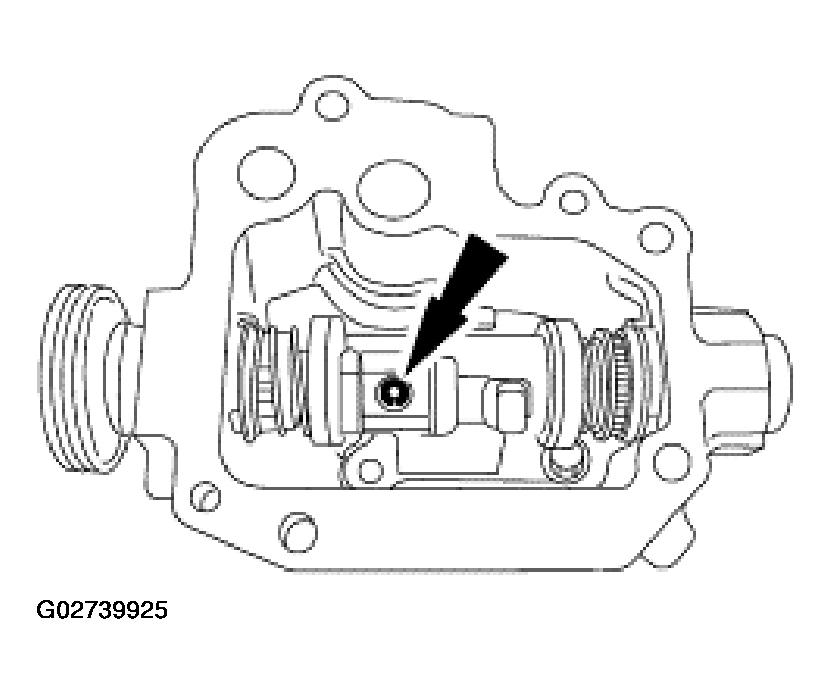

Install a new roll pin.

Fig 8: Installing Roll Pin
Courtesy of FORD MOTOR CO.

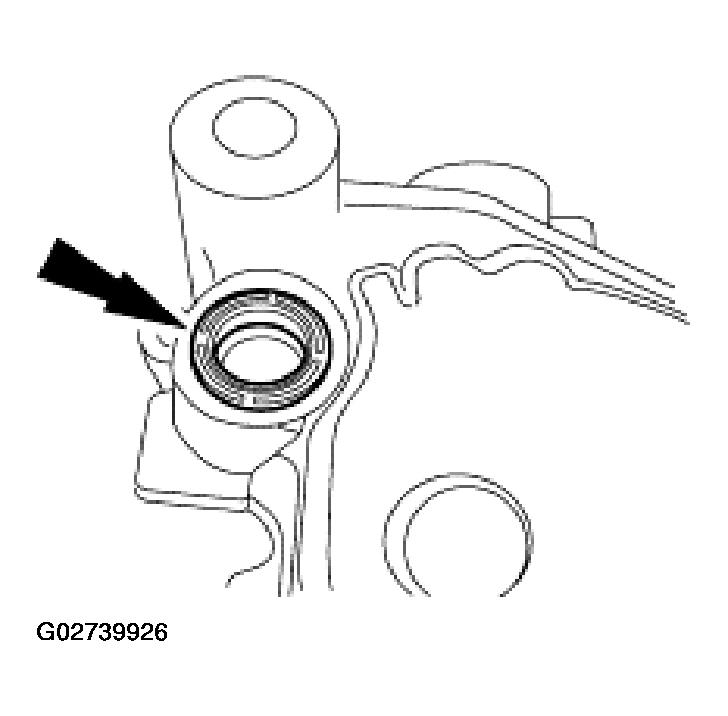

If removed, install the shift rod seal.

Fig 9: Installing Shift Rod Seal
Courtesy of FORD MOTOR CO.

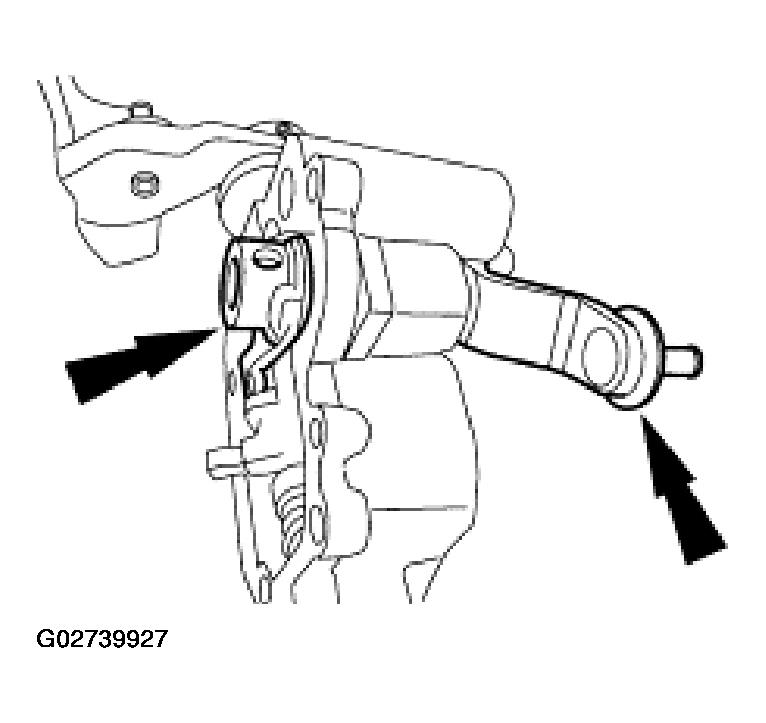

Install the shift shaft.
- Install the shift shaft.
- Position the shift pawl.
Fig 10: Installing Shift Shaft
Courtesy of FORD MOTOR CO.

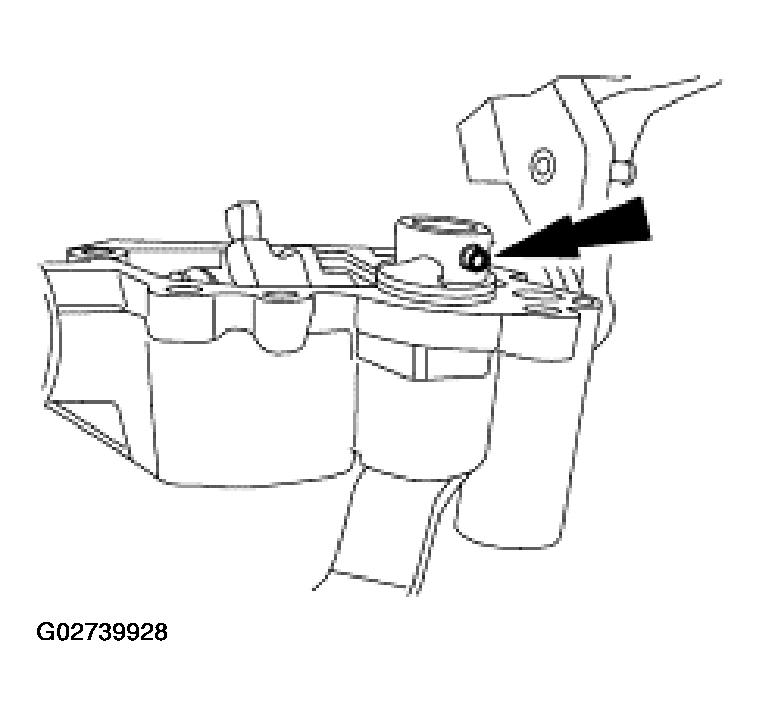

Install the new roll pin.

Fig 11: Installing Roll Pin
Courtesy of FORD MOTOR CO.
