Shift Control Housing: Disassembly

Remove and discard the roll pins.

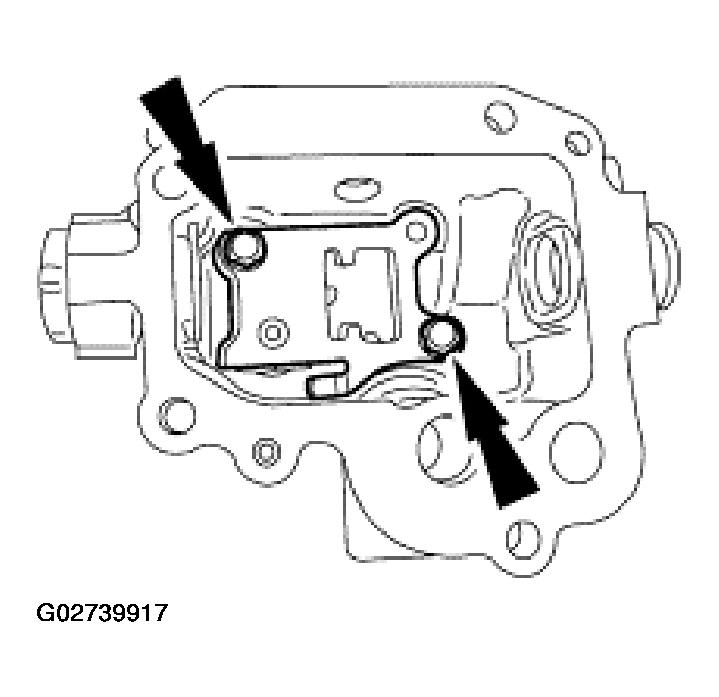

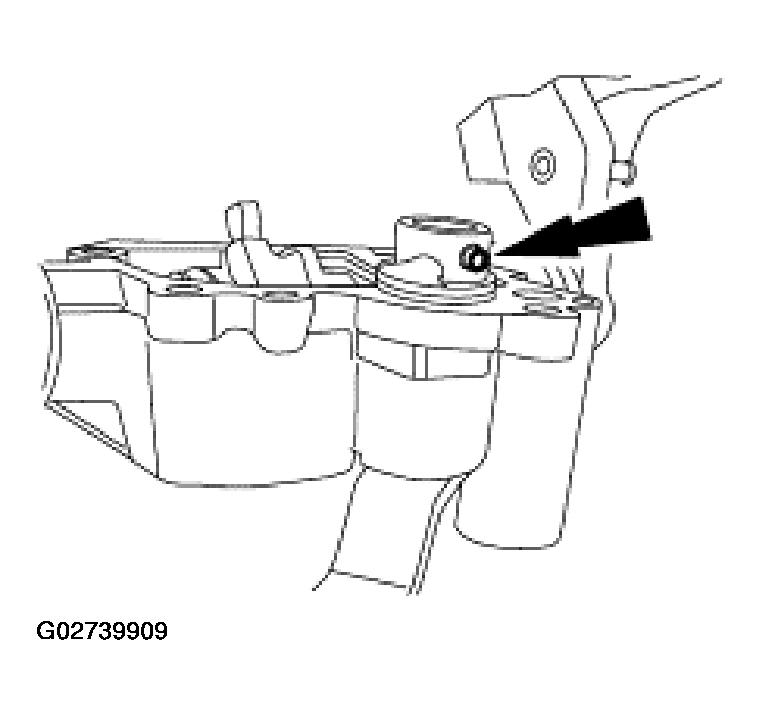

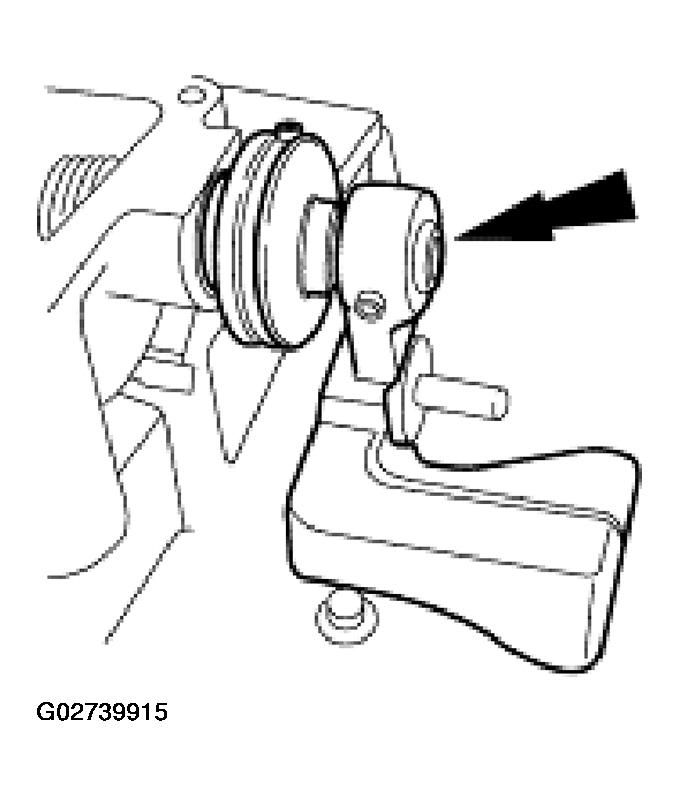

Fig 1: Locating Roll Pins
Courtesy of FORD MOTOR CO.
Remove the shift shaft.
- Remove the shift pawl.
- Remove the shift shaft.

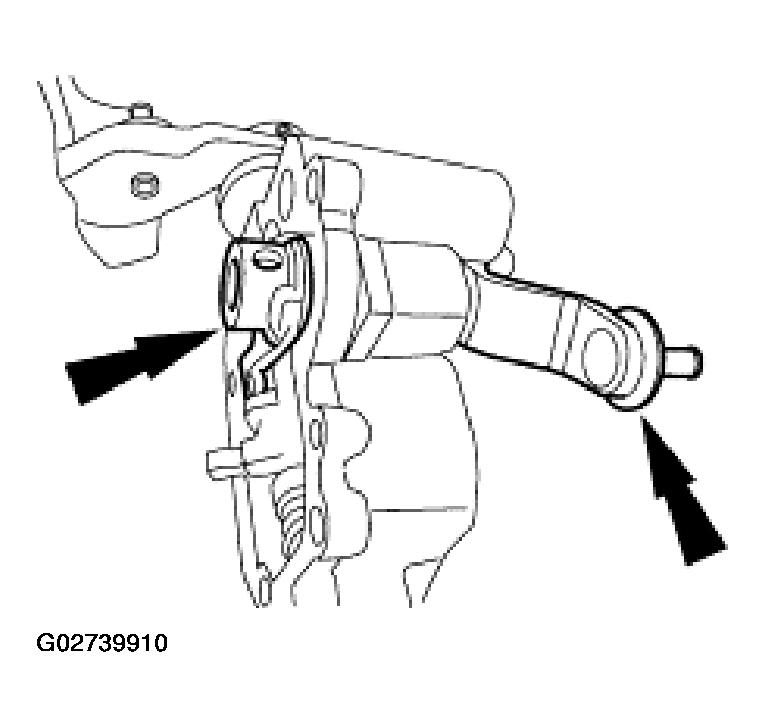

Fig 2: Removing Shift Shaft
Courtesy of FORD MOTOR CO.
If required remove the shift shaft seal.

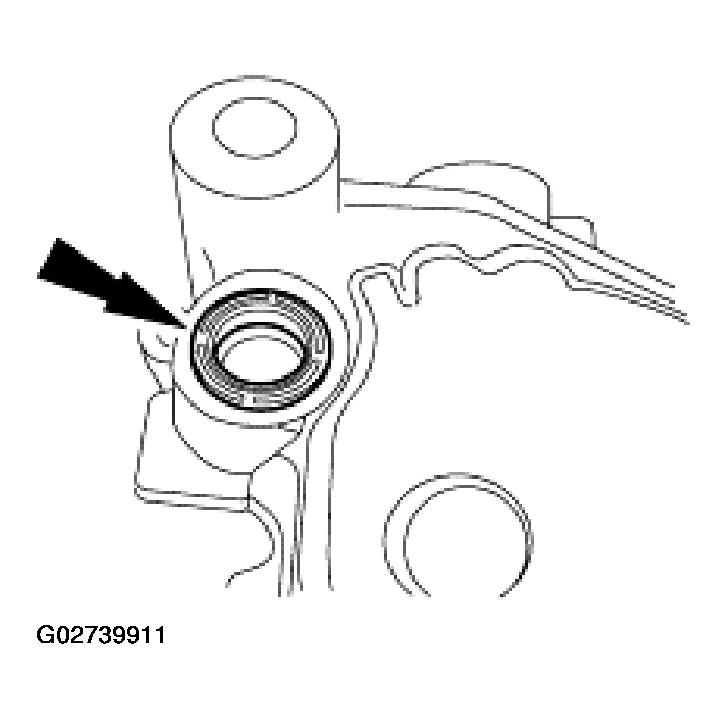

Fig 3: Removing Shift Shaft Seal
Courtesy of FORD MOTOR CO.

NOTE: Place the shift cam index pin in the small gate towards the reverse shifter lever.

NOTE: The roll pin will not remove completely and will be retained in the shift cam and must be bottomed out on the shifter housing.

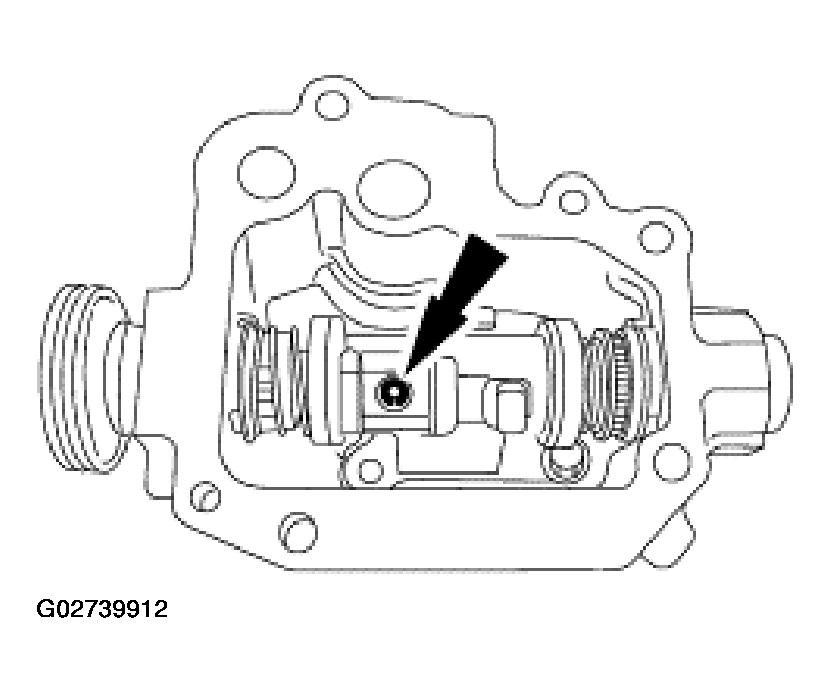

Fig 4: Locating Roll Pin

Courtesy of FORD MOTOR CO.

Remove the roll pin.
Pry back the spring retainer and remove the circlip.

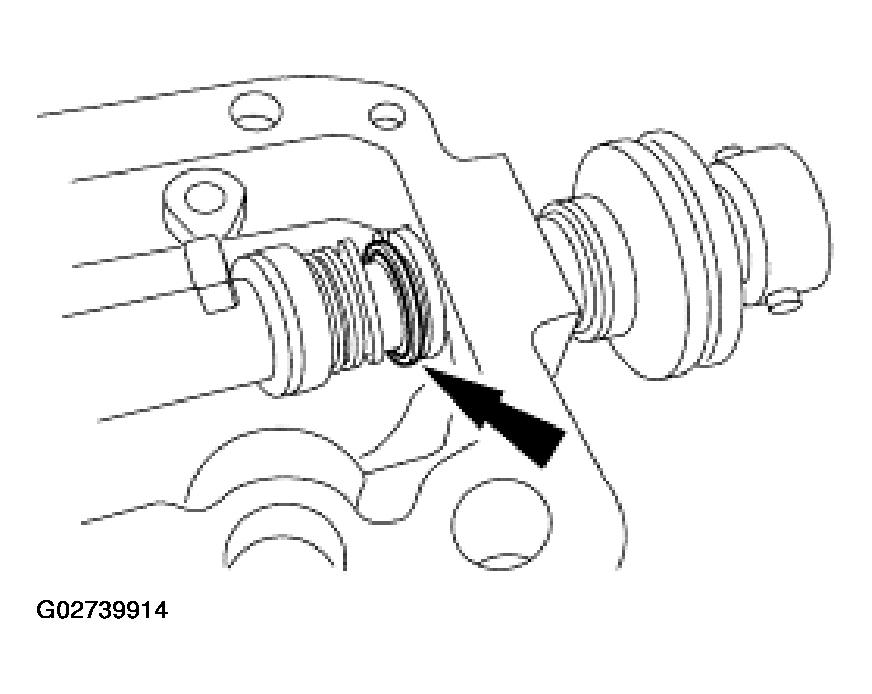

Fig 5: Locating Circlip
Courtesy of FORD MOTOR CO.
Pry back the spring retainer and remove the circlip.

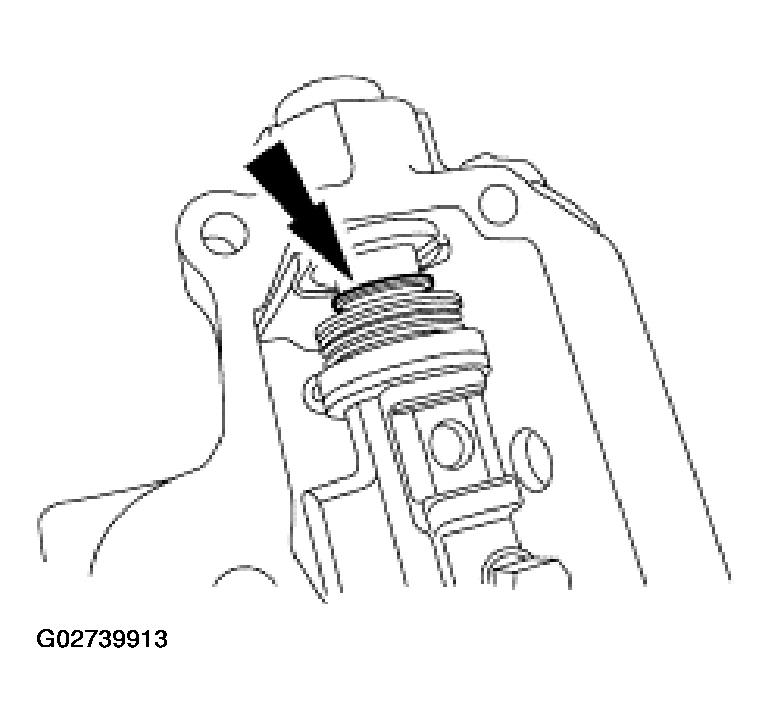

Fig 6: Locating Circlip
Courtesy of FORD MOTOR CO.

NOTE: Note the position of the shifter components for reference during assembly.

NOTE: Cover the shifter components with a shop rag to prevent loss during removal of the shift rod.

Fig 7: Removing Shift Rod

Courtesy of FORD MOTOR CO.

Remove the shift rod.
Remove the shift cam and spring assemblies.

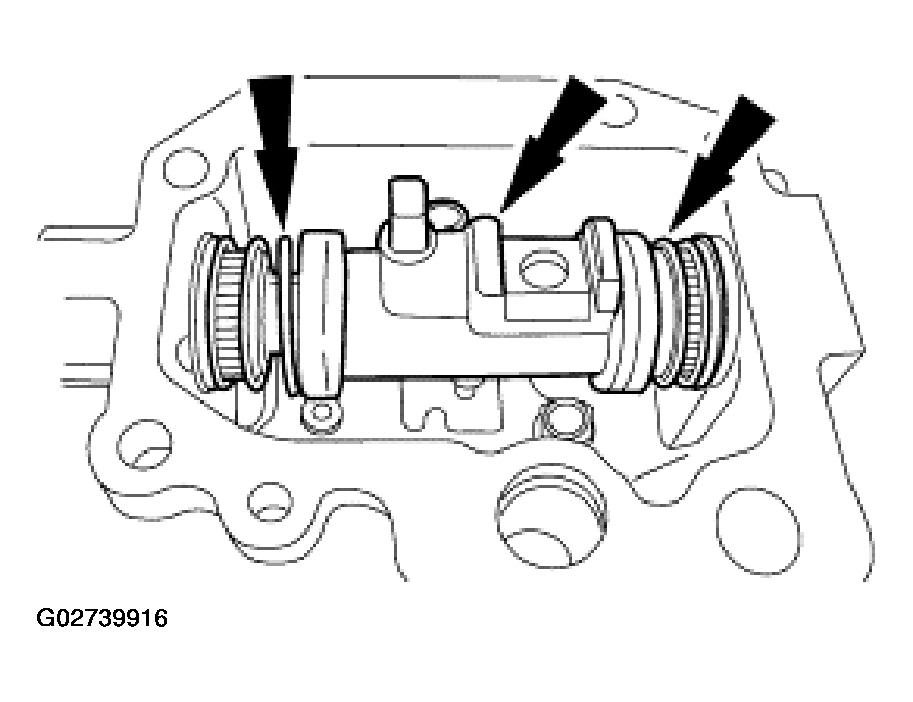

Fig 8: Removing Shift Cam And Spring Assemblies
Courtesy of FORD MOTOR CO.
Remove the shift gate.

Fig 9: Removing Shift Gate
Courtesy of FORD MOTOR CO.
