Pinpoint Tests

PINPOINT TEST A: NO COMMUNICATION WITH THE GENERIC ELECTRONIC MODULE (GEM)

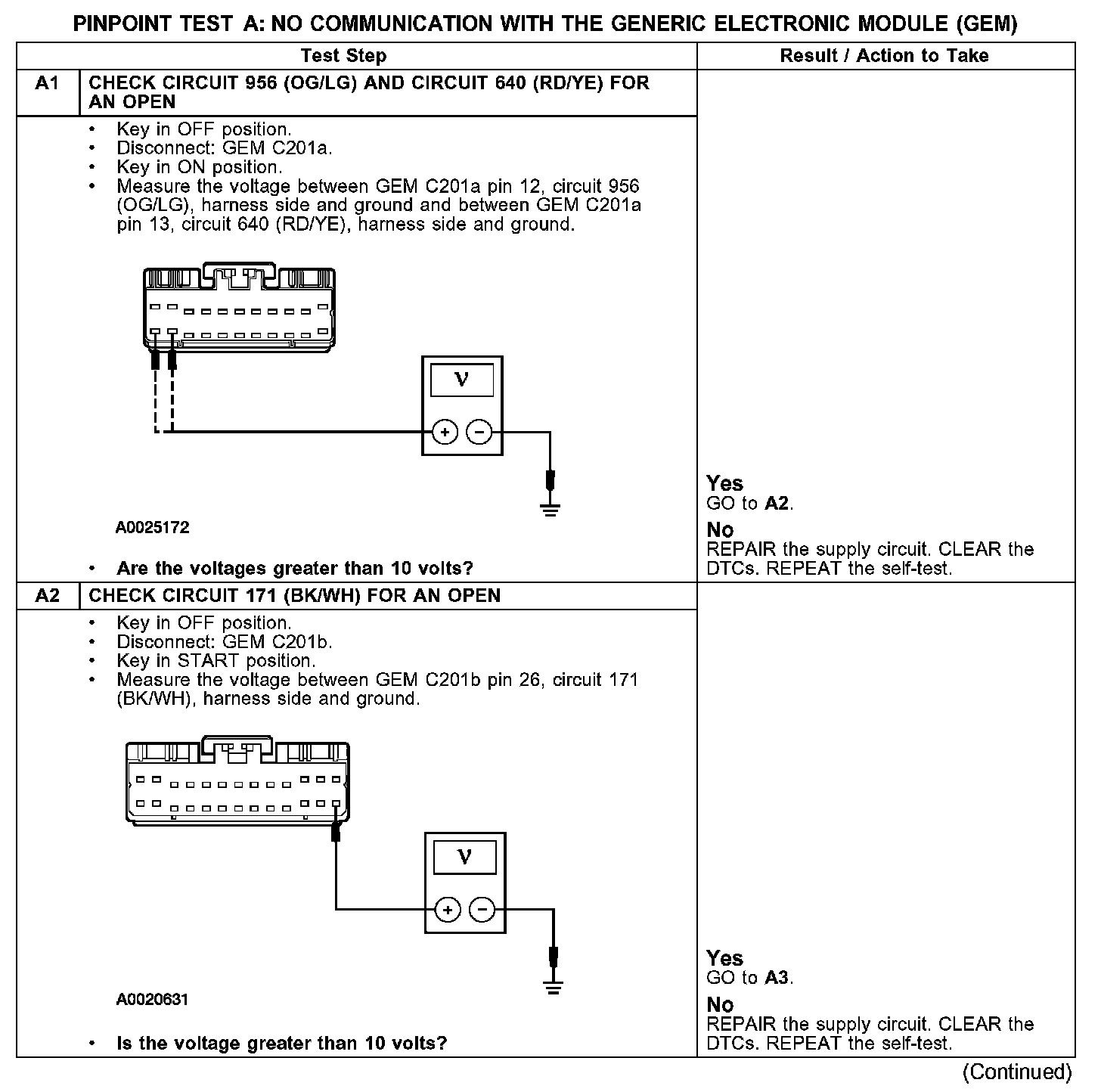

Test A1-A2:

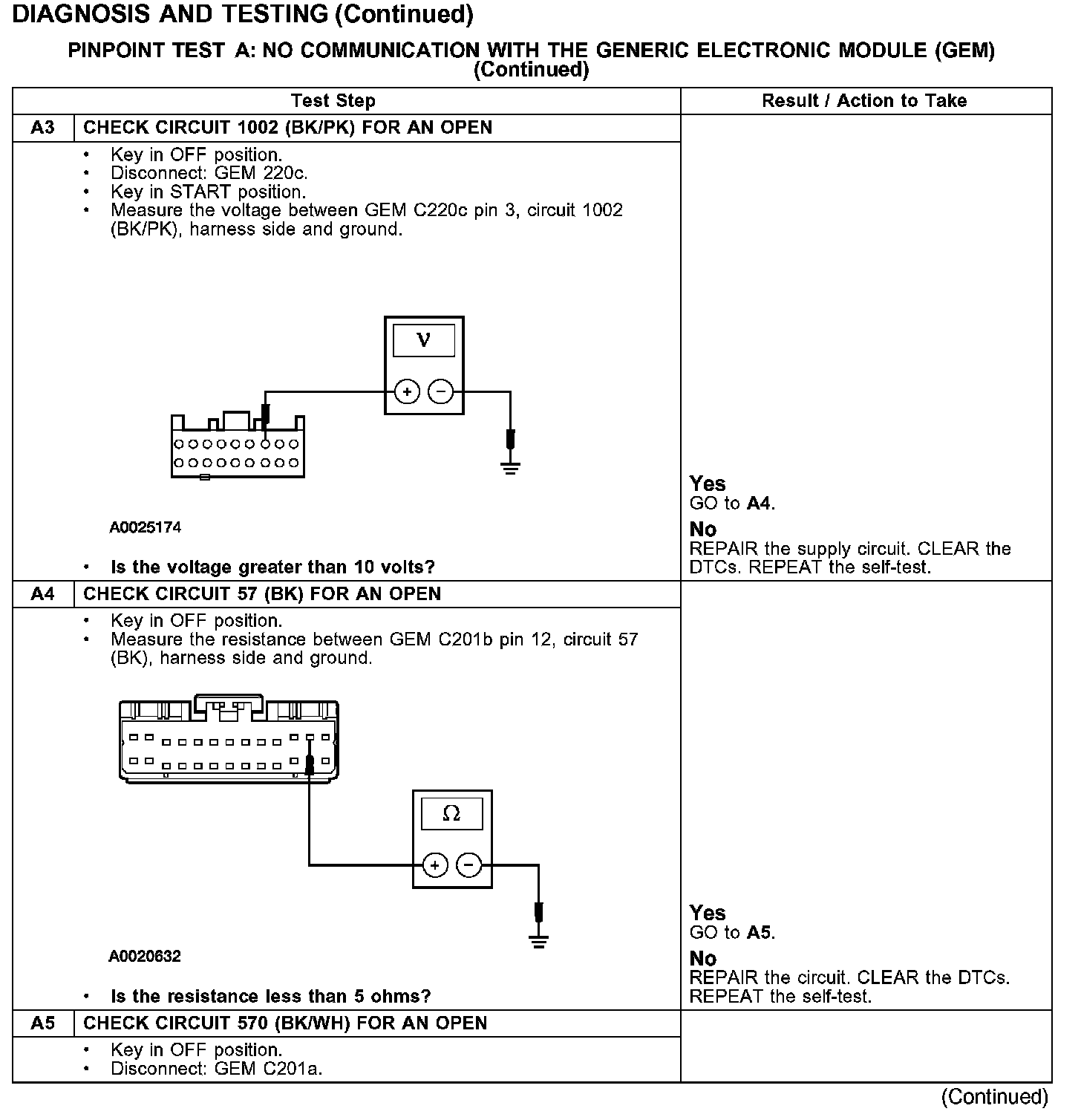

Test A3-A5:

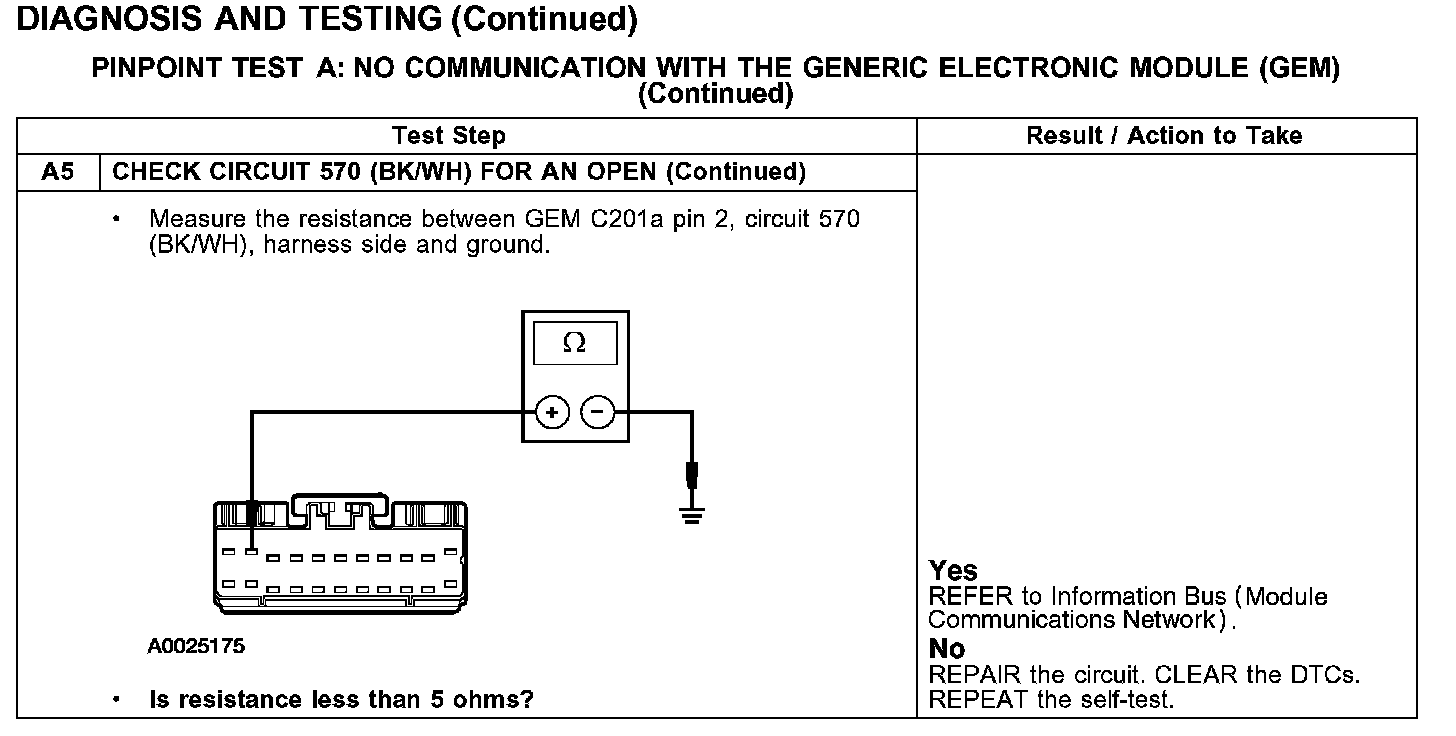

Test A5 Continued:
