Test E

PINPOINT TEST E: THE POWERTRAIN CONTROL MODULE (PCM) DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

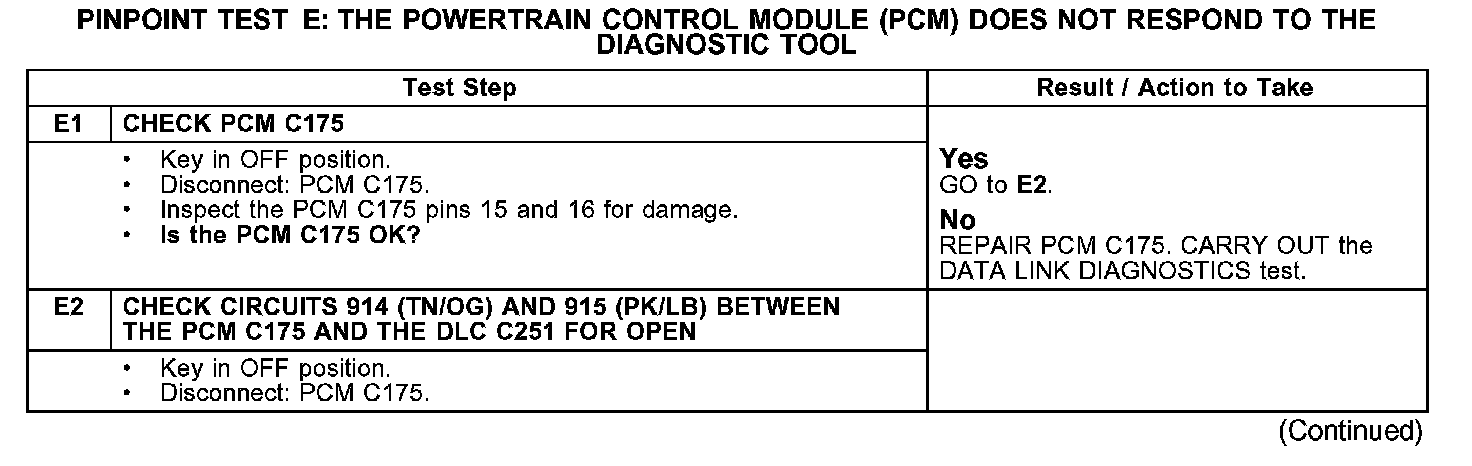

Test E1-E2:

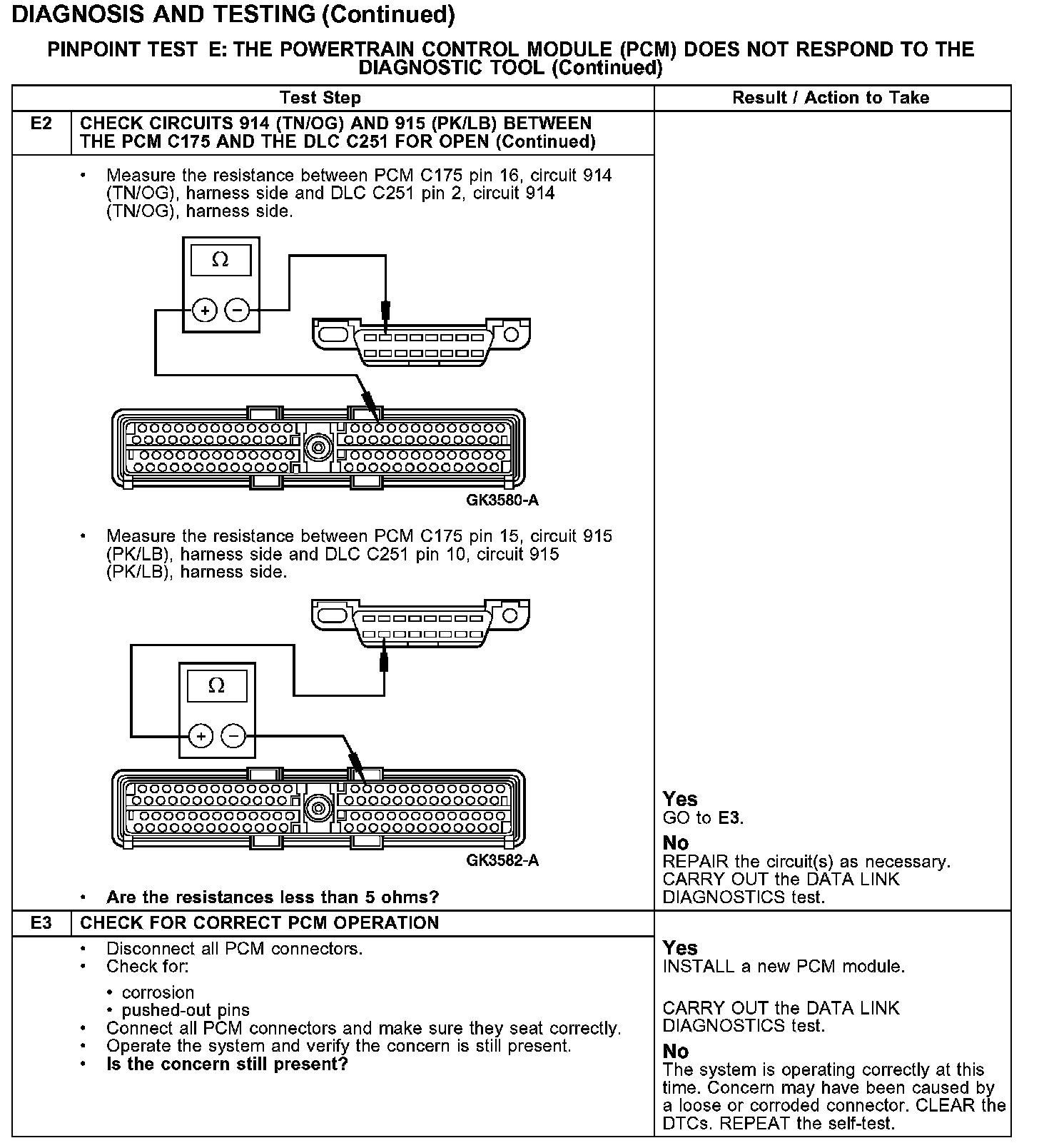

Test E2-E3:
