Window adjust switch

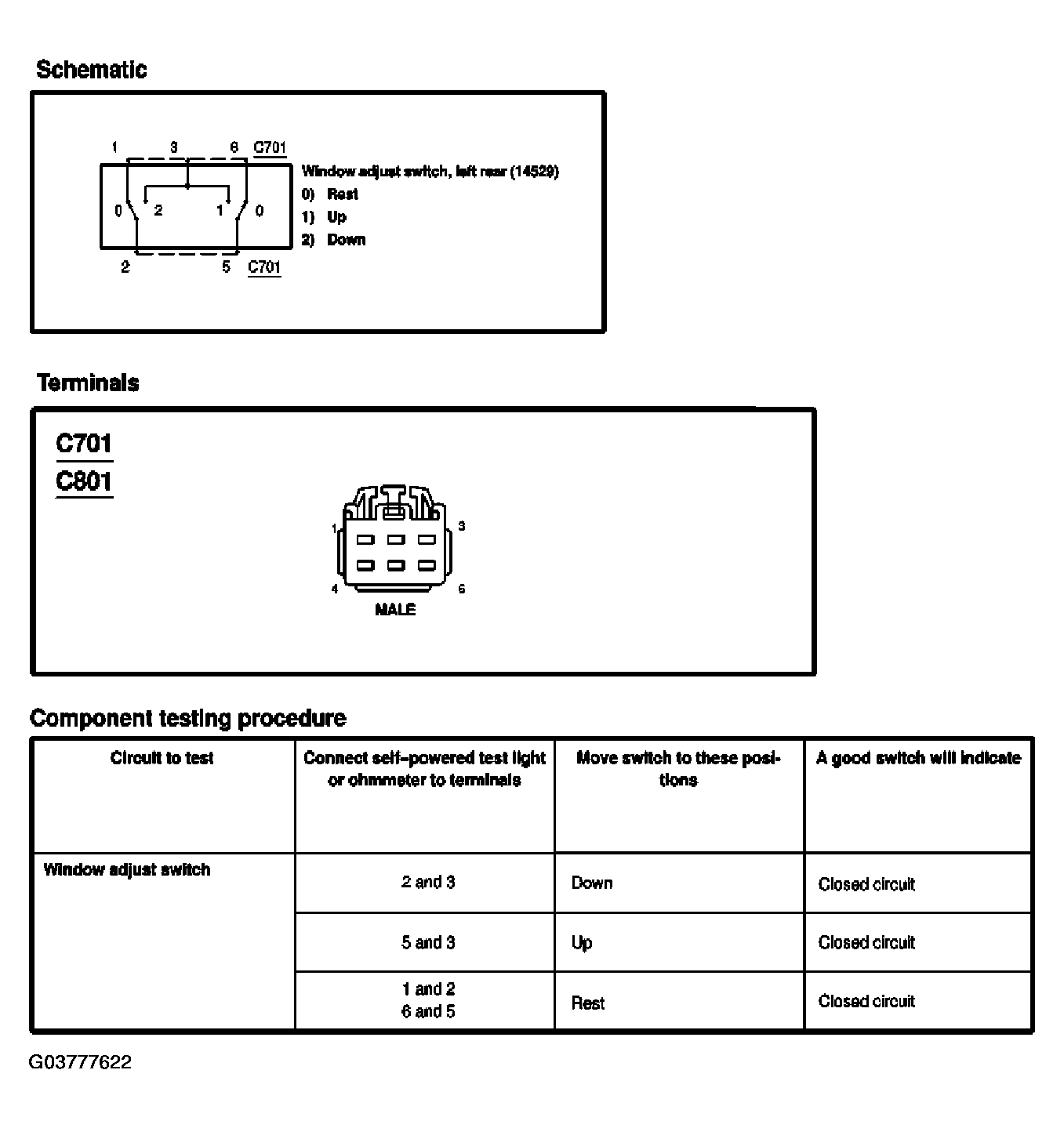

Fig 1: Testing Window Switch
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
