Steering Column: Installation

Install the steering column and loosely install the steering column support bolt. Install and tighten the nuts to specification.

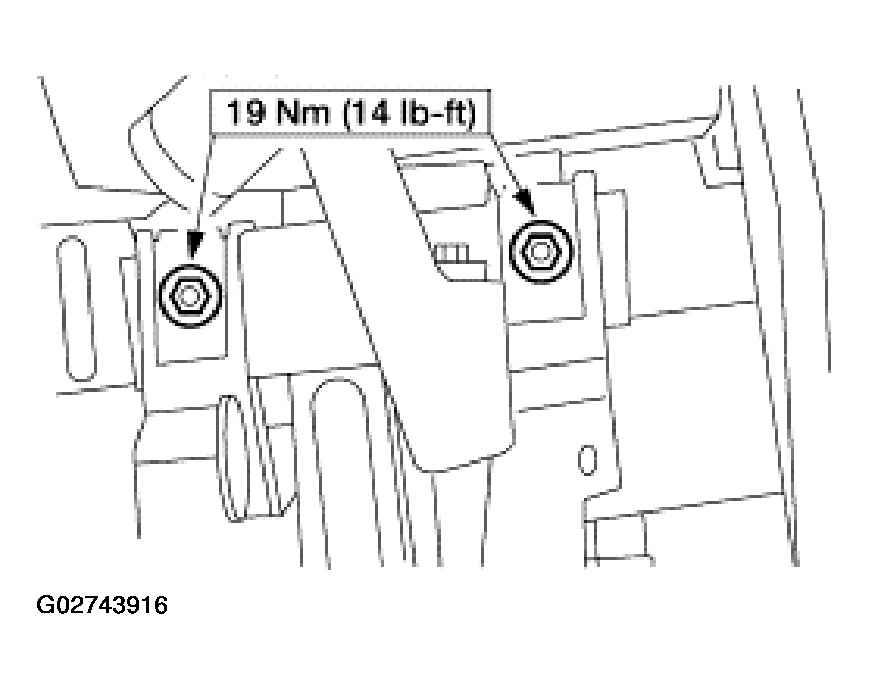

Fig 1: Installing Steering Column And Loosely Installing Steering Column Support Bolt
Courtesy of FORD MOTOR CO.
Tighten the steering column support bolt.

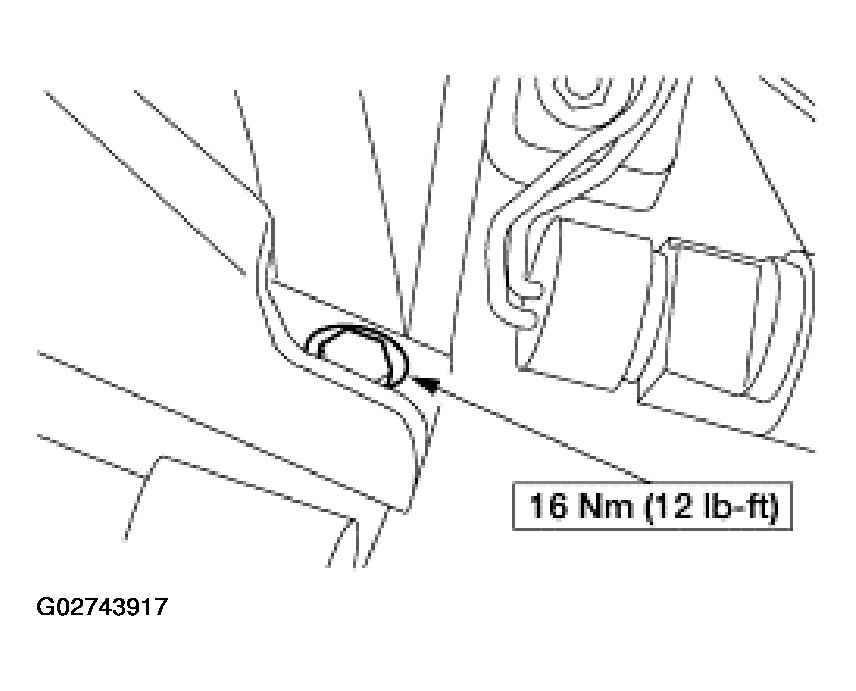

Fig 2: Tightening Steering Column Support Bolt
Courtesy of FORD MOTOR CO.
Connect the steering column shaft to the flexible coupling and install a new the pinch bolt/nut.

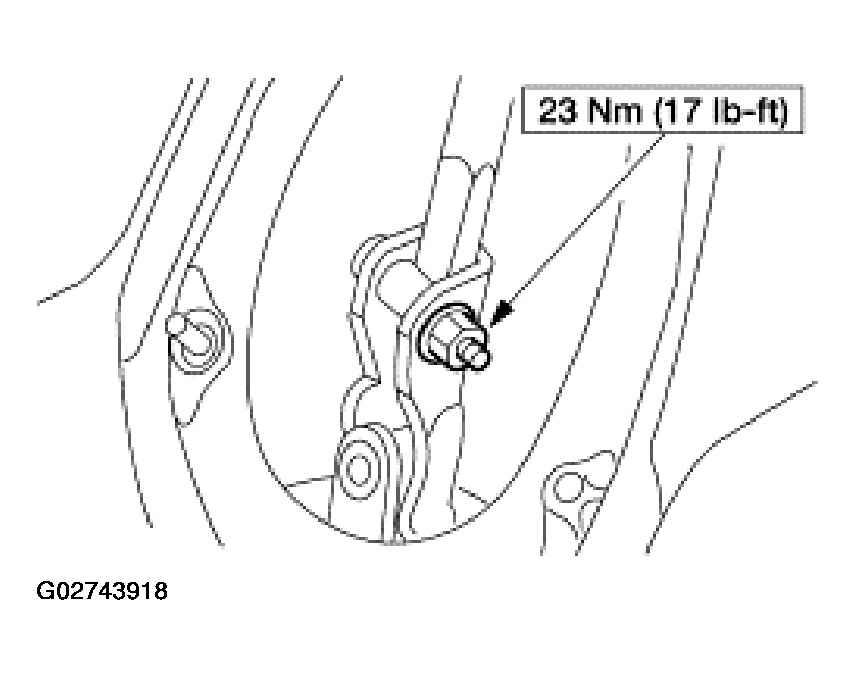

Fig 3: Connecting Steering Column Shaft To Flexible Coupling
Courtesy of FORD MOTOR CO.
Position the boot.

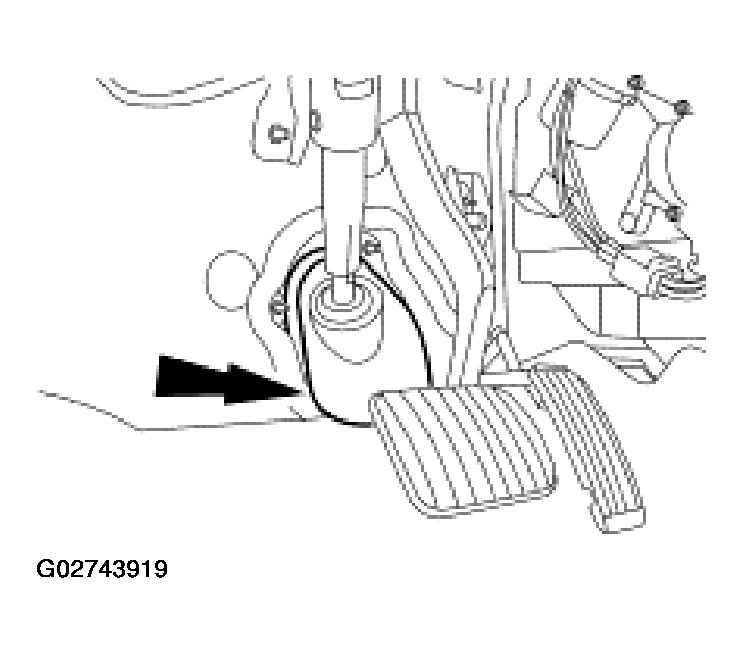

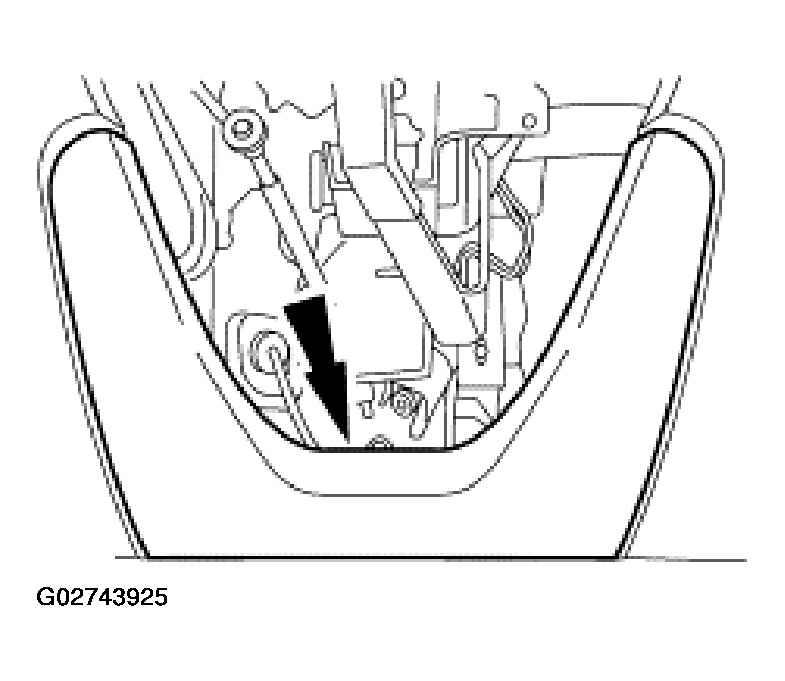

Fig 4: Identifying Position Of Boot
Courtesy of FORD MOTOR CO.
Connect the electrical connectors.

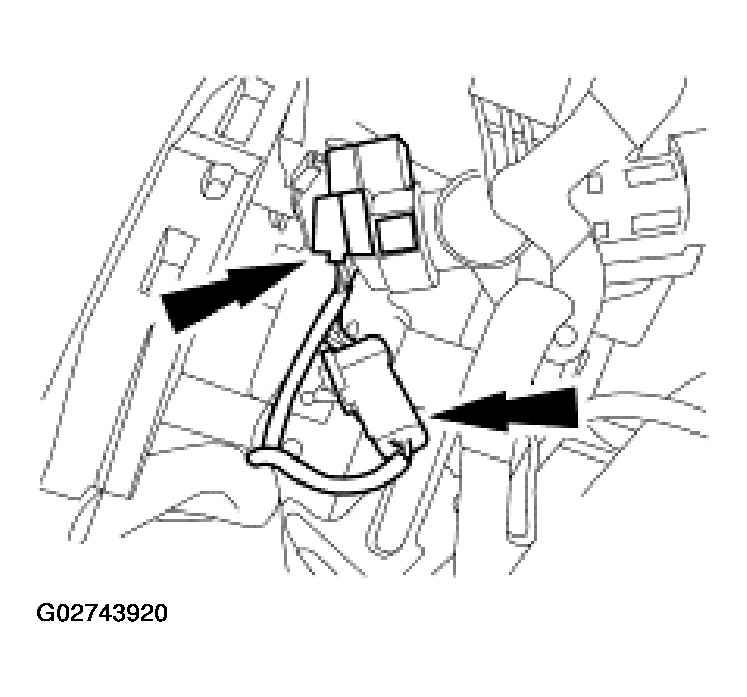

Fig 5: Connecting Electrical Connectors
Courtesy of FORD MOTOR CO.
If equipped, connect the selector lever shift cable to the lever and bracket.

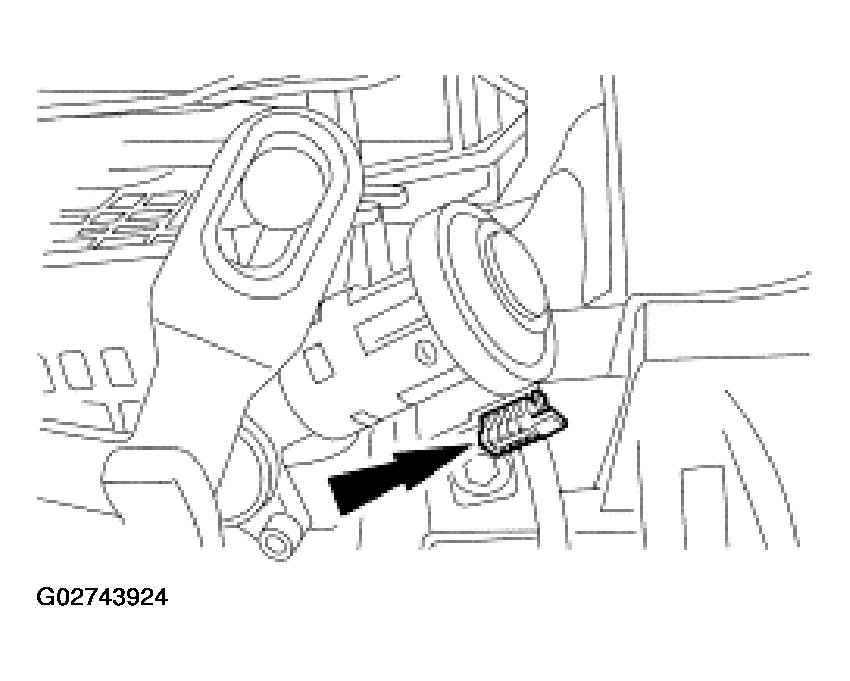

Fig 6: Connecting Selector Lever Shift Cable To Lever And Bracket
Courtesy of FORD MOTOR CO.
Connect the multifunction switch and headlamp switch electrical connectors.

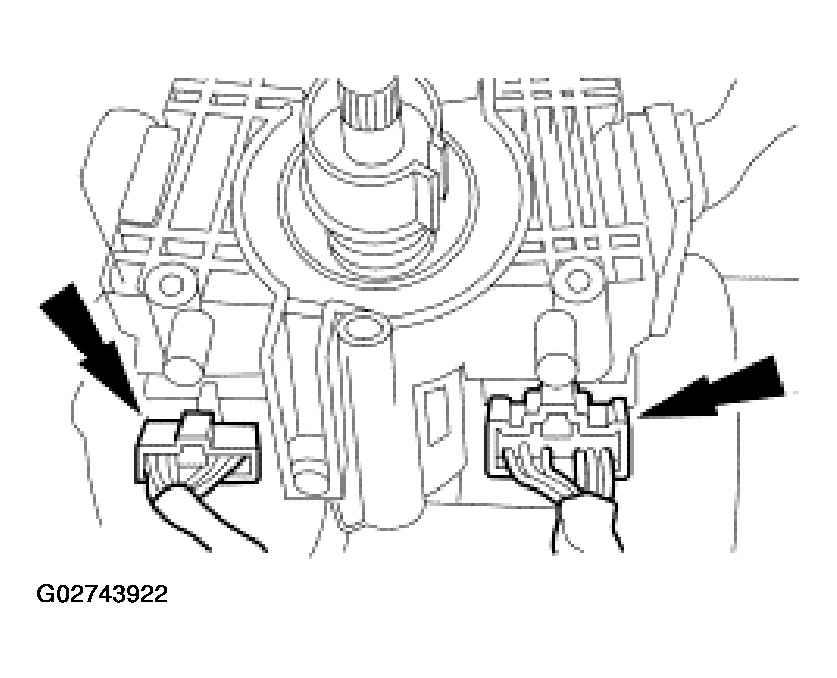

Fig 7: Connecting Multifunction Switch And Headlamp Switch Electrical Connectors
Courtesy of FORD MOTOR CO.
Secure the harness to the gearshift housing.

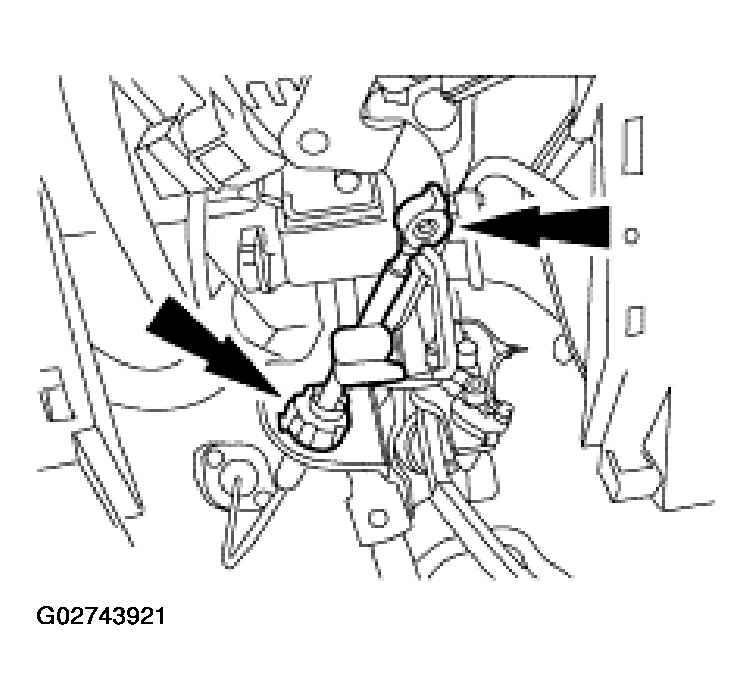

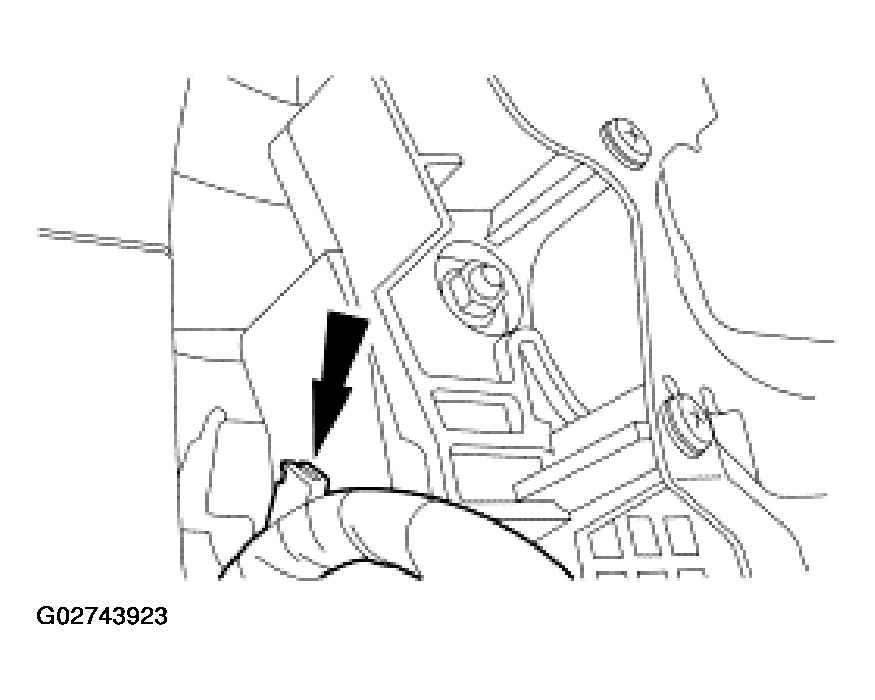

Fig 8: Secure Harness To Gearshift Housing
Courtesy of FORD MOTOR CO.
Connect the passive anti-theft system (PATS) transceiver module electrical connector and install the pin-type retainer.

Fig 9: Connecting Passive Anti-Theft System Transceiver Module Electrical Connector And Install Pin-Type Retainer
Courtesy of FORD MOTOR CO.
Install the trim panel.

Fig 10: Installing Trim Panel
Courtesy of FORD MOTOR CO.
Install the air bag sliding contact. For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
