Disassembled Views

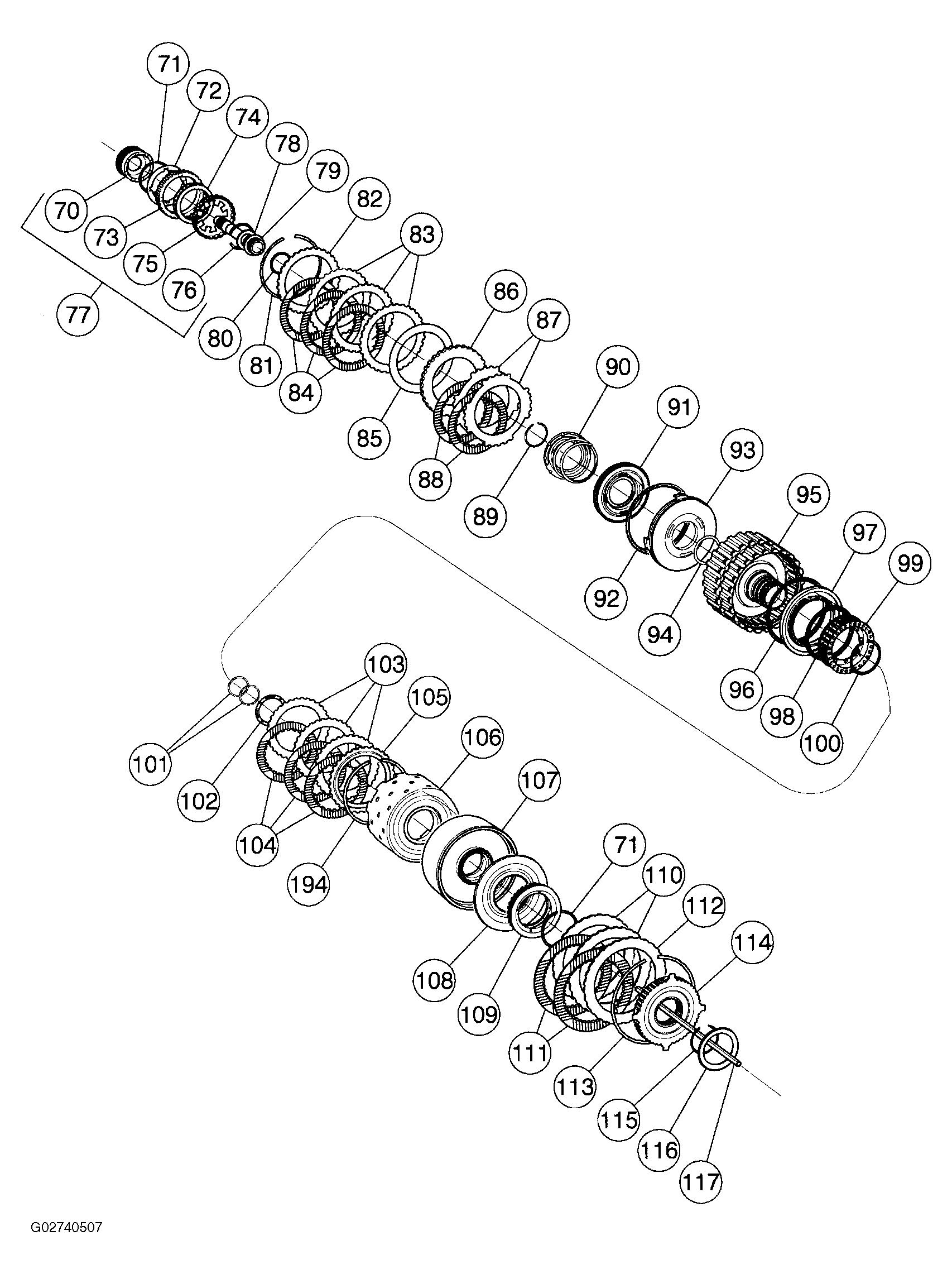

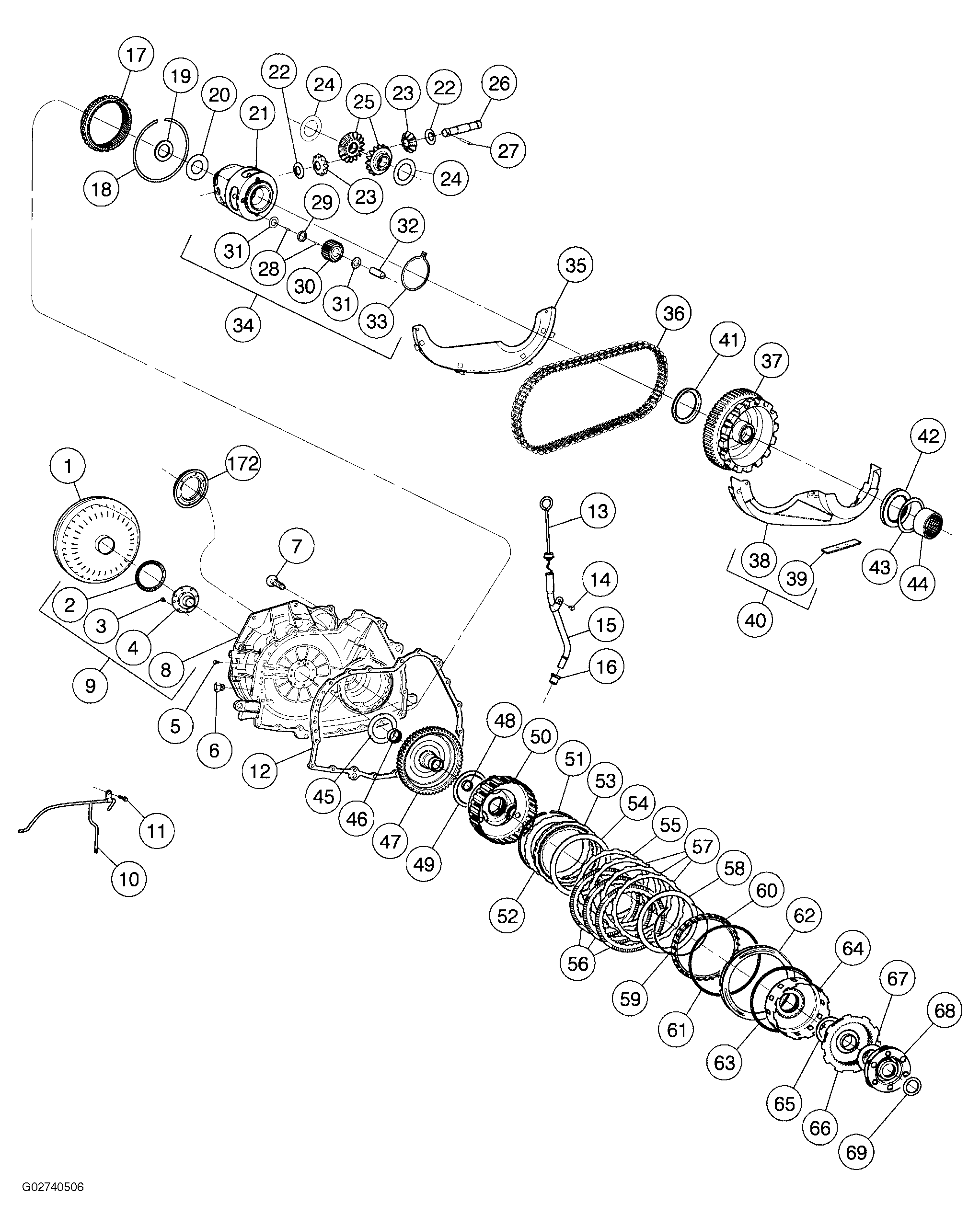

Fig 1: Disassembling View Of Automatic Transaxle/Transmission (1 Of 8)

Courtesy of FORD MOTOR CO.

Fig 2: Disassembling View Of Automatic Transaxle/Transmission (2 Of 8)

Courtesy of FORD MOTOR CO.

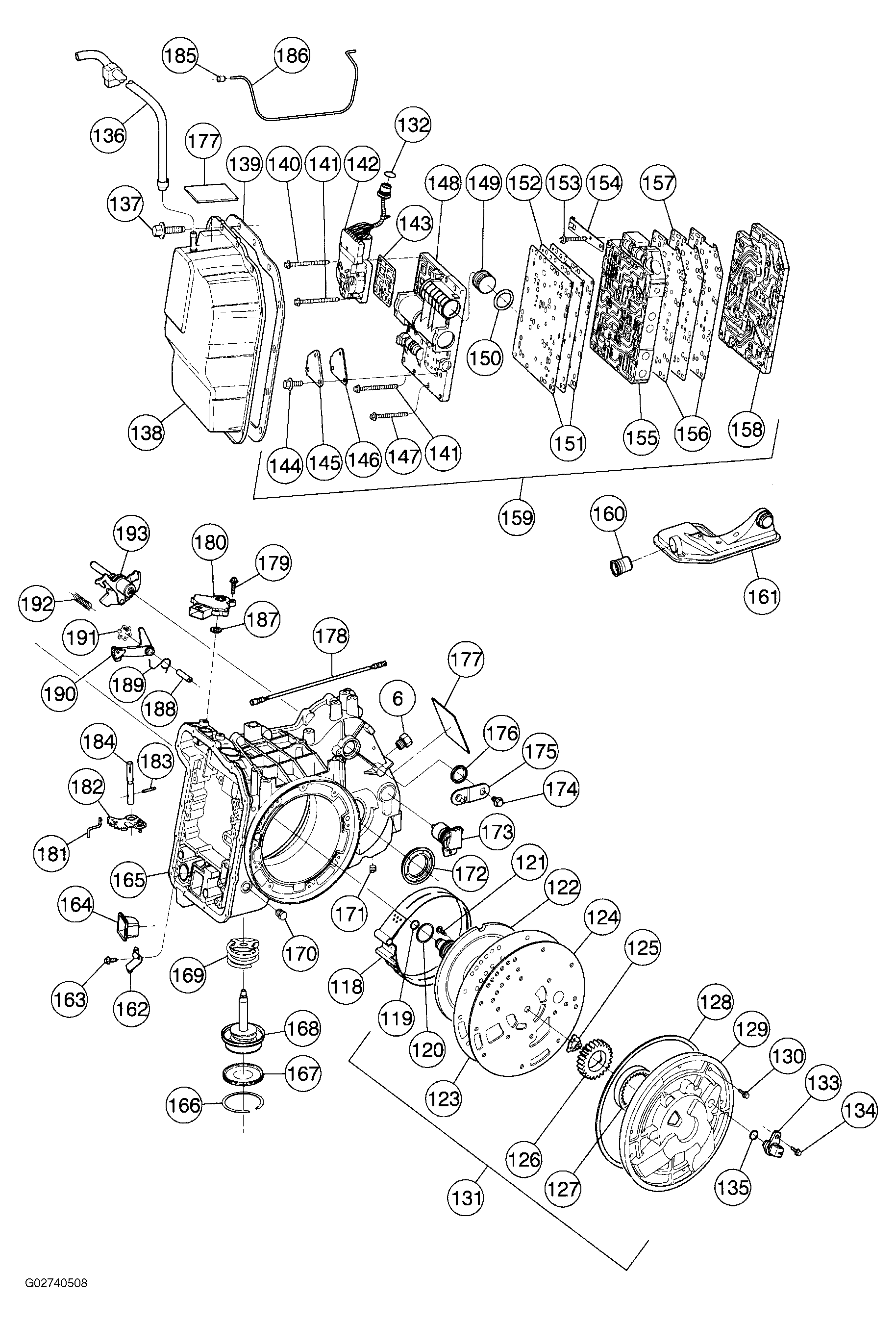

Fig 3: Disassembling View Of Automatic Transaxle/Transmission (3 Of 8)

Courtesy of FORD MOTOR CO.

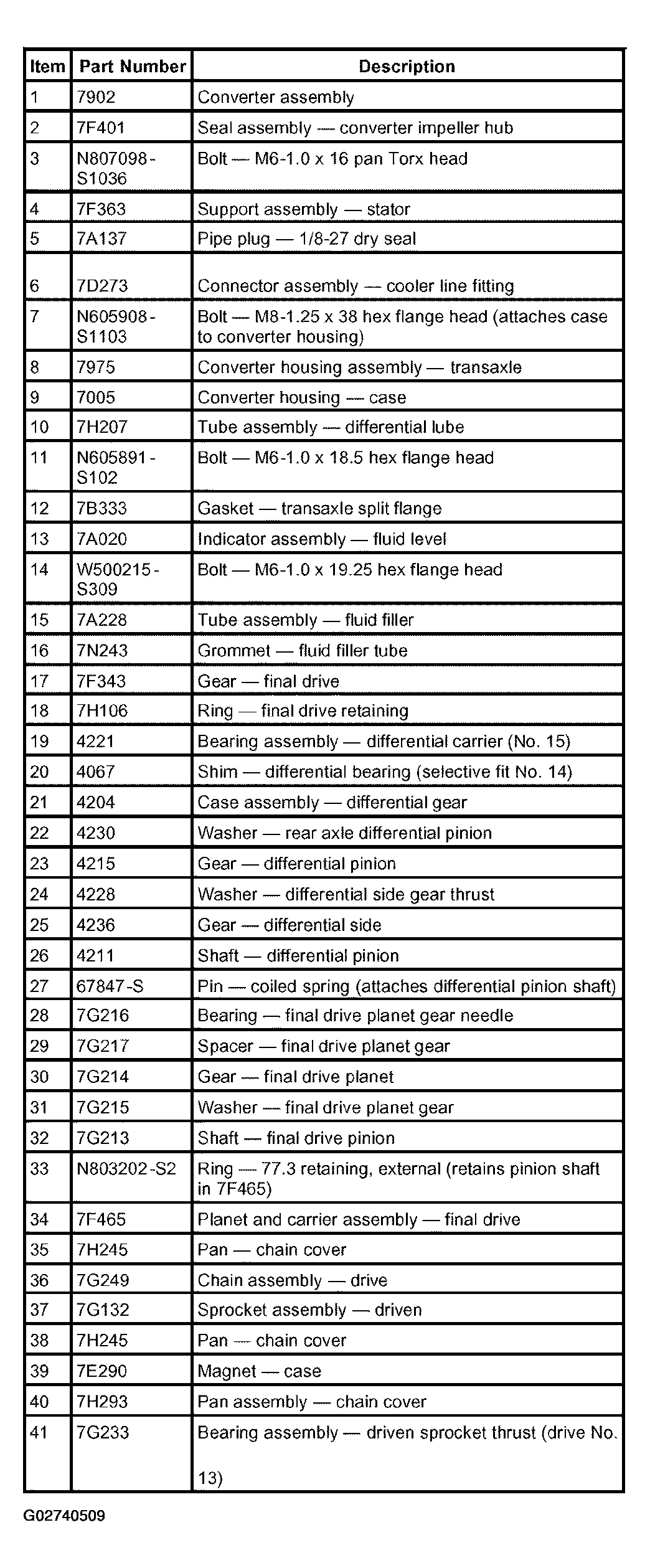

Fig 4: Disassembling View Of Automatic Transaxle/Transmission (4 Of 8)

Courtesy of FORD MOTOR CO.

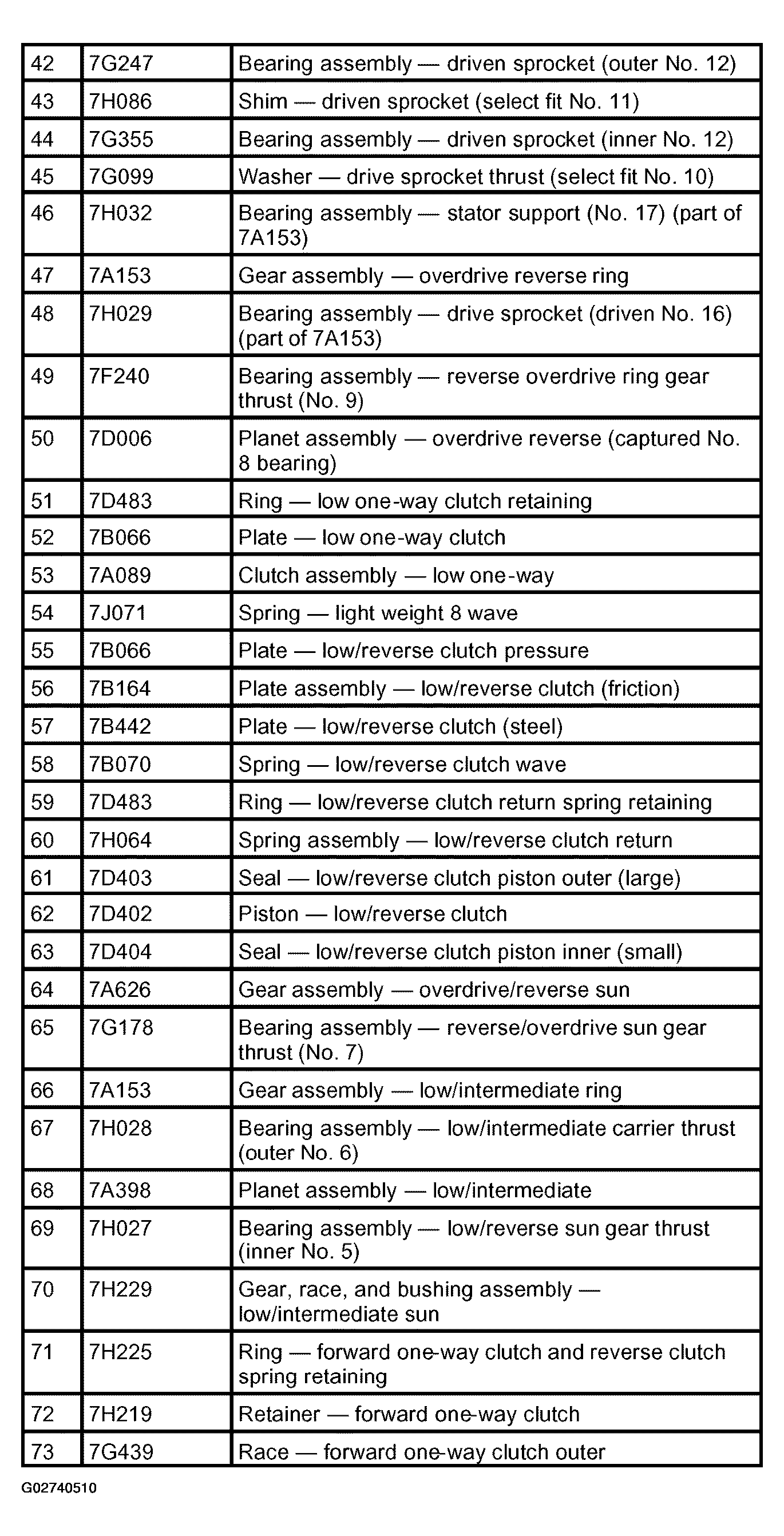

Fig 5: Disassembling View Of Automatic Transaxle/Transmission (5 Of 8)

Courtesy of FORD MOTOR CO.

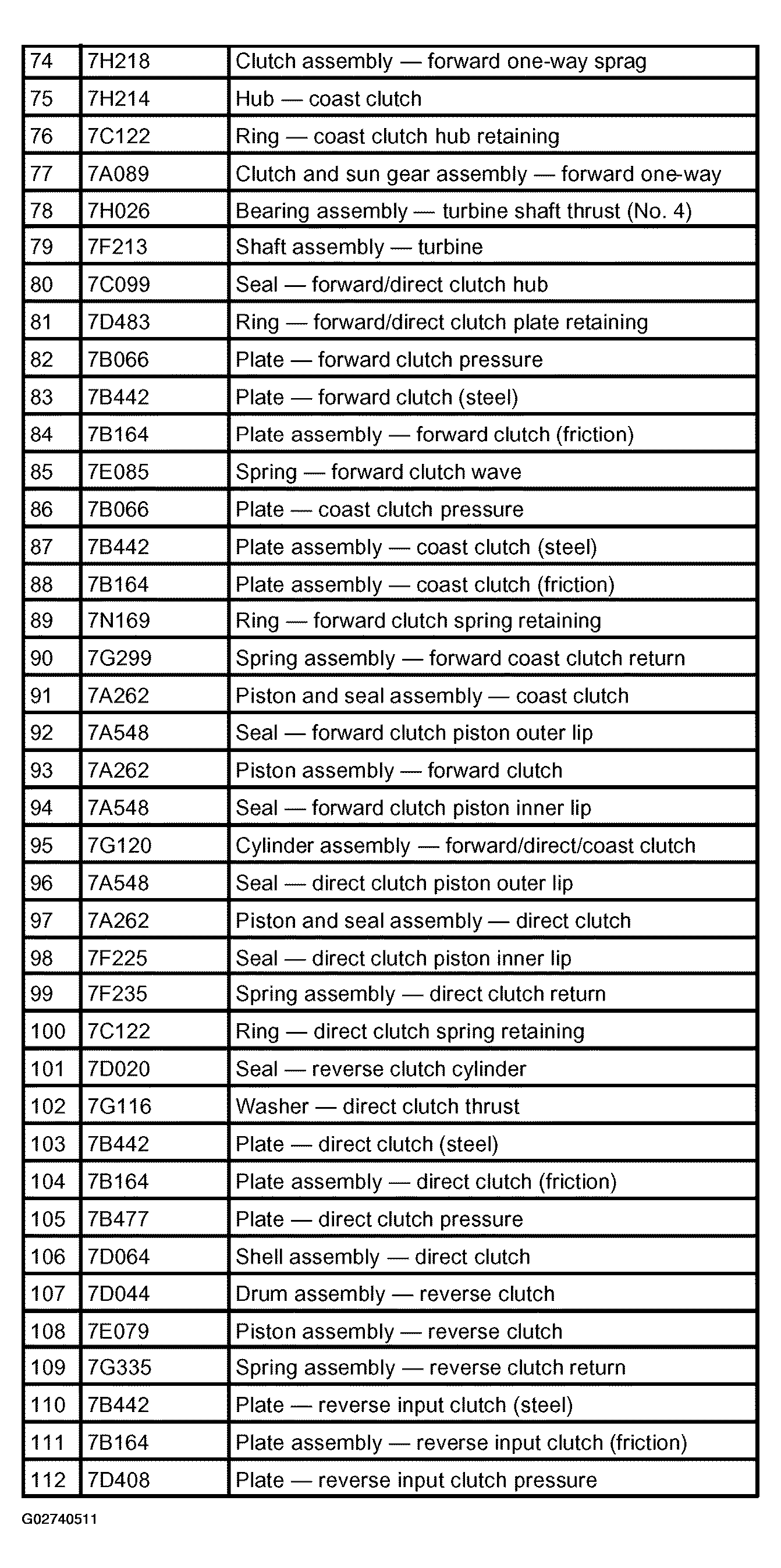

Fig 6: Disassembling View Of Automatic Transaxle/Transmission (6 Of 8)

Courtesy of FORD MOTOR CO.

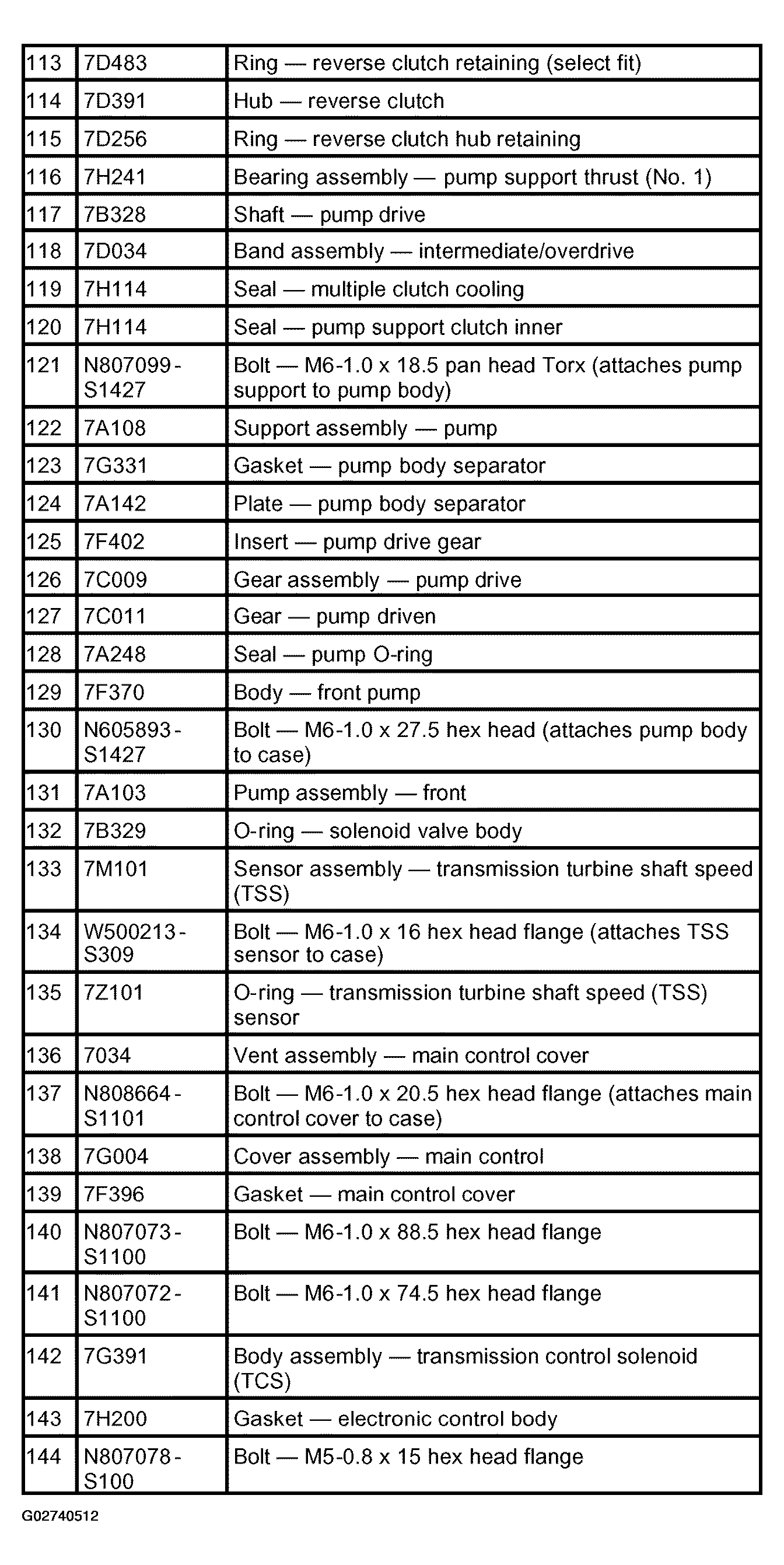

Fig 7: Disassembling View Of Automatic Transaxle/Transmission (7 Of 8)

Courtesy of FORD MOTOR CO.

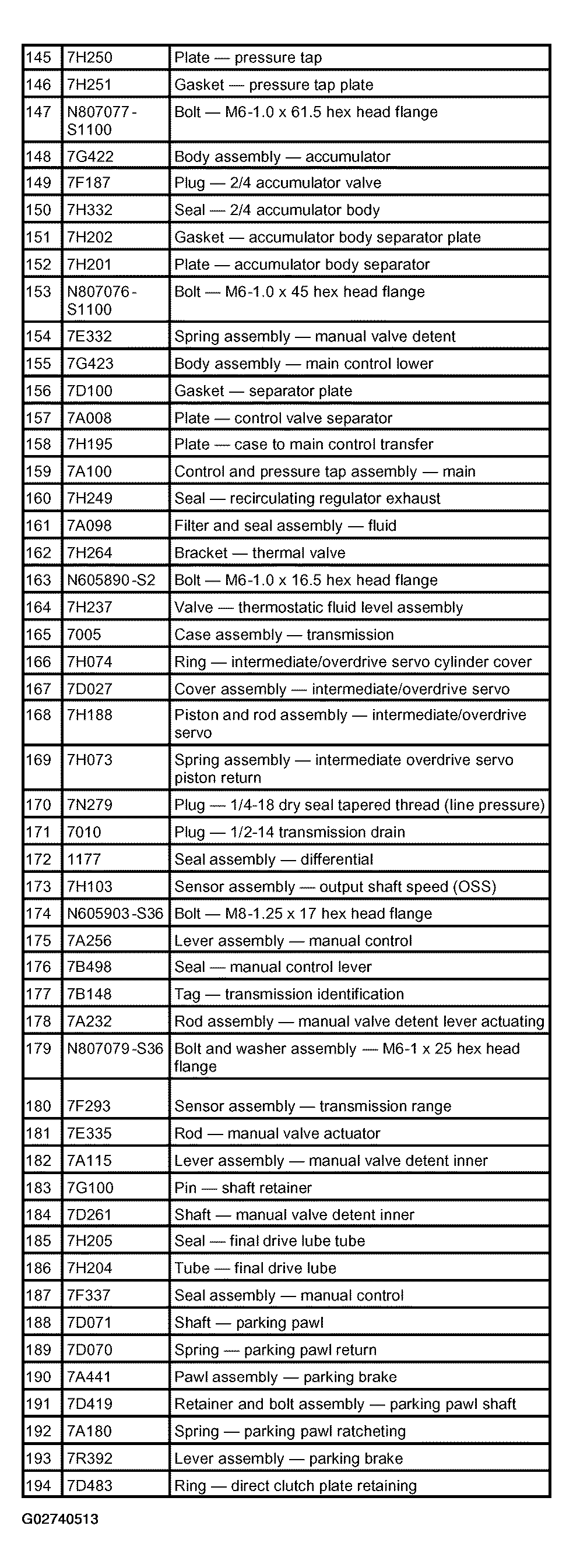

Fig 8: Disassembling View Of Automatic Transaxle/Transmission (8 Of 8)

Courtesy of FORD MOTOR CO.
