Chain Sprockets: Assembly

  1. Position the No. 16 reverse/overdrive ring gear bearing on the special tools.
    • Position the bearing with the part number facing toward the handle of the special tool.

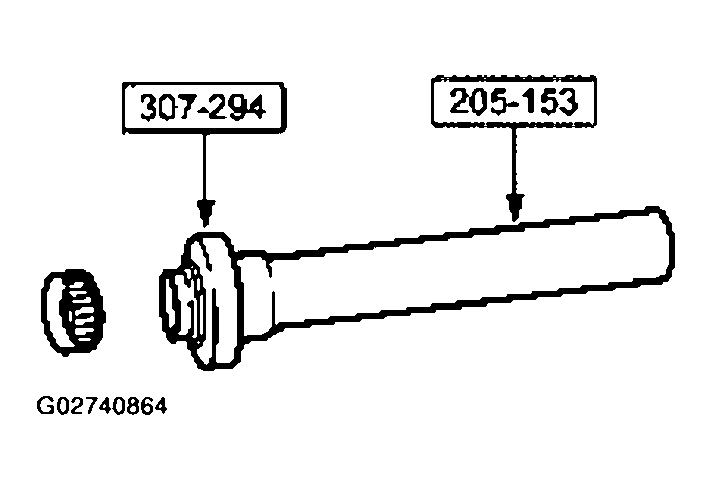

    Fig 1: Positioning No. 16 Reverse/Overdrive Ring Gear Bearing On Special Tools
    G02740864Courtesy of FORD MOTOR CO.
    2. NOTE: The identification stamping of the bearing goes to the outboard side of the reverse/overdrive ring gear.

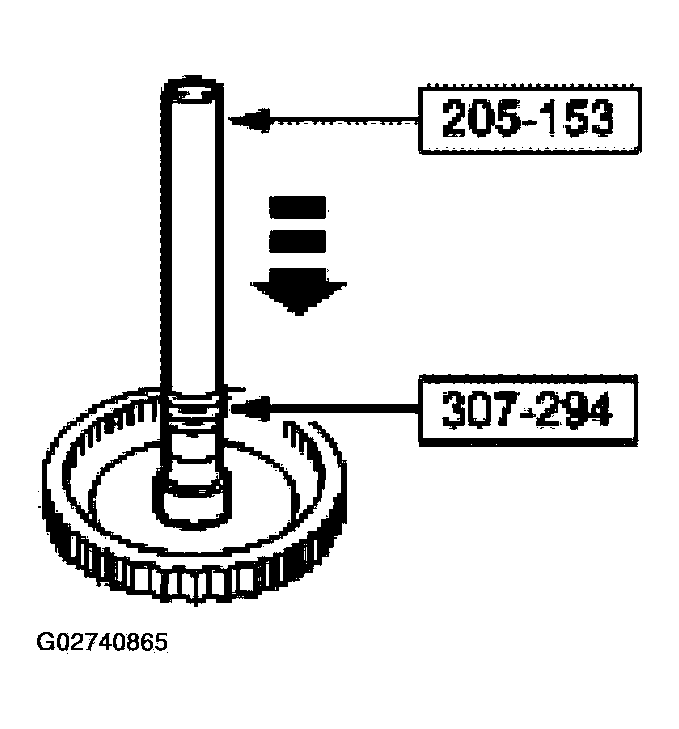

    Fig 2: Installing No. 16 Reverse/Overdrive Ring Gear Bearing
    G02740865Courtesy of FORD MOTOR CO.
  2. Using the special tools, install the No. 16 reverse/overdrive ring gear bearing.
  3. Position the No. 17 stator support bearing on the special tools.
    • Position the bearing with the part number facing toward the handle of the special tool.

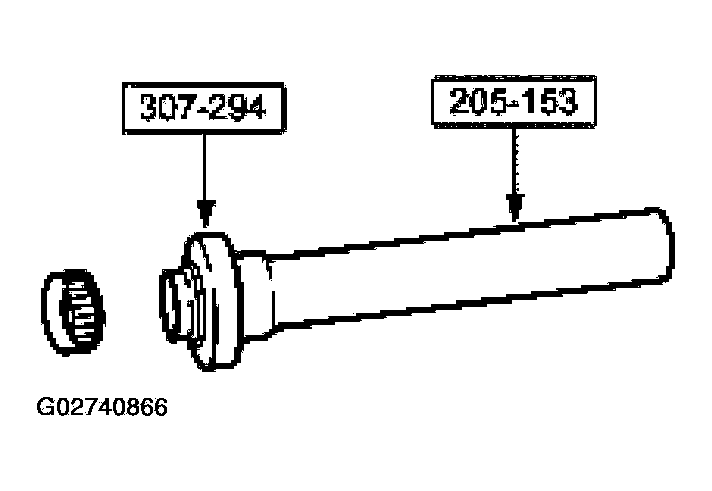

    Fig 3: Positioning No. 17 Stator Support Bearing On Special Tools
    G02740866Courtesy of FORD MOTOR CO.
    4. NOTE: The identification stamping of the bearing goes to the outboard side of the reverse/overdrive ring gear.

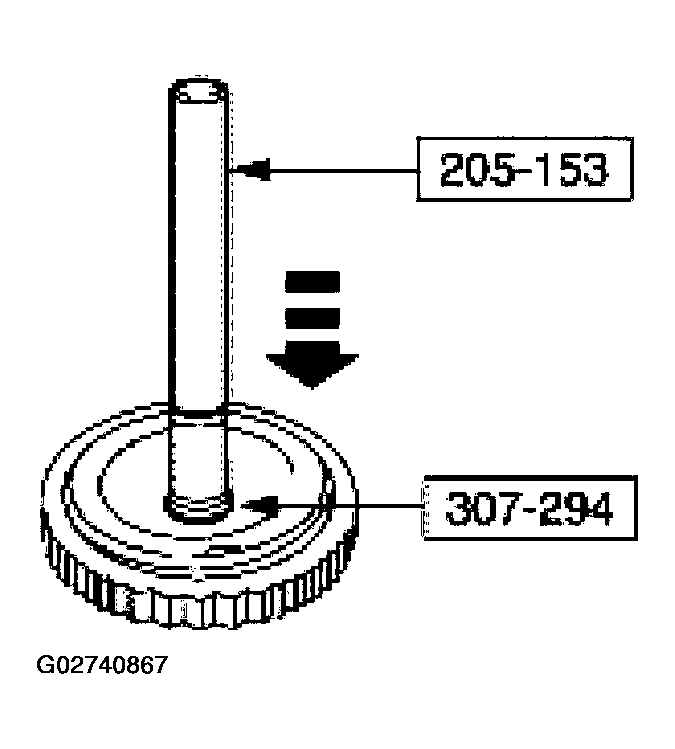

    Fig 4: Installing No. 17 Stator Support Bearing Into Stator Support Sprocket
    G02740867Courtesy of FORD MOTOR CO.
  4. Using the special tools, install the No. 17 stator support bearing into the stator support sprocket.
