Main Control Valve Body: Disassembly

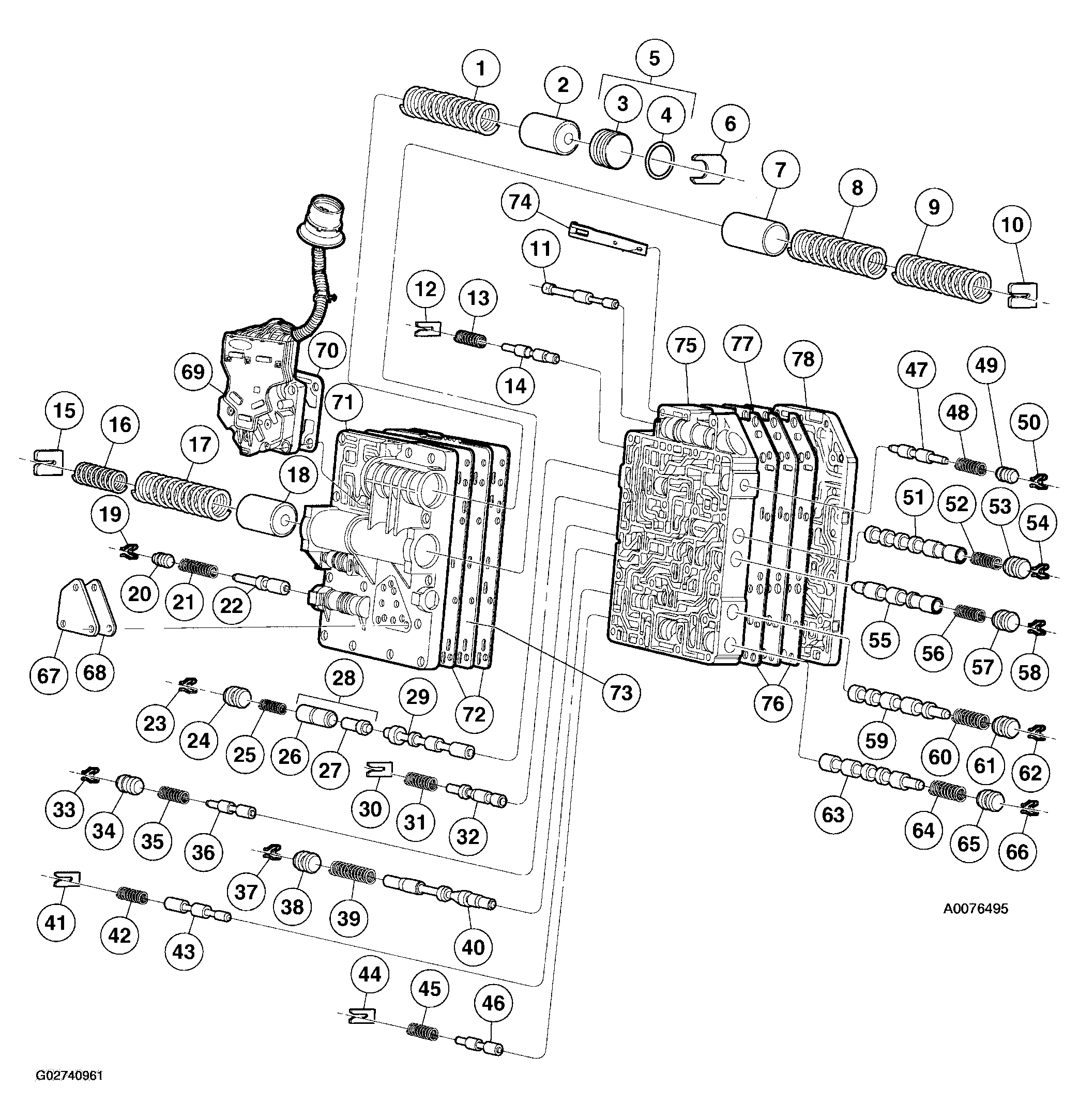

Fig 1: Disassembling Main Control Valve Body (1 Of 3)
G02740961Courtesy of FORD MOTOR CO.

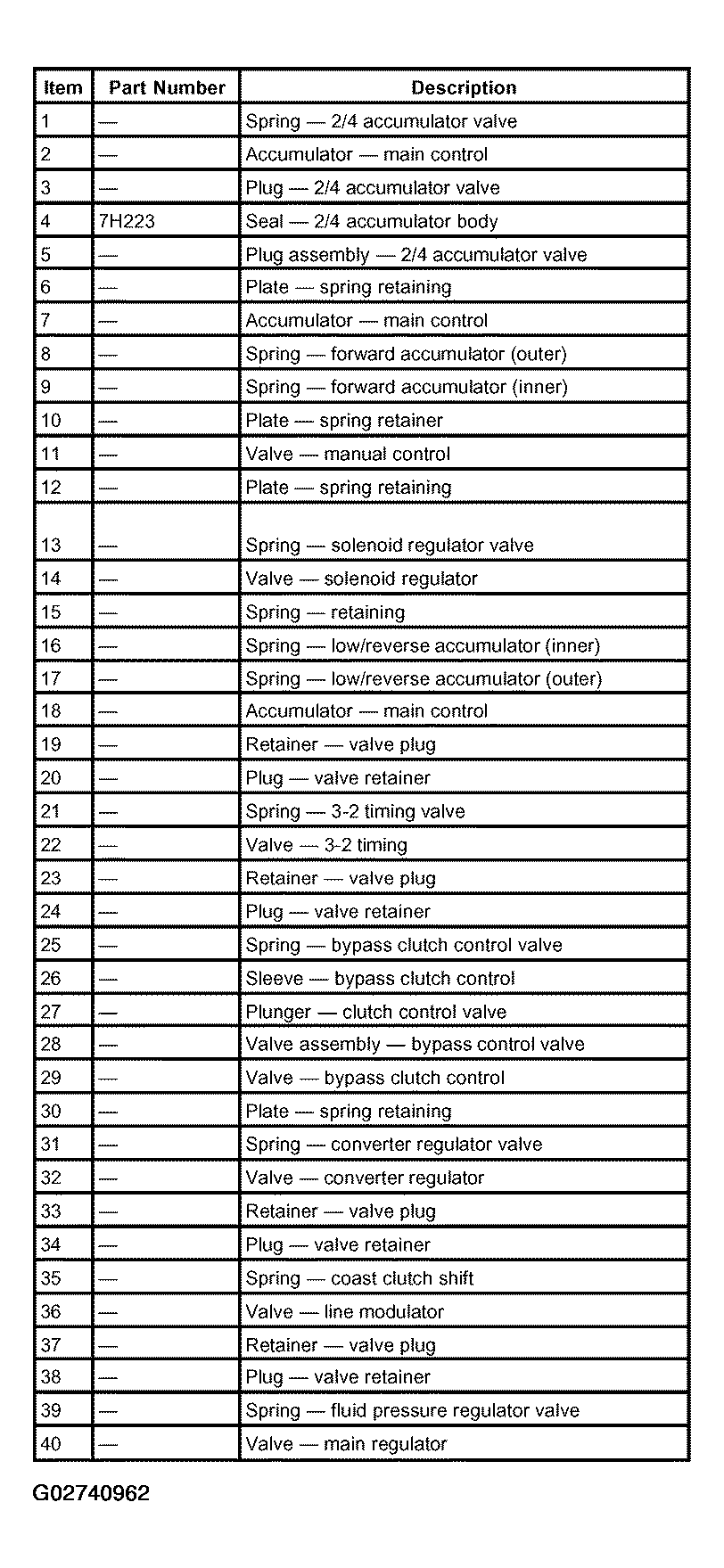

Fig 2: Disassembling Main Control Valve Body (2 Of 3)
G02740962Courtesy of FORD MOTOR CO.

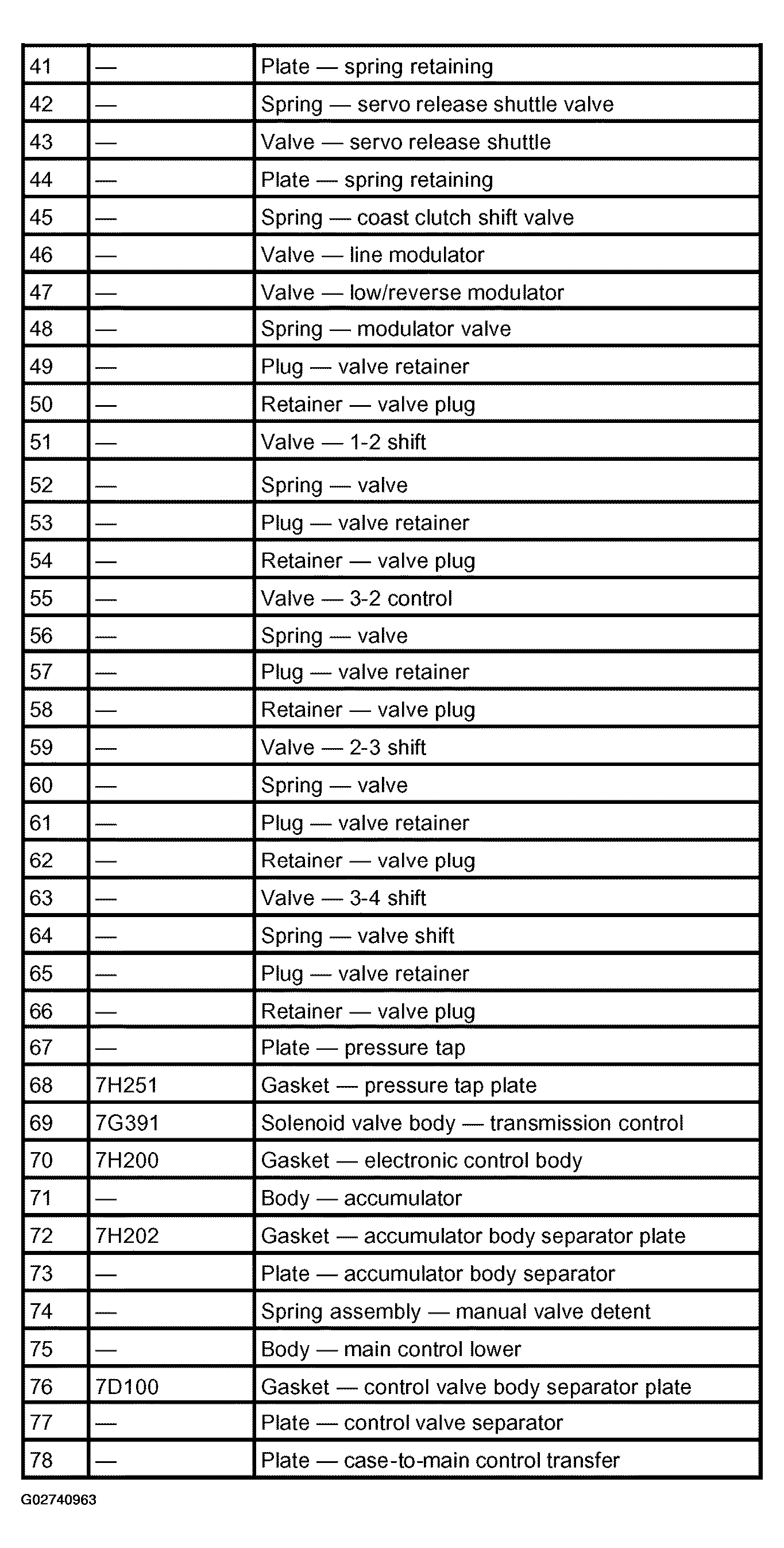

Fig 3: Disassembling Main Control Valve Body (3 Of 3)
G02740963Courtesy of FORD MOTOR CO.
  1. Remove the manual valve.

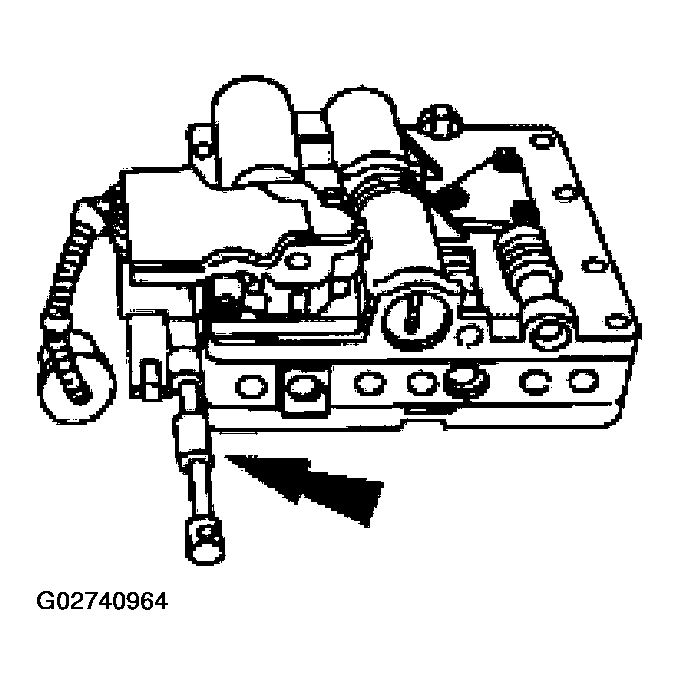

    Fig 4: Removing Manual Valve
    G02740964Courtesy of FORD MOTOR CO.
    2. CAUTION: Do not attempt to remove the solenoid valve body wiring cover.

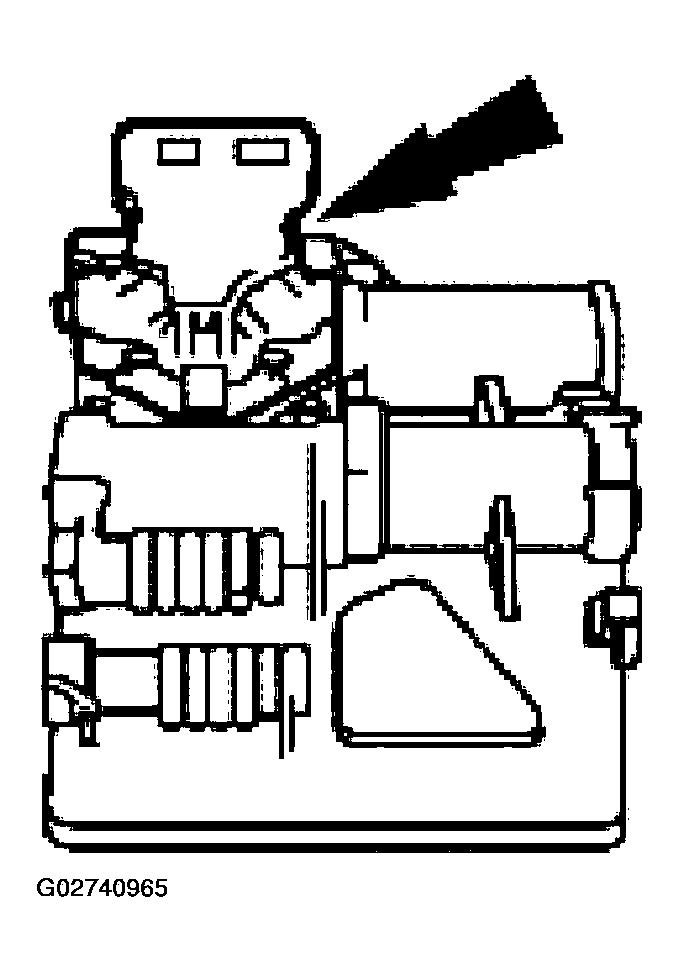

    Fig 5: Removing Solenoid Valve Body
    G02740965Courtesy of FORD MOTOR CO.
  2. Remove the two solenoid valve body bolts and the solenoid valve body.
  3. Remove and discard the solenoid valve body gasket.

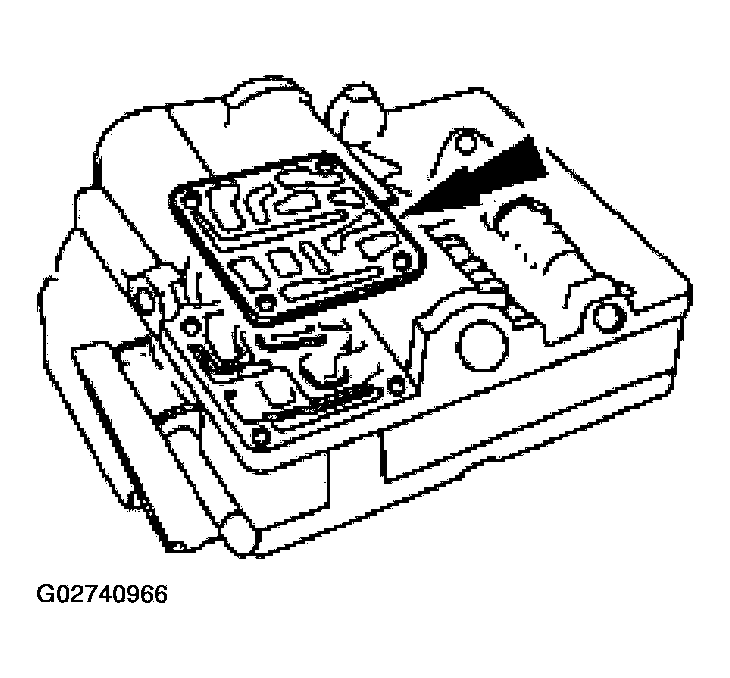

    Fig 6: Removing Solenoid Valve Body Gasket
    G02740966Courtesy of FORD MOTOR CO.
  4. Remove the three pressure tap plate bolts and the pressure tap plate.

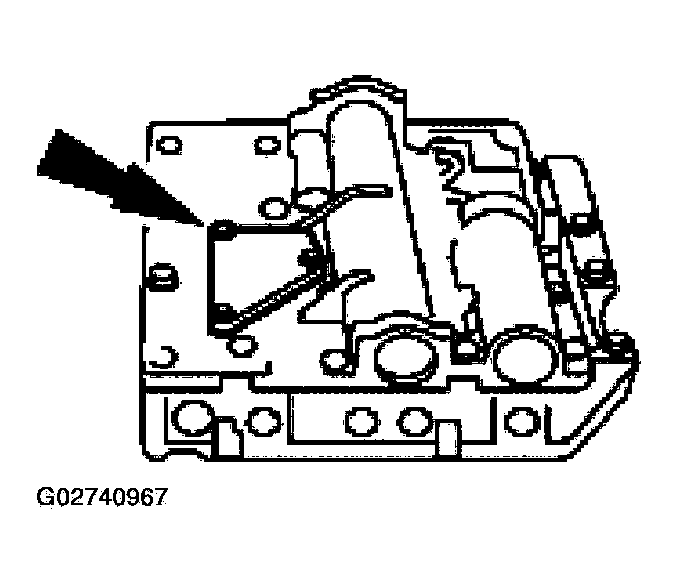

    Fig 7: Removing Pressure Tap Plate
    G02740967Courtesy of FORD MOTOR CO.
  5. Remove and discard the pressure plate tap gasket.

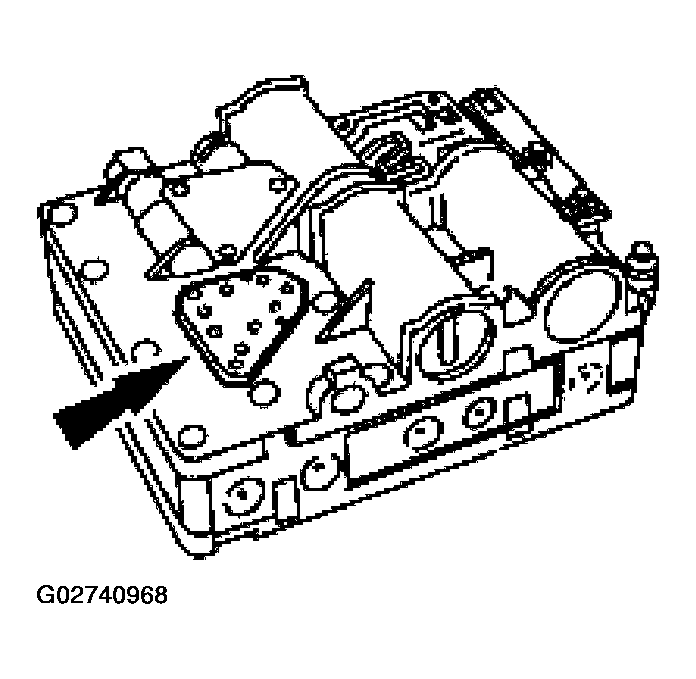

    Fig 8: Removing Pressure Plate Tap Gasket
    G02740968Courtesy of FORD MOTOR CO.
  6. Remove the control valve body to transfer plate bolts, and remove the manual valve detent spring assembly.

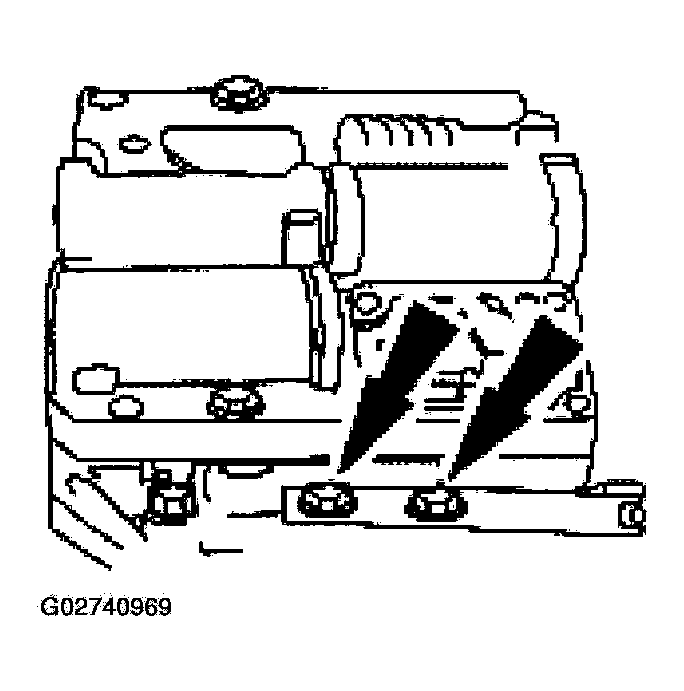

    Fig 9: Removing Control Valve Body To Transfer Plate Bolts
    G02740969Courtesy of FORD MOTOR CO.
  7. Remove the accumulator body-to-transfer plate bolts.

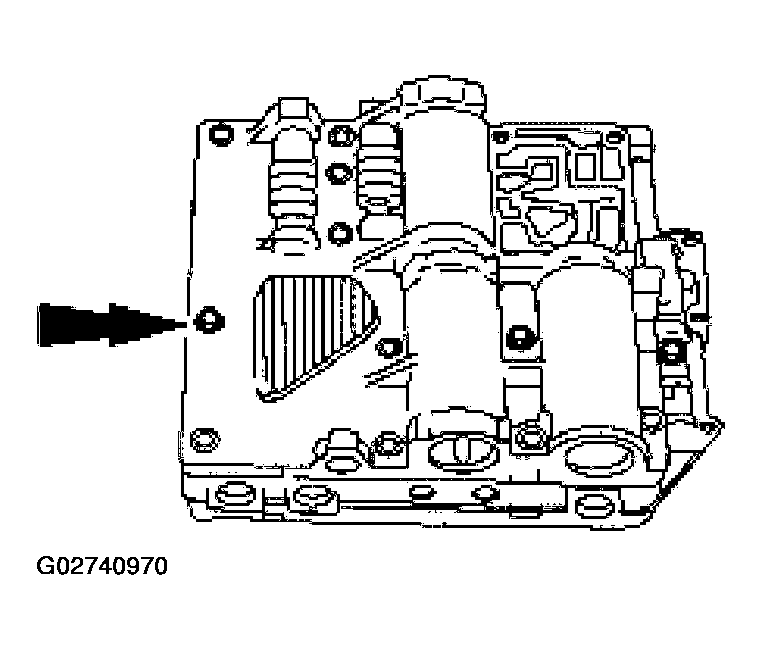

    Fig 10: Removing Accumulator Body-To-Transfer Plate Bolts
    G02740970Courtesy of FORD MOTOR CO.
  8. Separate the accumulator body from the main control valve body.
    1. Remove the accumulator body assembly.
    2. Remove and discard the accumulator body separator gasket.
    3. Remove the accumulator body separator plate.
    4. Remove and discard the accumulator body separator gasket.
    5. Remove the main control valve body.

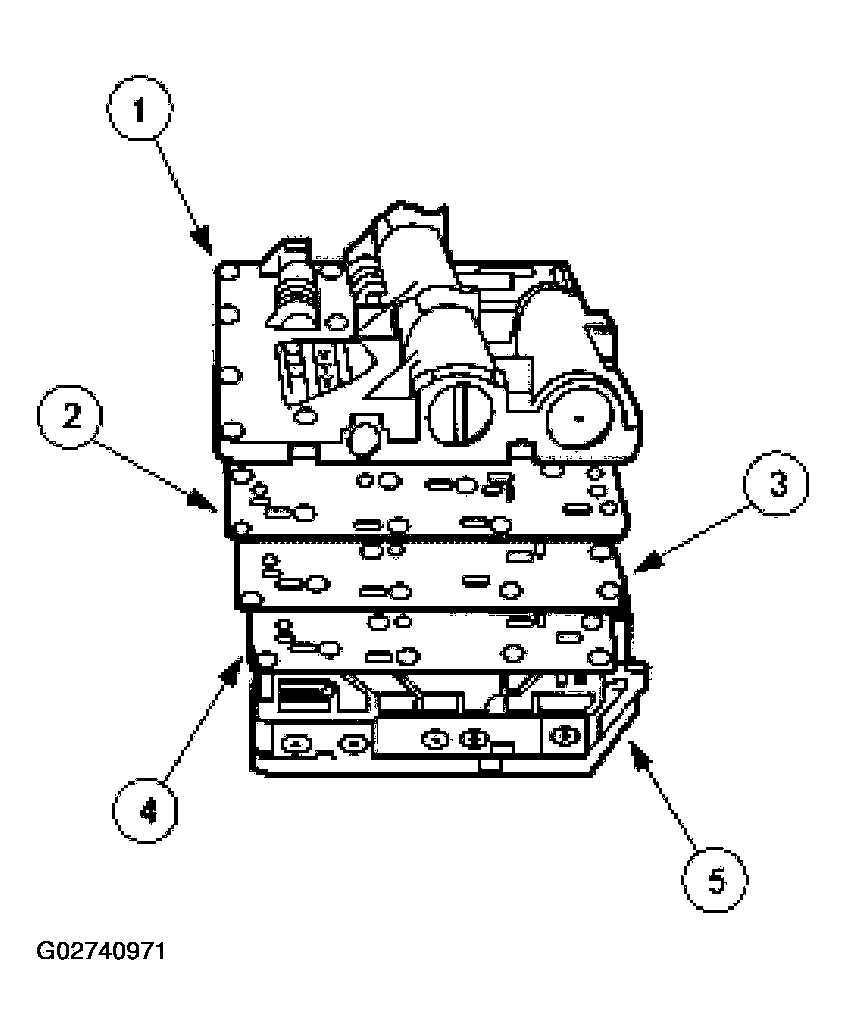

    Fig 11: Separating Accumulator Body From Main Control Valve Body
    G02740971Courtesy of FORD MOTOR CO.
  9. Separate the transfer plate from the main control valve body.
    1. Remove the main control valve body.
    2. Remove and discard the valve body separator plate gasket.
    3. Remove the valve body separator plate.
    4. Remove and discard the valve body separator plate gasket.
    5. Remove the transfer plate.

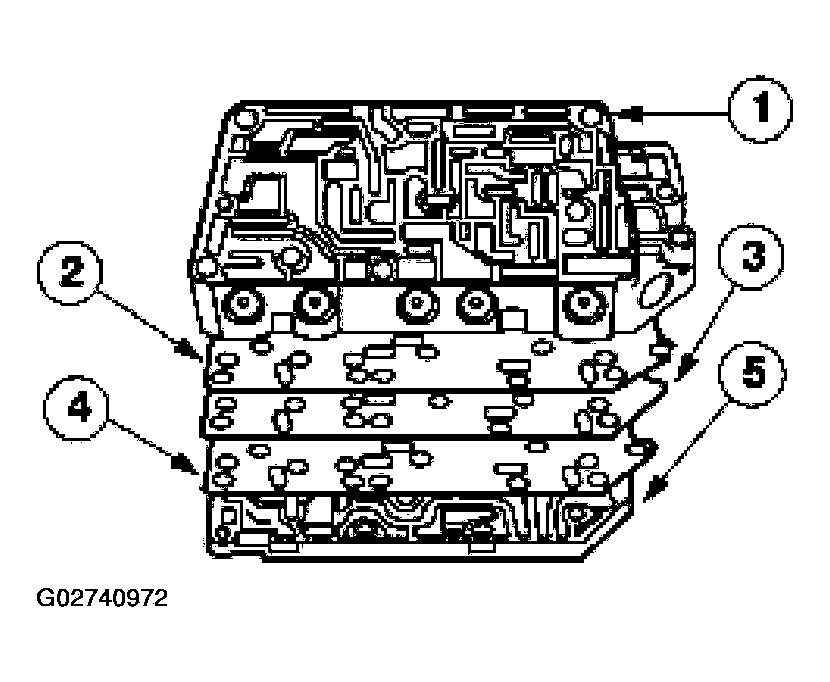

    Fig 12: Separating Transfer Plate From Main Control Valve Body
    G02740972Courtesy of FORD MOTOR CO.
  10. Remove the intermediate and overdrive accumulator valve plug retaining plate from the accumulator body assembly.

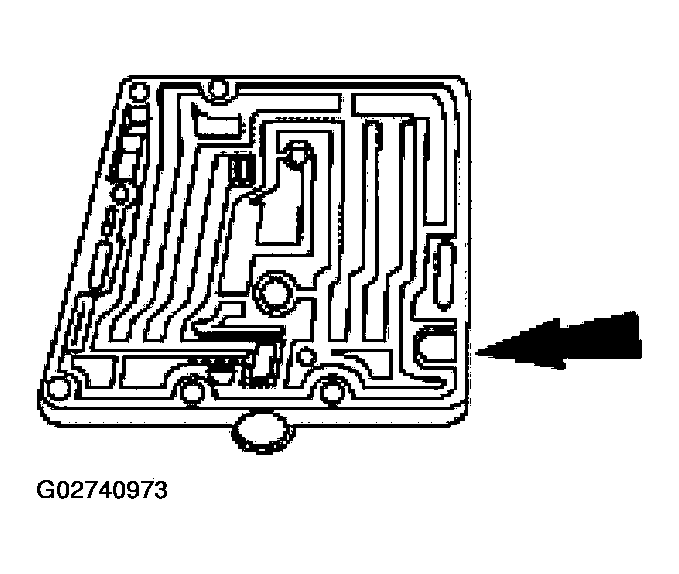

    Fig 13: Removing Intermediate And Overdrive Accumulator Valve Plug Retaining Plate From Accumulator Body Assembly
    G02740973Courtesy of FORD MOTOR CO.
  11. Remove the intermediate and overdrive accumulator valve plug.

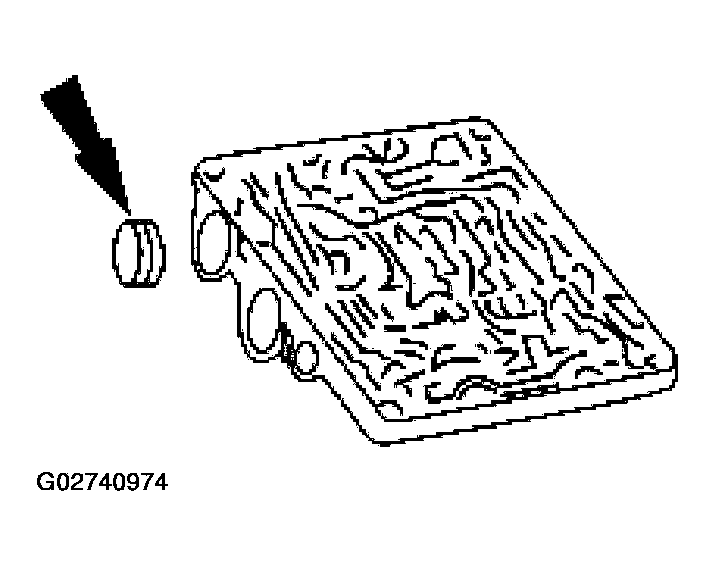

    Fig 14: Removing Intermediate And Overdrive Accumulator Valve Plug
    G02740974Courtesy of FORD MOTOR CO.
  12. Remove and discard the intermediate and overdrive accumulator plug seal.

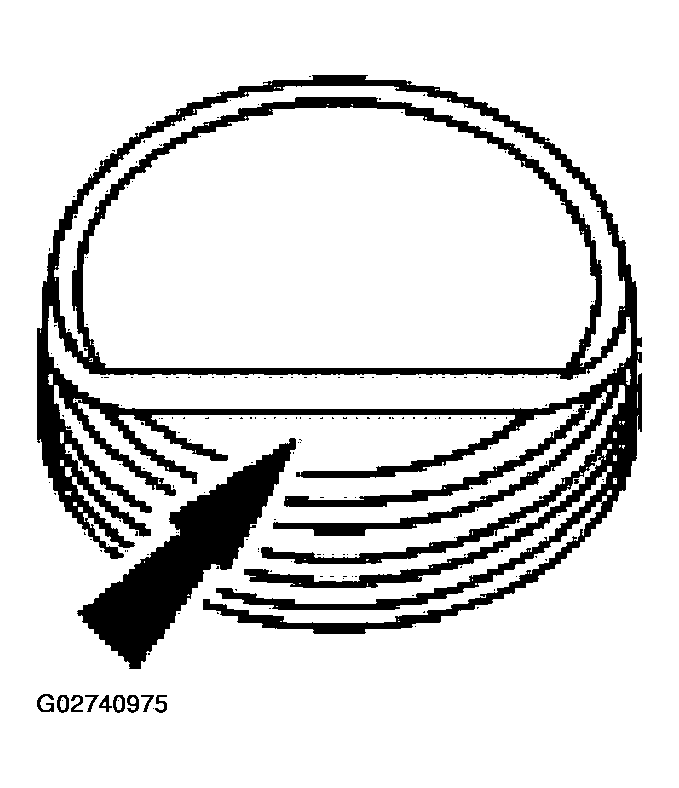

    Fig 15: Removing Intermediate And Overdrive Accumulator Plug Seal
    G02740975Courtesy of FORD MOTOR CO.
    13. CAUTION: Remove, note location and clean one valve at a time to avoid incorrect installation.
  13. As necessary, disassemble the parts of the accumulator body and main control valve body assemblies.
    • Lubricate and reassemble the parts as soon as possible to avoid accidental damage or incorrect installation.
