Torque Converter Housing: Assembly

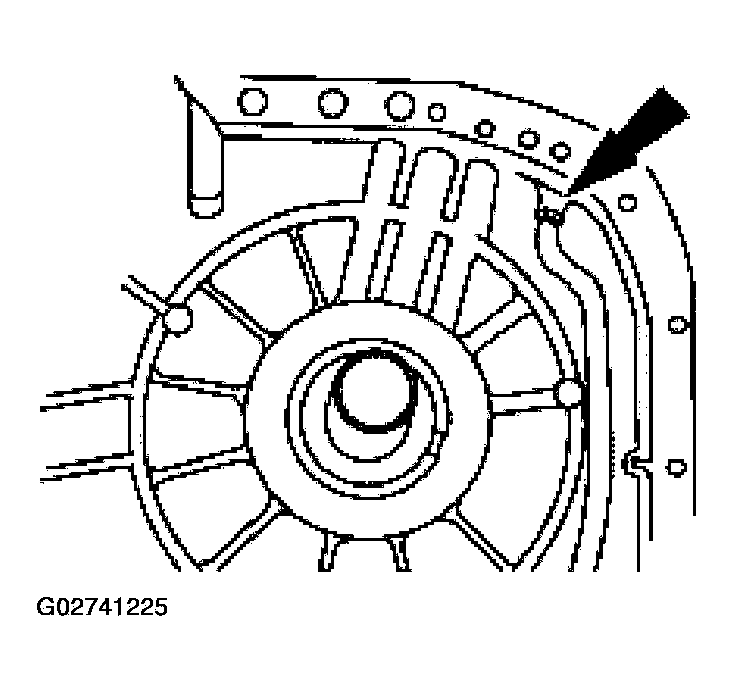

Position a new differential lube tube in the torque converter housing.

Fig 1: Positioning Differential Lube Tube In Torque Converter Housing
Courtesy of FORD MOTOR CO.

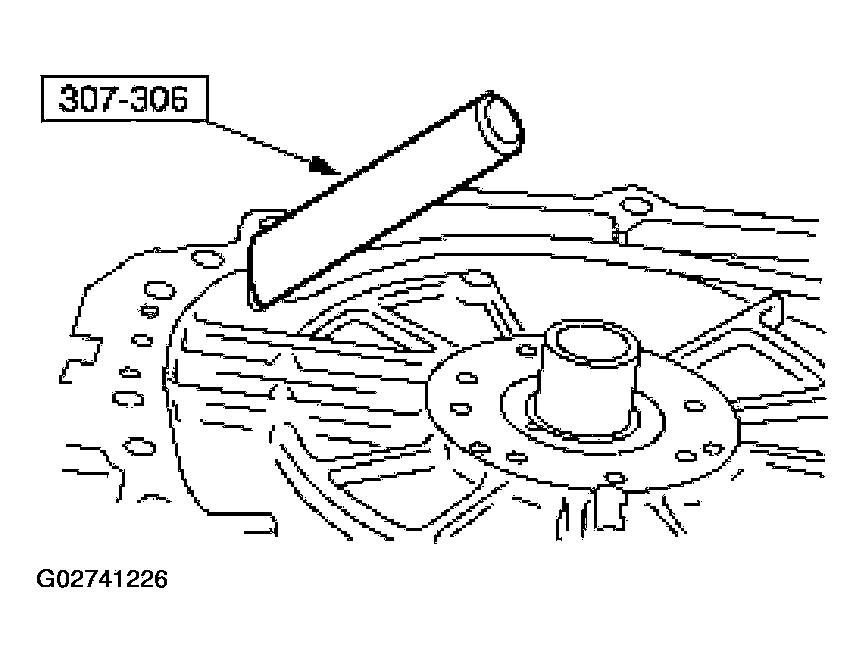

Using the special tool, install the differential lube tube.

Fig 2: Installing Differential Lube Tube
Courtesy of FORD MOTOR CO.

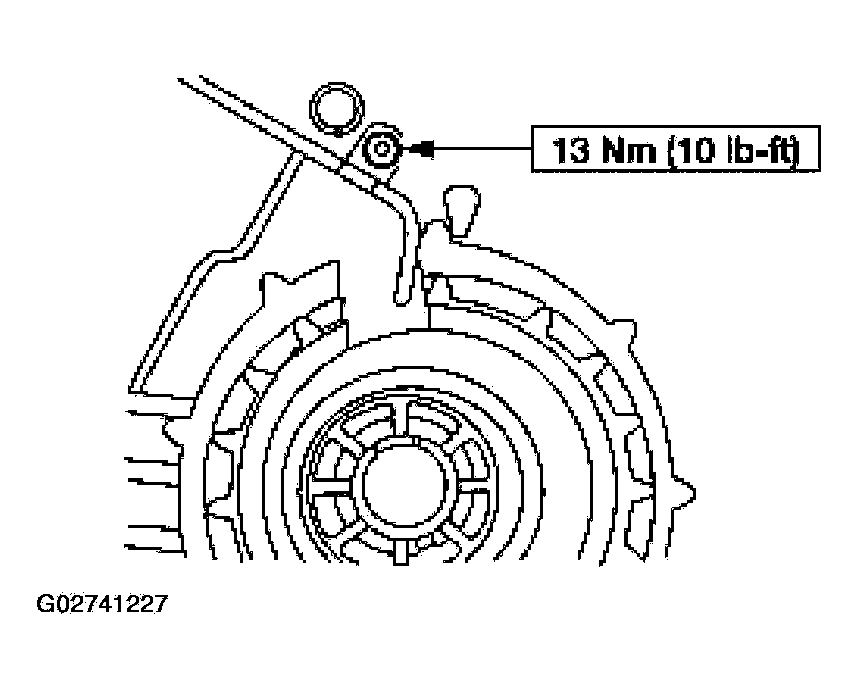

Install the differential lube tube bolt.

Fig 3: Differential Lube Tube Bolt Torque Specification
Courtesy of FORD MOTOR CO.

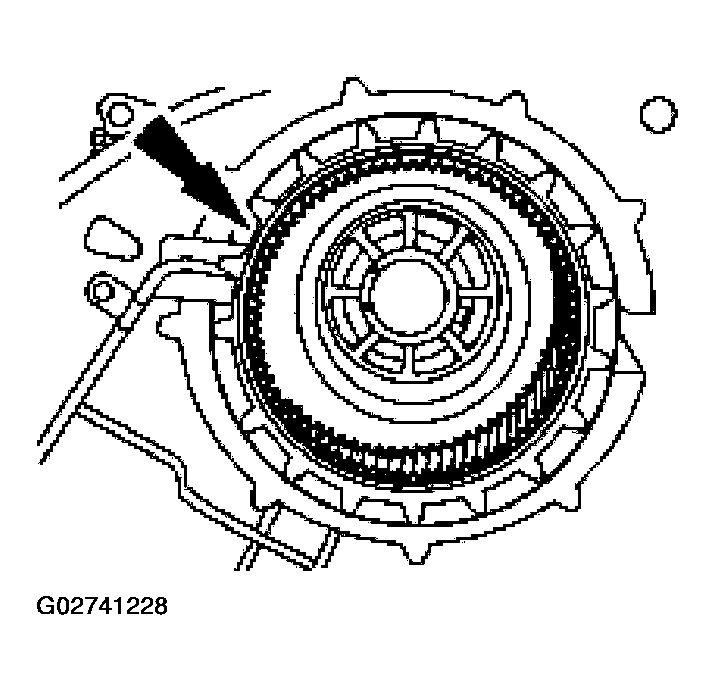

NOTE: The final drive ring gear is installed with the lug end uppermost.

Fig 4: Installing Final Drive Ring Gear

G02741228

Courtesy of FORD MOTOR CO.

Install the final drive ring gear.

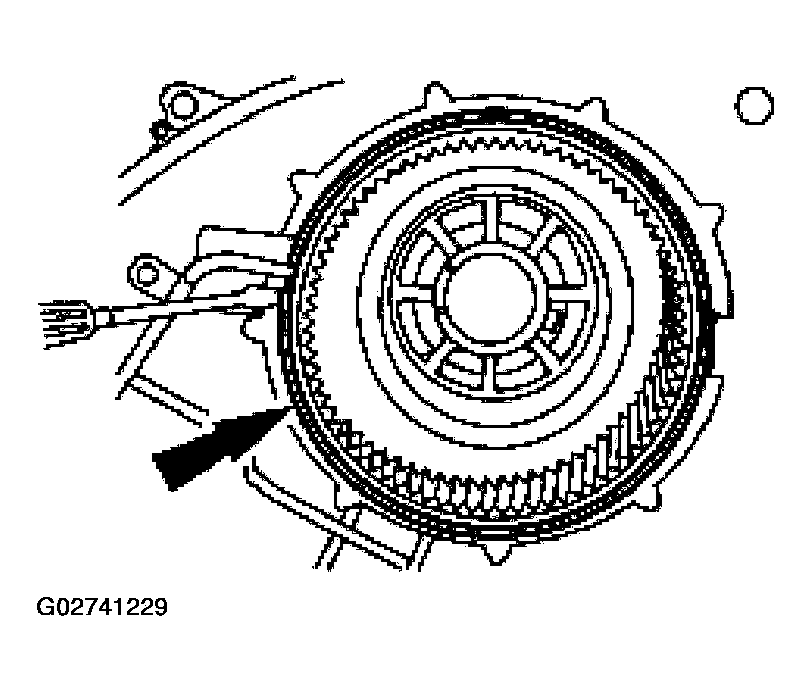

Install the final drive ring gear retaining ring.

Fig 5: Installing Final Drive Ring Gear Retaining Ring
Courtesy of FORD MOTOR CO.

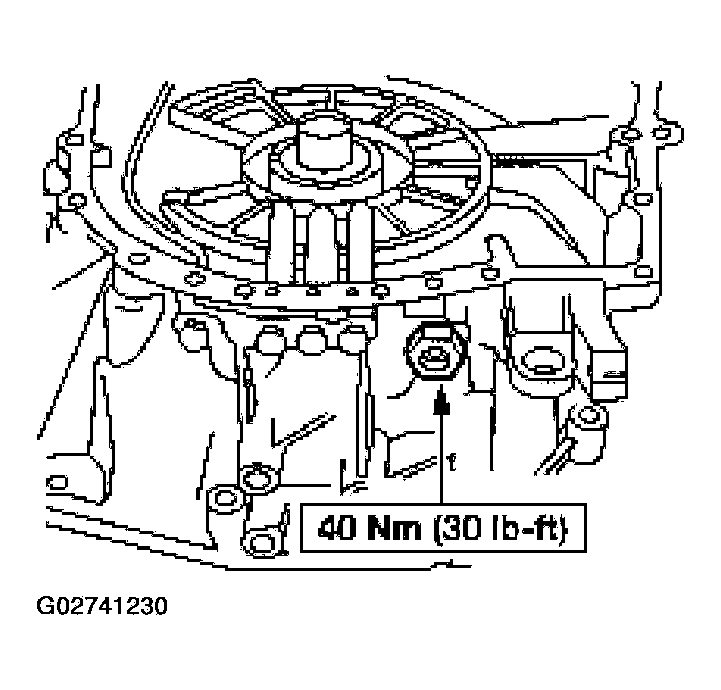

Install the cooler tube fitting.

Fig 6: Installing Cooler Tube Fitting
Courtesy of FORD MOTOR CO.
