Main Control Cover and Gasket: Installation

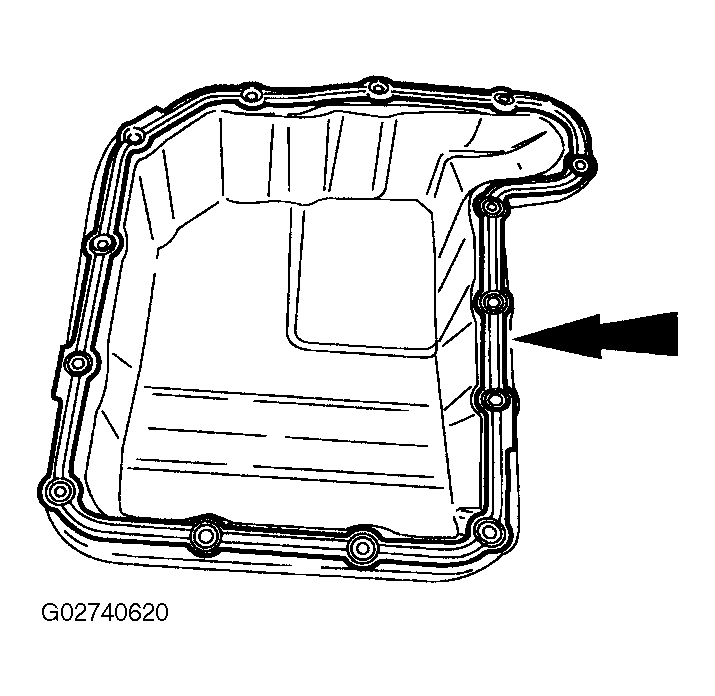

NOTE: The main control cover gasket is a reusable type. Inspect the gasket for damage. Install a new gasket as necessary.

Fig 1: Installing Main Control Cover Gasket

Courtesy of FORD MOTOR CO.

NOTE: Install studs in locations 3 and 11.

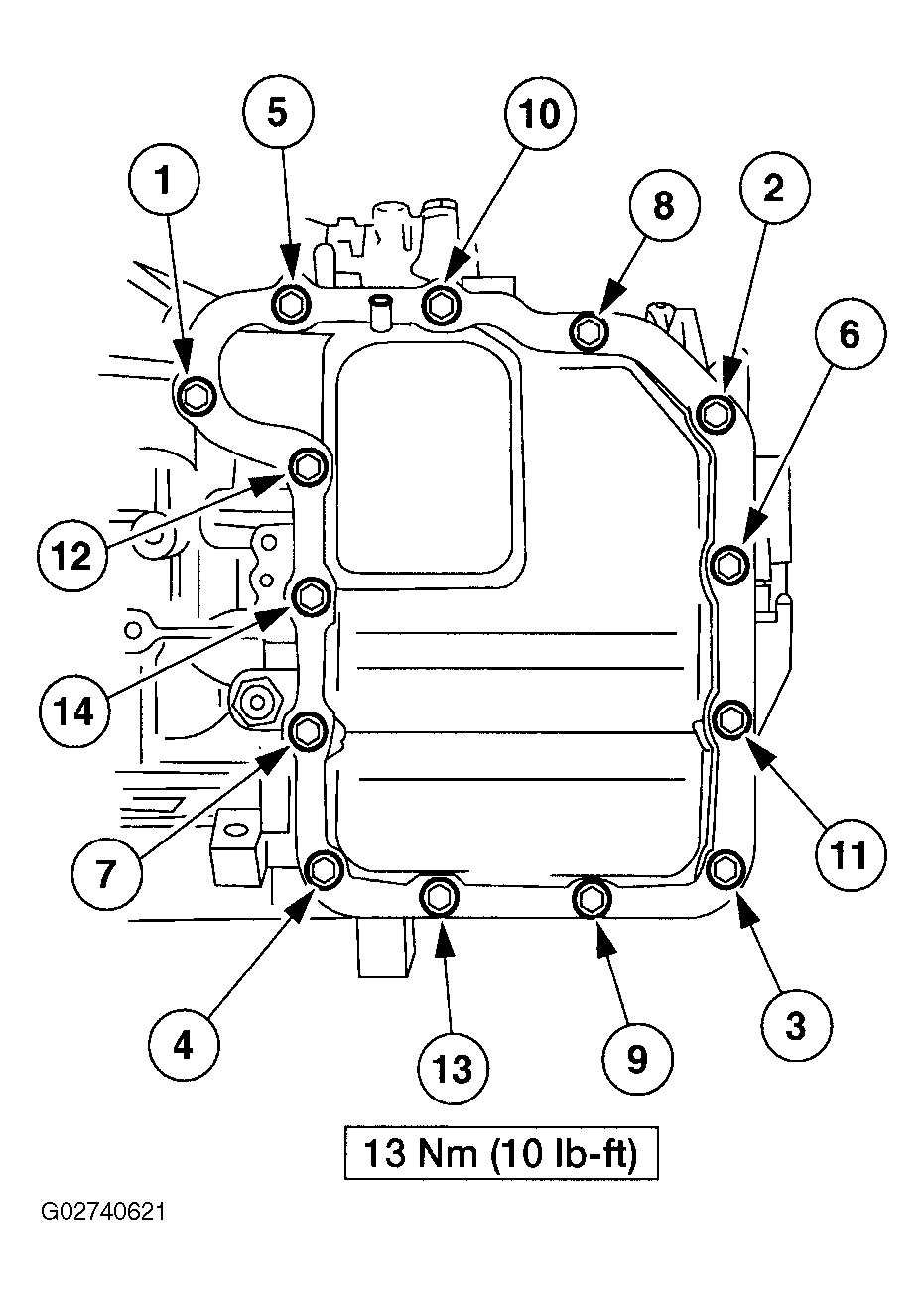

Fig 2: Installing Main Control Cover And Tightening Bolts In Sequence

Courtesy of FORD MOTOR CO.

Install the main control cover and tighten the bolts in the sequence as indicated.

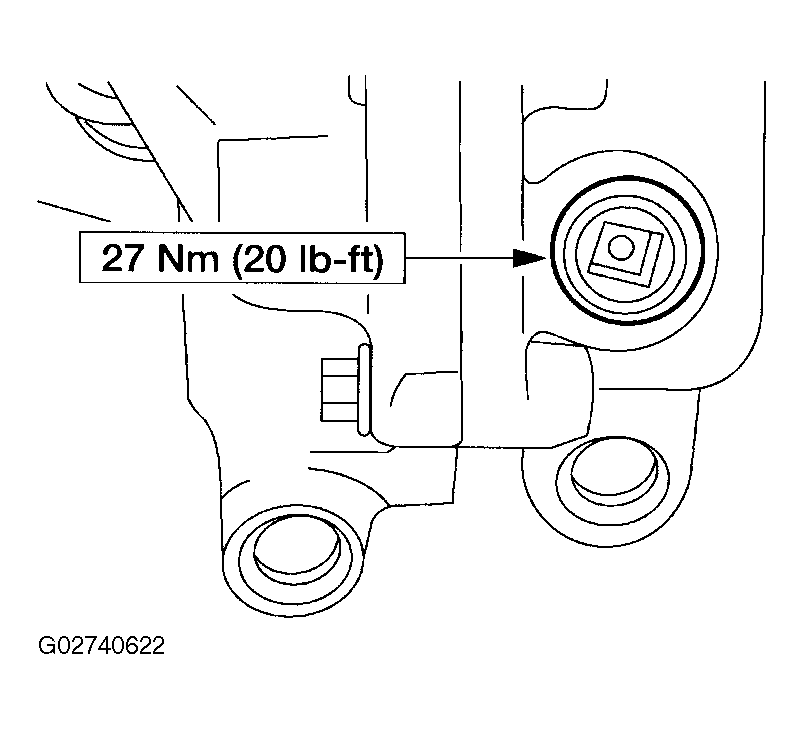

Using a small amount of thread sealant on the threads, install the transaxle drain plug.

Fig 3: Installing Transaxle Drain Plug
Courtesy of FORD MOTOR CO.

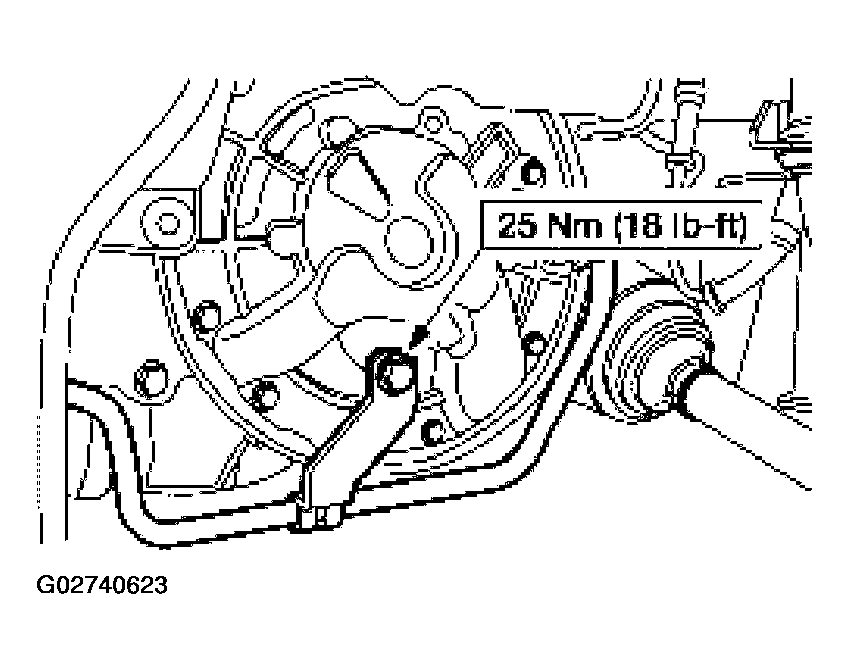

Position the transmission fluid cooler tube in place and install the bolt.

Fig 4: Transmission Fluid Cooler Tube Bolt Torque Specification
Courtesy of FORD MOTOR CO.
Install the lower radiator hose.

Fig 5: Installing Lower Radiator Hose
Courtesy of FORD MOTOR CO.

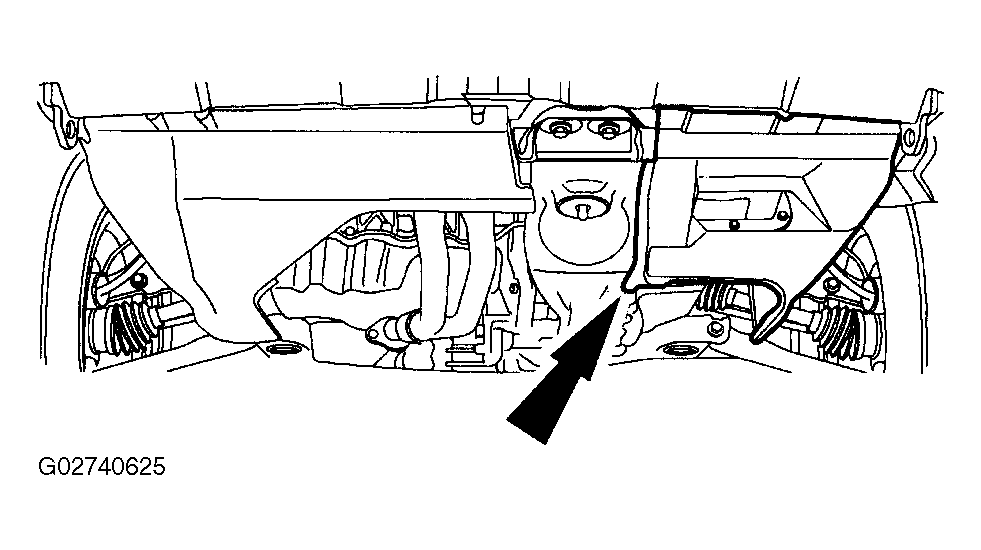

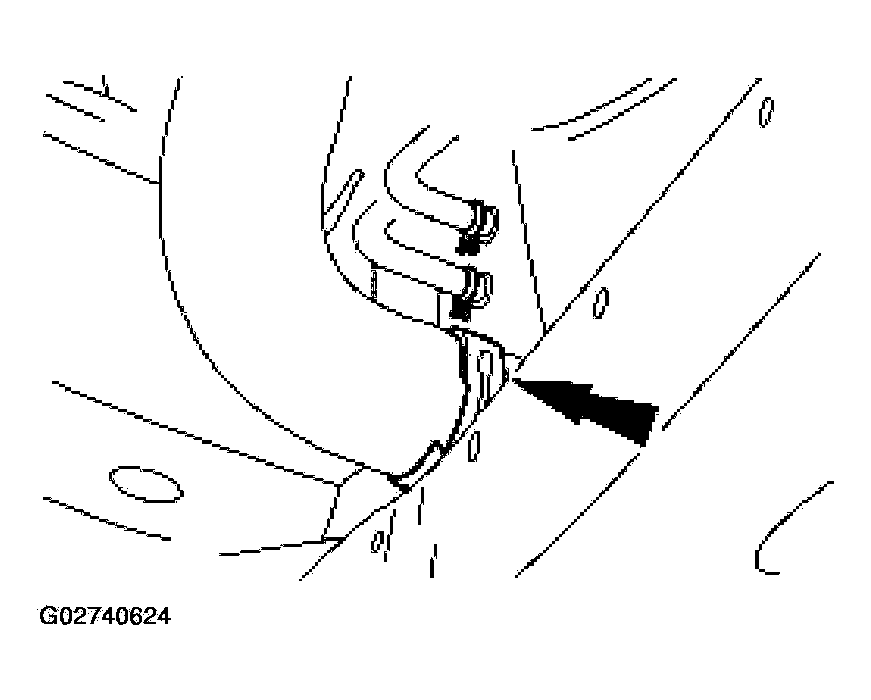

Install the LH splash shield.

Fig 6: Installing LH Splash Shield
Courtesy of FORD MOTOR CO.

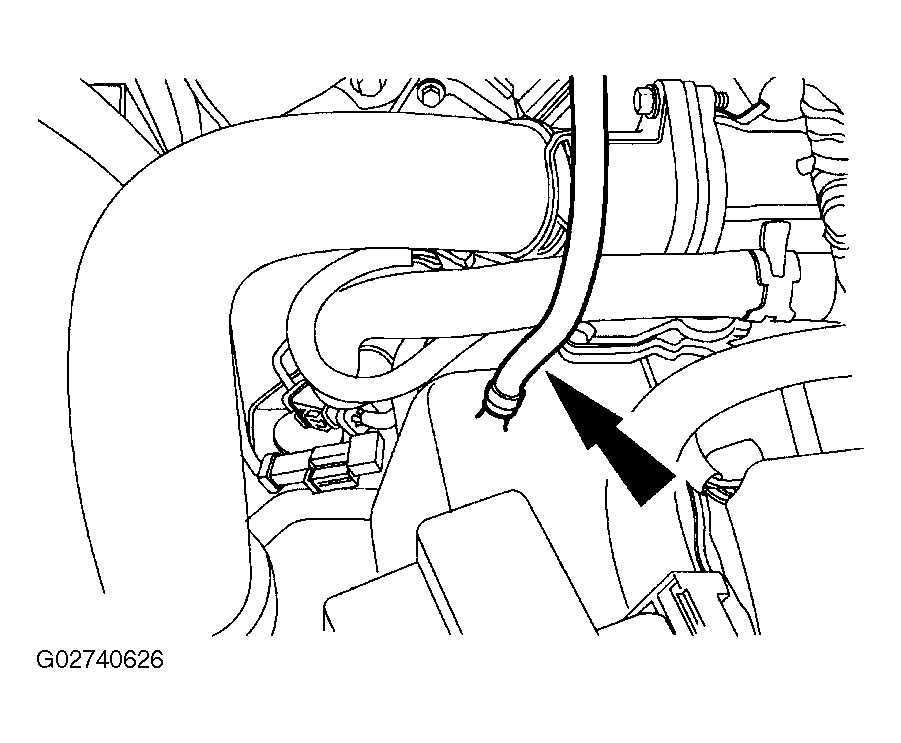

Install the vent tube hose.

Fig 7: Installing Vent Tube Hose
Courtesy of FORD MOTOR CO.

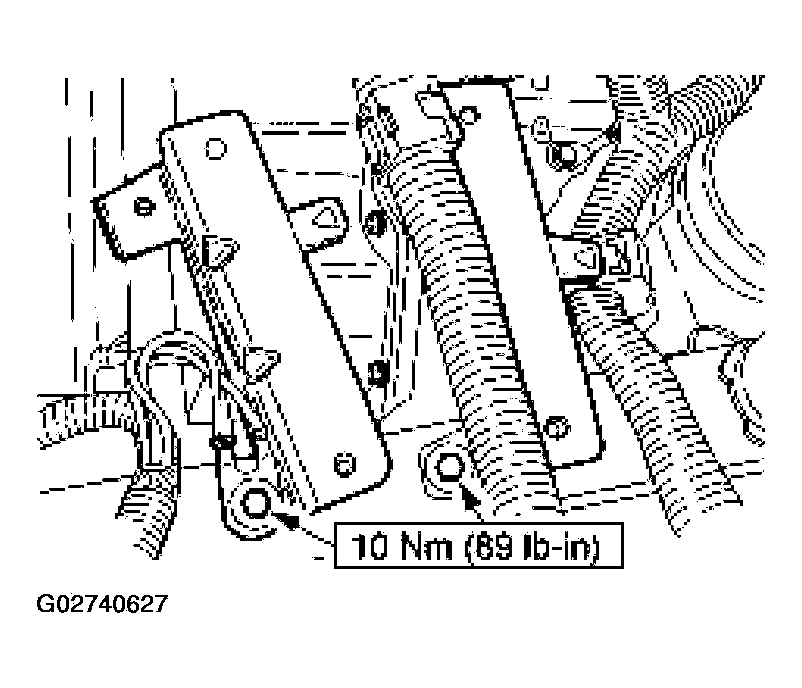

Install the battery tray bracket.

Fig 8: Battery Tray Bracket Bolts Torque Specification
Courtesy of FORD MOTOR CO.

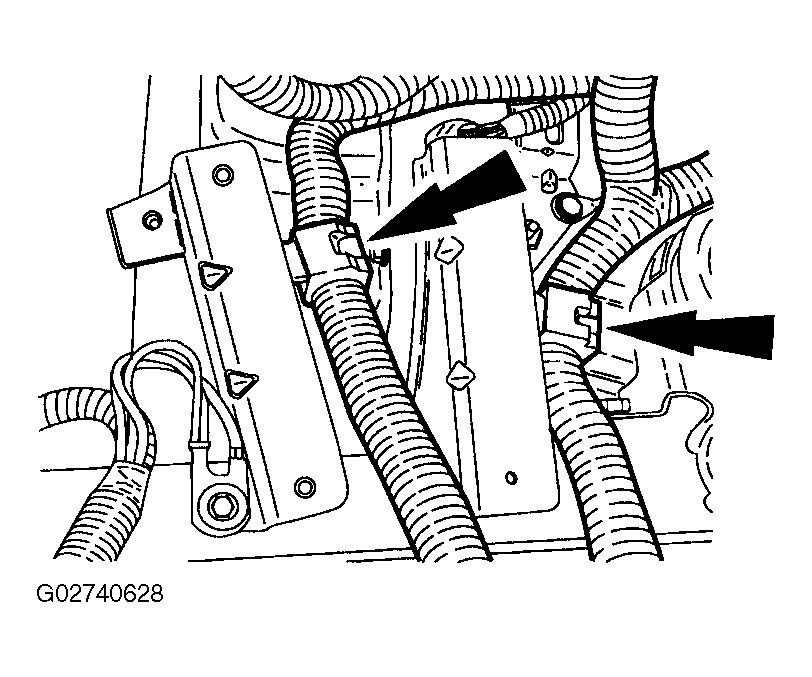

Connect the wiring harness to the battery tray bracket.

Fig 9: Connecting Wiring Harness To Battery Tray Bracket
Courtesy of FORD MOTOR CO.
Install the battery tray. For additional information, refer to BATTERY, MOUNTING AND CABLES
Fill the transaxle with clean automatic transmission fluid.
Fill the engine cooling system. For additional information, refer to ENGINE COOLING
Start the engine and run through all the gears for a total of 5 minutes.
