Main Control Valve Body: Installation

NOTE: Inspect the solenoid valve body harness connector O-ring seal for damage. Install a new O-ring seal, if damaged, before installing the connector into the case.

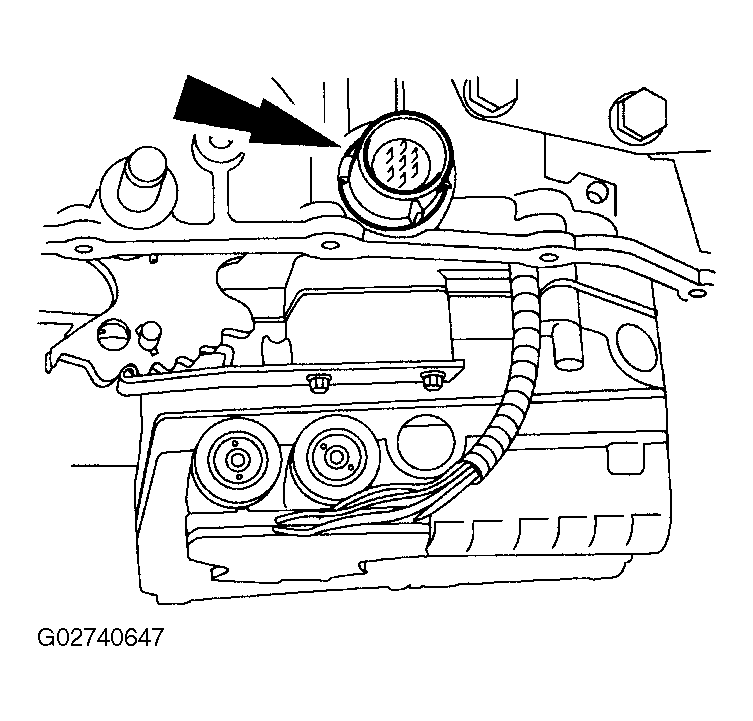

Fig 1: Locating Solenoid Valve Body Harness Connector

Courtesy of FORD MOTOR CO.

Push the solenoid valve body harness connector into the case.
Connect the manual valve link to the main control valve body.

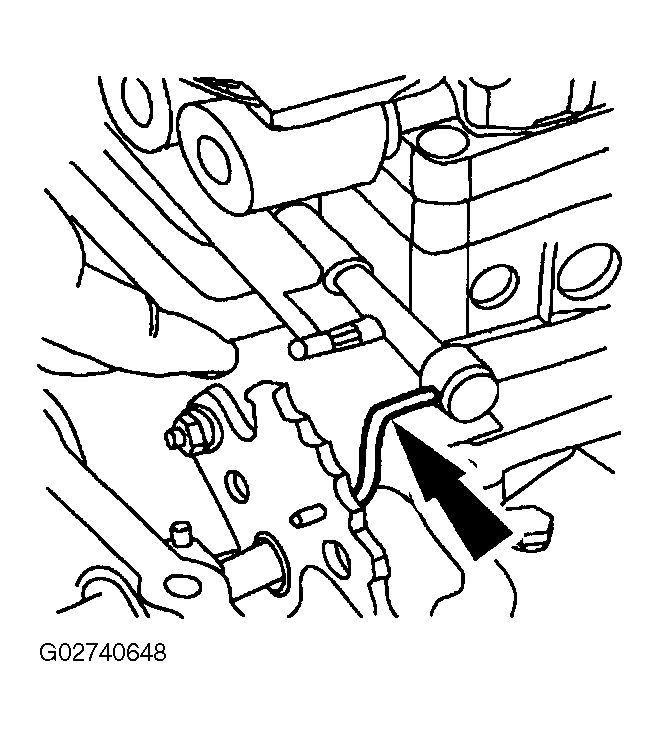

Fig 2: Connecting Manual Valve Link To Main Control Valve Body
Courtesy of FORD MOTOR CO.
Install the main control valve body and tighten the bolts in sequence as indicated.

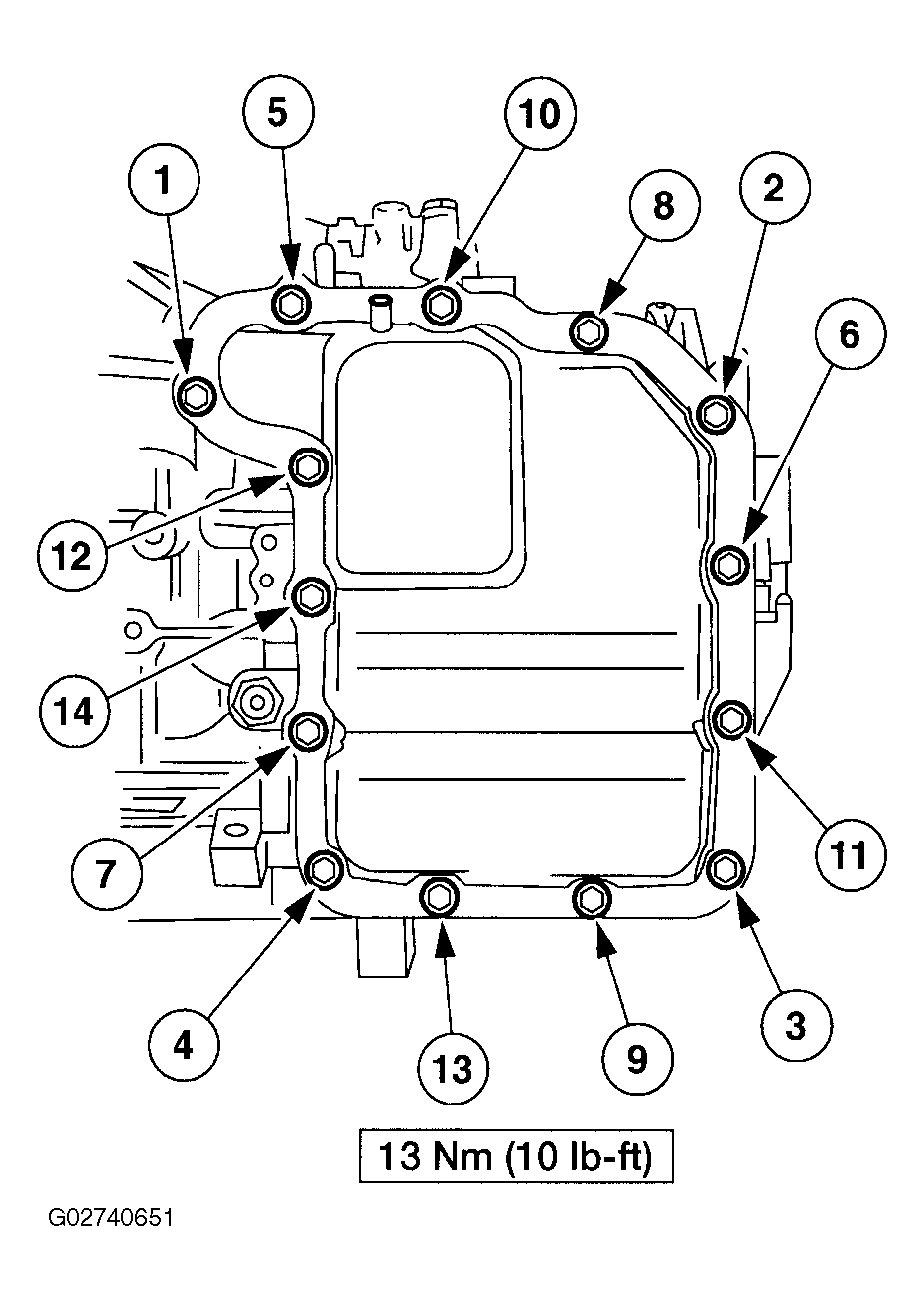

Fig 3: Tightening Sequence & Torque Specification Of Main Control Valve Body Bolts
Courtesy of FORD MOTOR CO.

NOTE: The main control cover gasket is a reusable type. Inspect the gasket for damage. Install a new gasket as necessary.

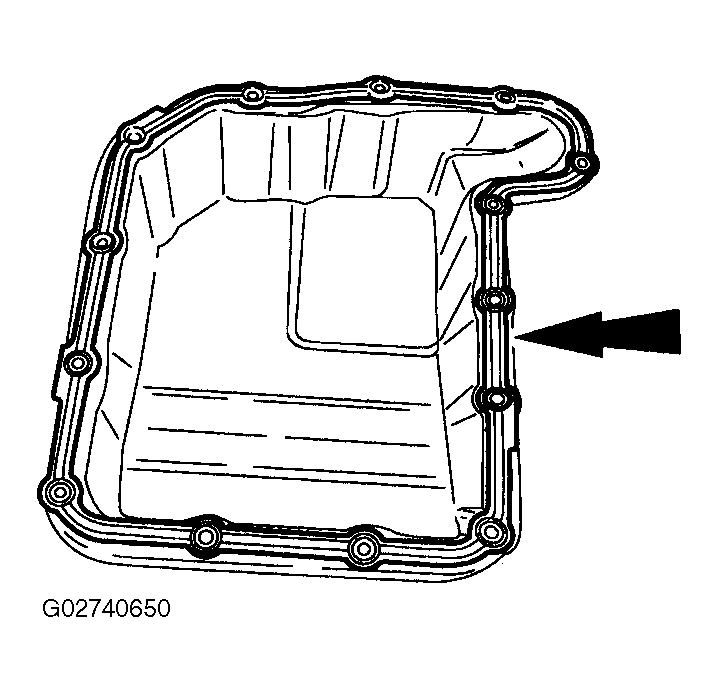

Fig 4: Installing Main Control Cover Gasket

Courtesy of FORD MOTOR CO.

Install the main control cover gasket.

NOTE: Install the cooler bypass valve studs in locations 3 and 11.

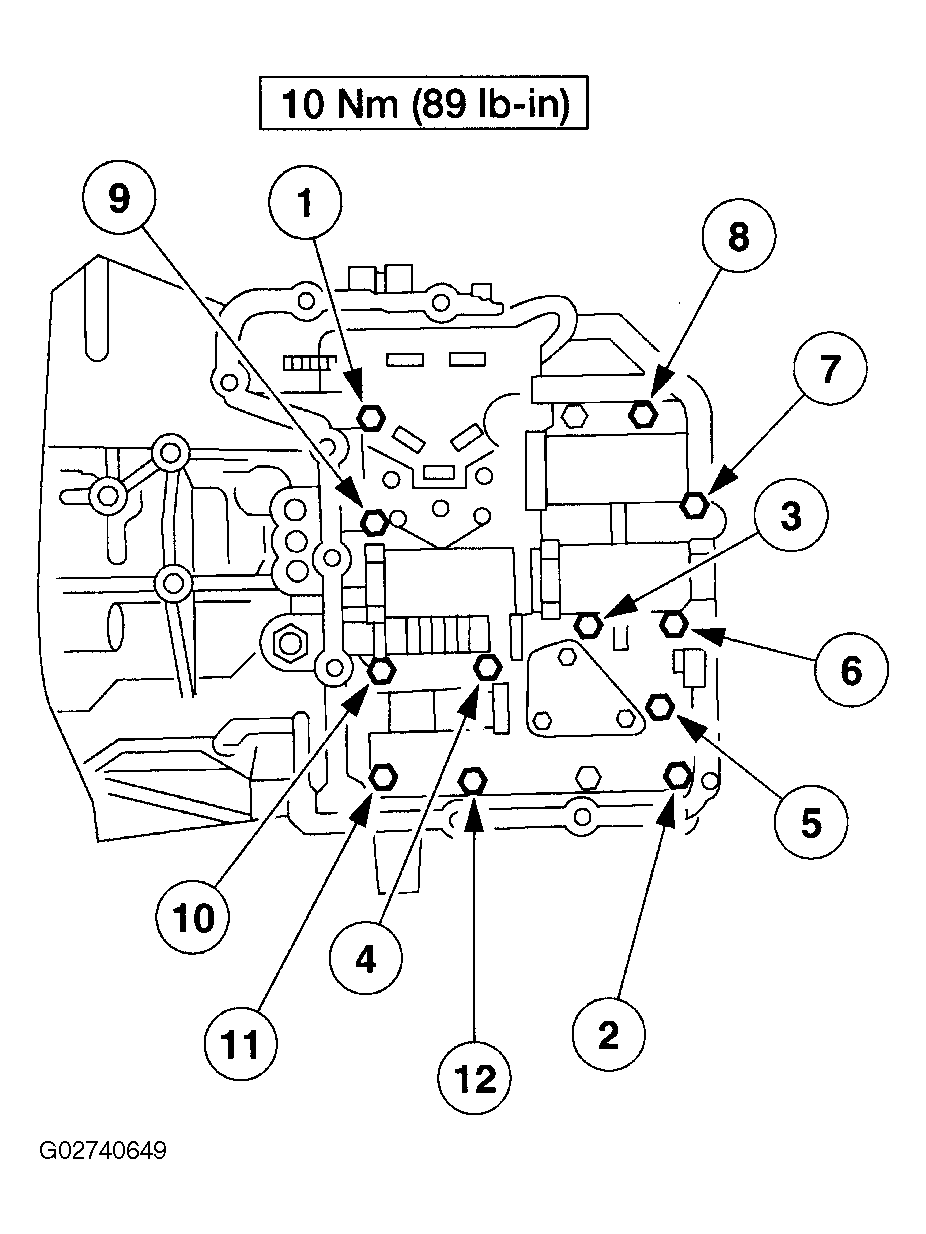

Fig 5: Tightening Sequence & Torque Specification Of Main Control Cover Bolts

Courtesy of FORD MOTOR CO.

Install the main control cover, and tighten the bolts in sequence as shown.
Using a small amount of thread sealant on the threads, install the transaxle drain plug.

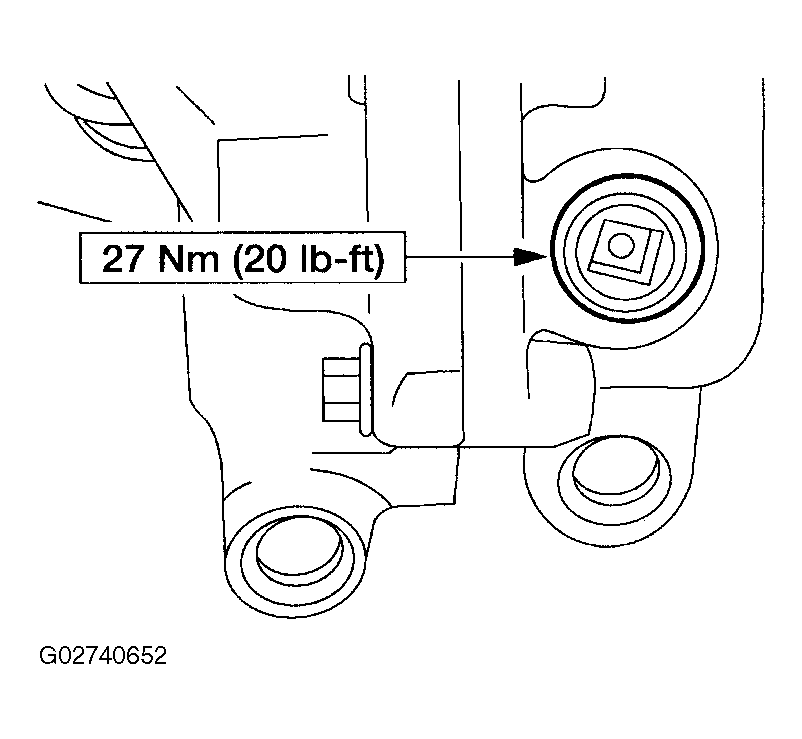

Fig 6: Installing Transaxle Drain Plug
Courtesy of FORD MOTOR CO.

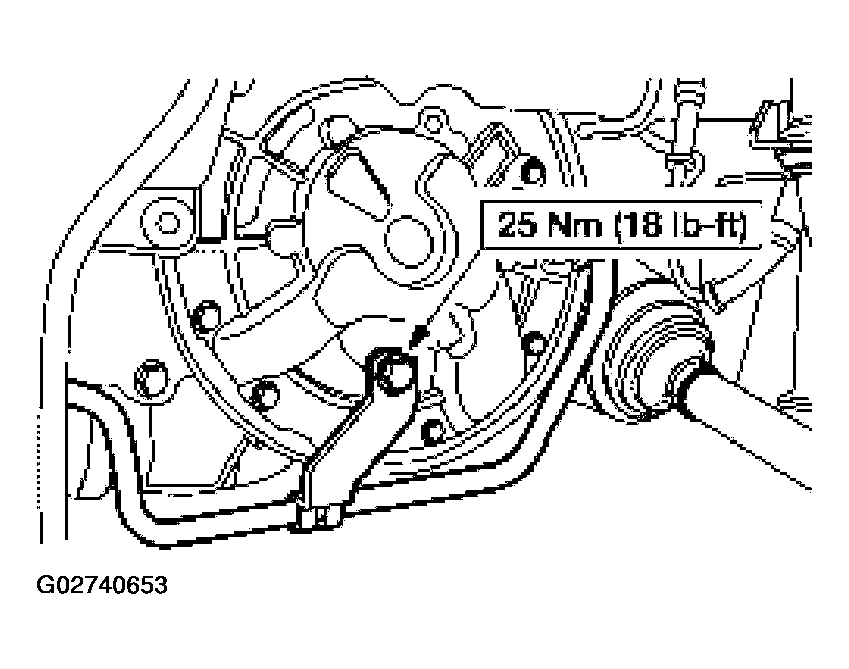

Position the transmission fluid cooler tube in place and install the bolts.

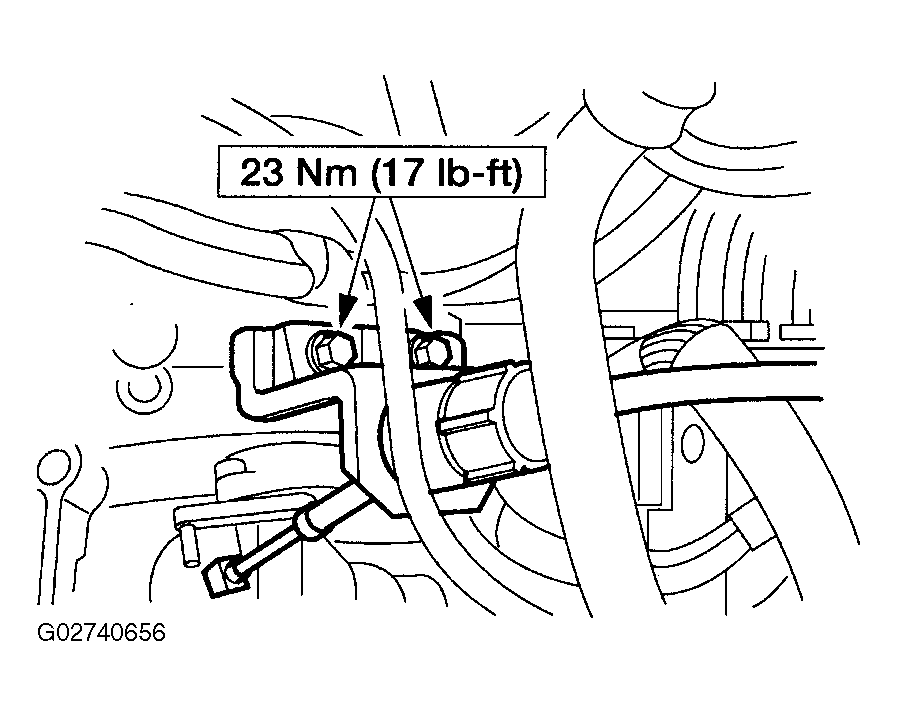

Fig 7: Transmission Fluid Cooler Tube Bolt Torque Specification
Courtesy of FORD MOTOR CO.
Install the lower radiator hose.

Fig 8: Installing Lower Radiator Hose
Courtesy of FORD MOTOR CO.
Install the splash shield.

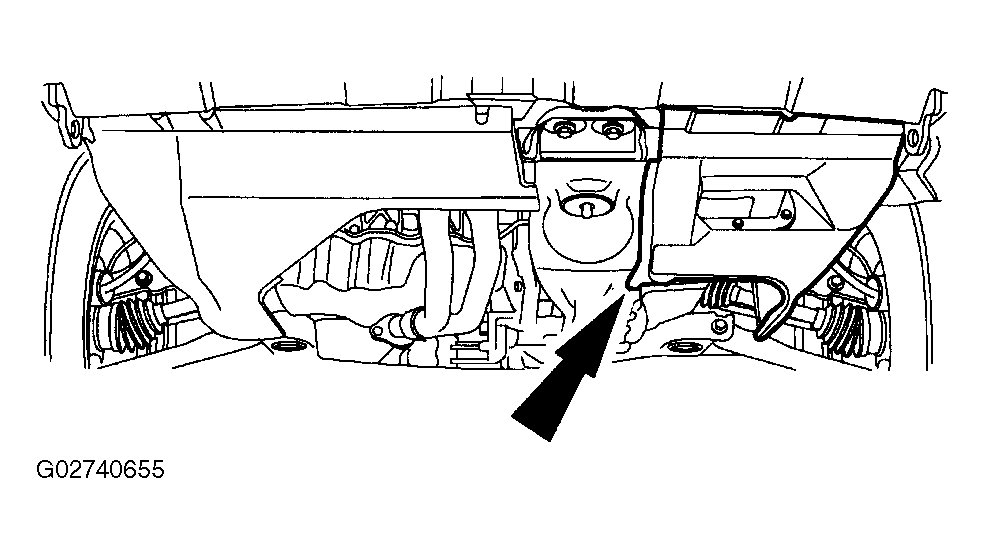

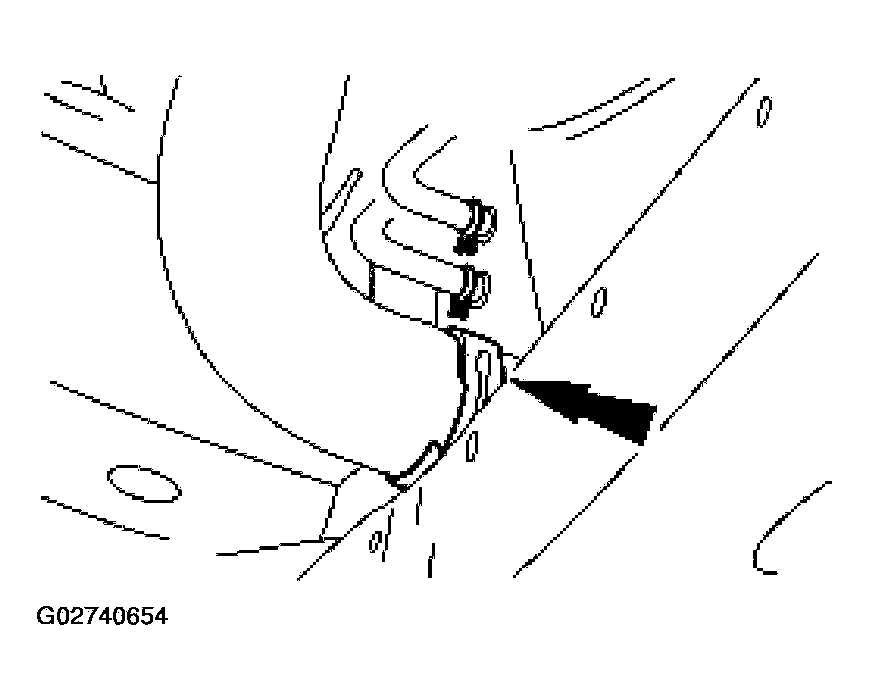

Fig 9: Installing Splash Shield
Courtesy of FORD MOTOR CO.

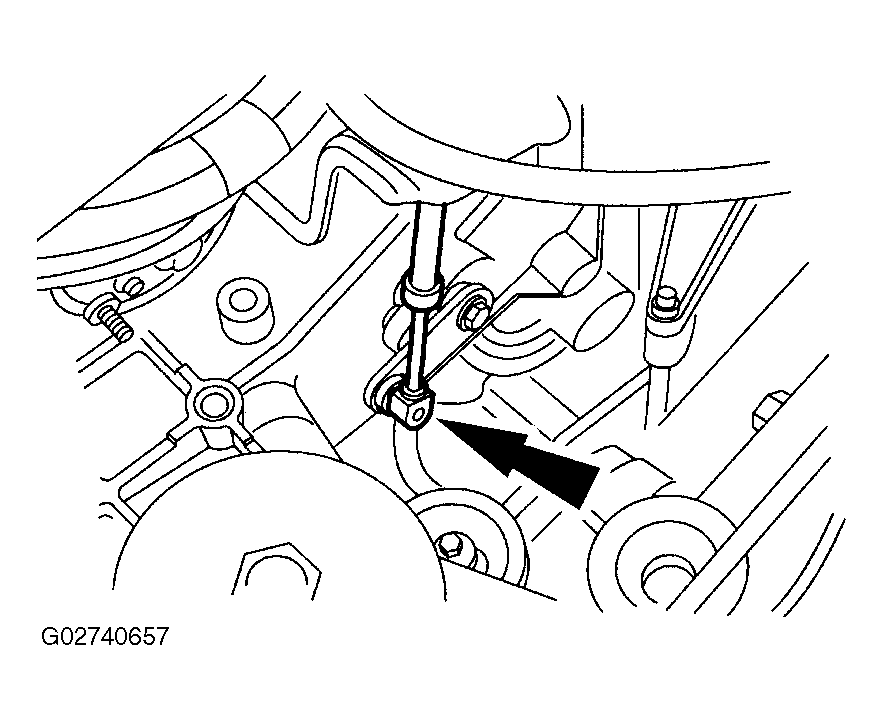

Install the shift cable and bracket.

Fig 10: Shift Cable Bracket Bolts Torque Specification
Courtesy of FORD MOTOR CO.
Connect the shift cable.

Fig 11: Connecting Shift Cable
Courtesy of FORD MOTOR CO.

NOTE: Before installing the vent tube hose, clean out any obstructions in the hose using low air pressure.

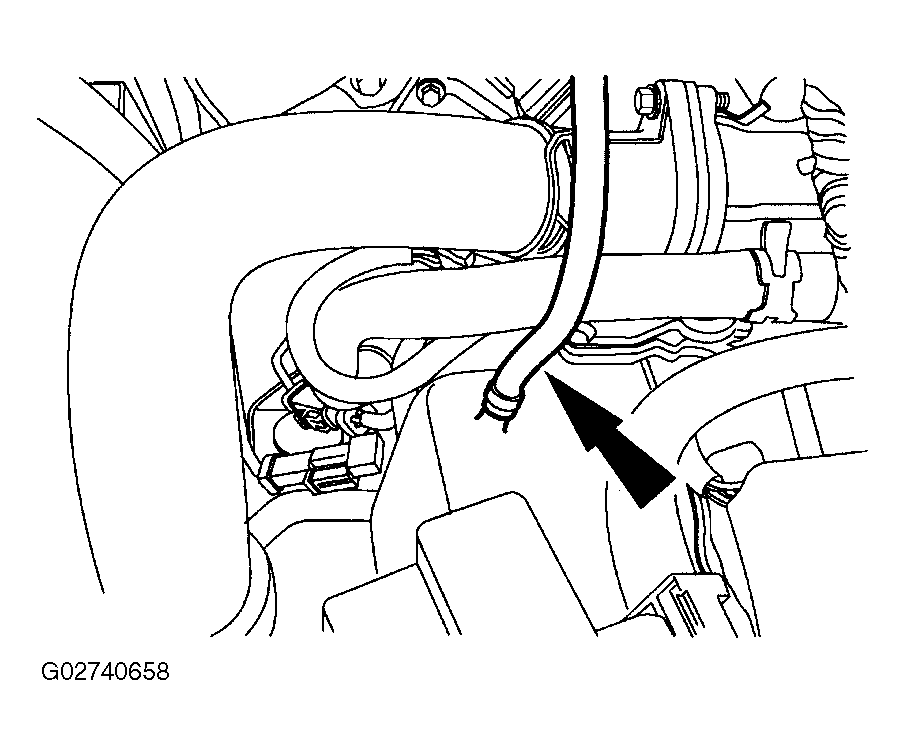

Fig 12: Installing Vent Tube Hose To Fitting On Main Control Cover

Courtesy of FORD MOTOR CO.

Install the vent tube hose to the fitting on the main control cover.
Connect the transaxle harness connector, and the TR sensor connector.

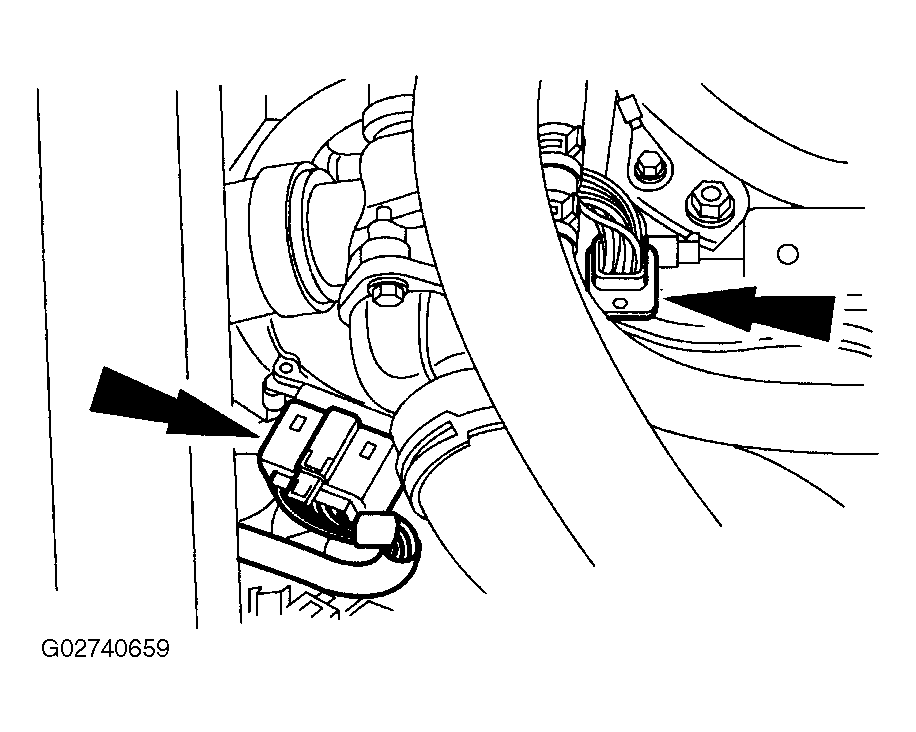

Fig 13: Connecting Transaxle Harness Connector, And TR Sensor Connector
Courtesy of FORD MOTOR CO.
Install the battery tray bracket.

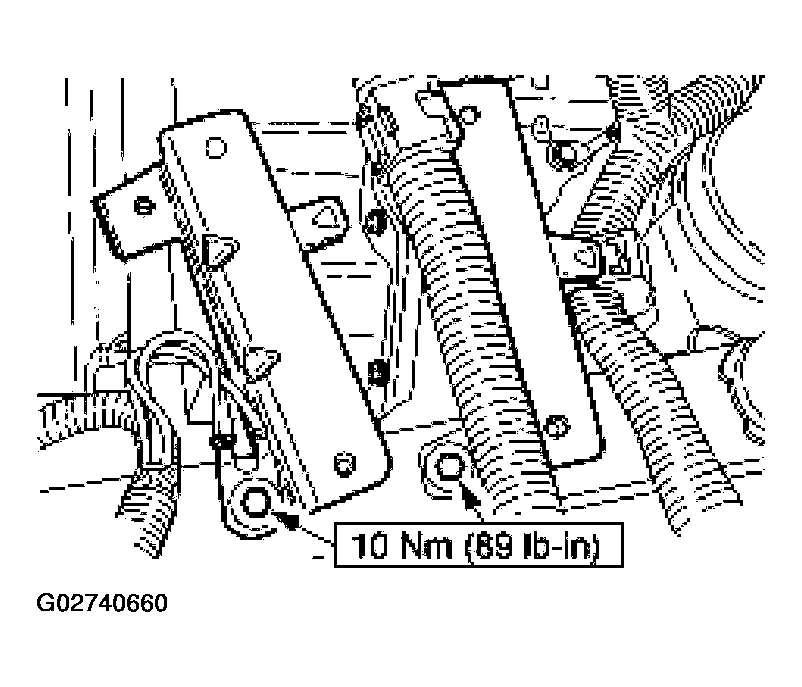

Fig 14: Battery Tray Bracket Bolts Torque Specification
Courtesy of FORD MOTOR CO.
Connect the wiring harness to the battery tray bracket.

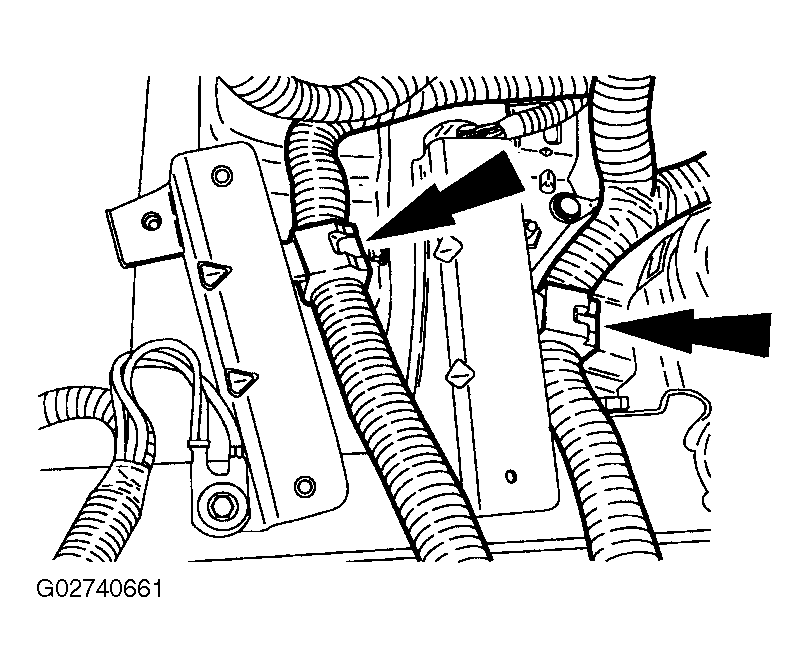

Fig 15: Connecting Wiring Harness To Battery Tray Bracket
Courtesy of FORD MOTOR CO.

NOTE: Before installing the battery tray check the vent tube hose for any obstructions, kinks, or incorrect routing position.

Install the battery tray and battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Fill the engine coolant. For additional information, refer to ENGINE COOLING .

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms can occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 160 km (100 miles) or more to relearn the strategy.

Connect the battery cables.
Check the transmission fluid, add fluid as necessary.
Start the engine and move the transaxle range selector lever through all gear positions. Refill as necessary.
Make sure the vehicle will only start in PARK, and then in NEUTRAL. Verify that the backup lamps illuminate in the REVERSE position.
