Output Shaft Speed (OSS) Sensor: Installation

    NOTE: Apply a light coat of petroleum jelly to the O-ring before installation.

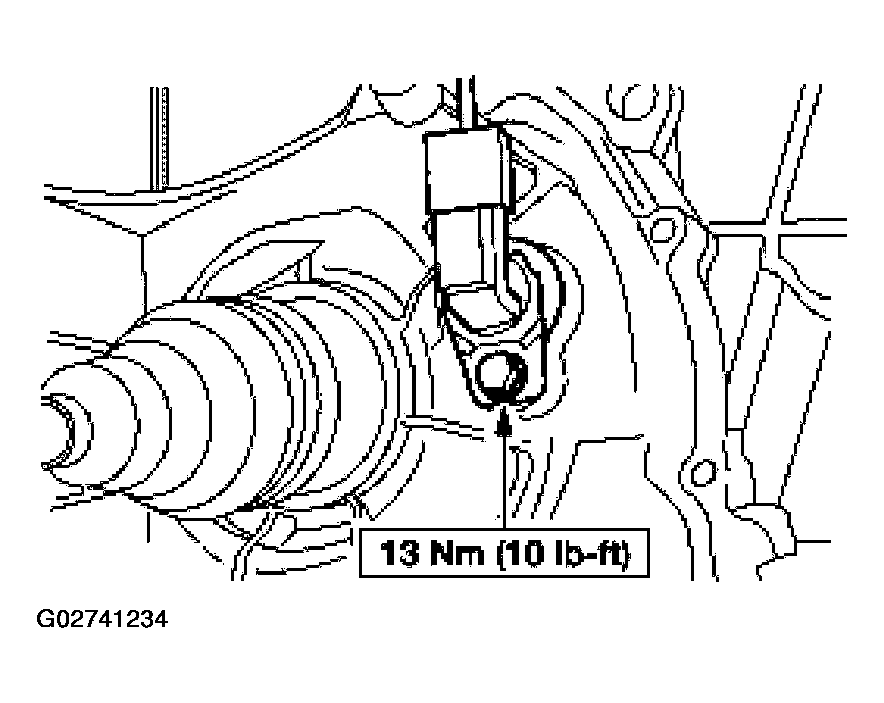

    Fig 1: Installing OSS Sensor
    G02741234Courtesy of FORD MOTOR CO.
  1. Install the OSS sensor.
    • Connect the OSS sensor electrical connector.
  2. Install the splash shield.

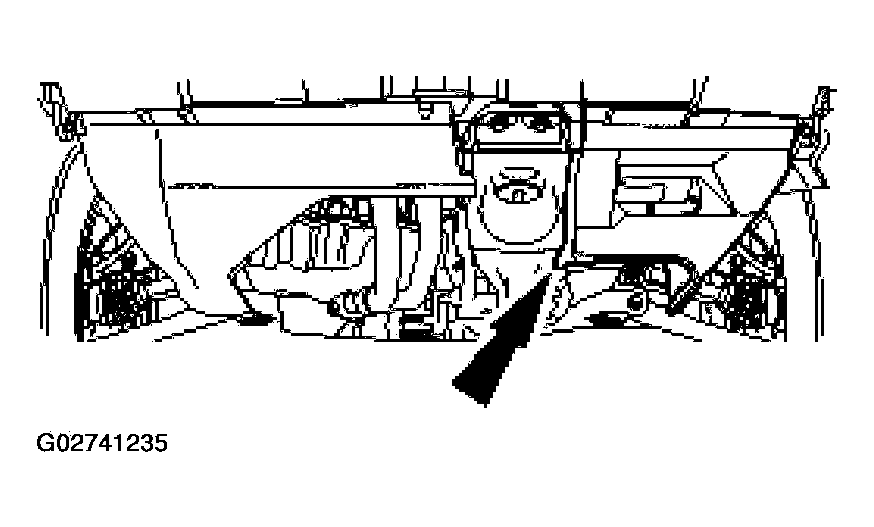

    Fig 2: Installing Splash Shield
    G02741235Courtesy of FORD MOTOR CO.
  3. Install the LH front wheel.
  4. Lower vehicle.
  5. Check the transmission fluid level, add fluid as necessary using MERCON® Multi-Purpose (ATF) Transmission Fluid XT -2-QDX or equivalent meeting MERCON® specification.
  6. Start the engine and move the transaxle range selector lever through all gear positions.
