Escape AWD V6-3.0L VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

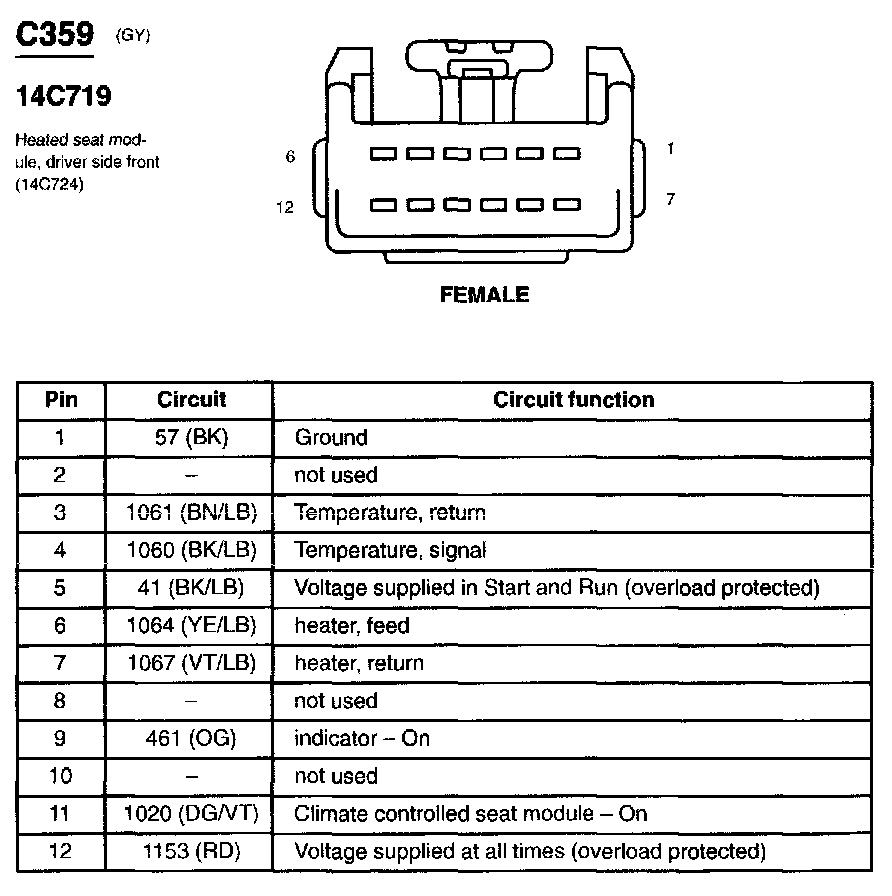

Seat Temperature Control Module
>>
Driver Side Front
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Driver Side Front
