Climate Control Assembly Illumination Bulbs

CLIMATE CONTROL ASSEMBLY ILLUMINATION BULBS

REMOVAL
1. Remove the instrument panel center finish panel.

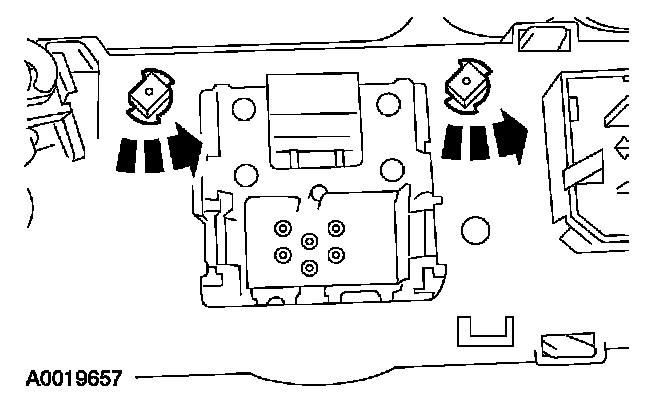

2. Remove the illumination bulb(s) by turning a quarter turn counterclockwise and lifting straight up.

INSTALLATION
1. To install, reverse the removal procedure.
