Camshaft Position Sensor: Service and Repair

CAMSHAFT POSITION (CMP) SENSOR

REMOVAL

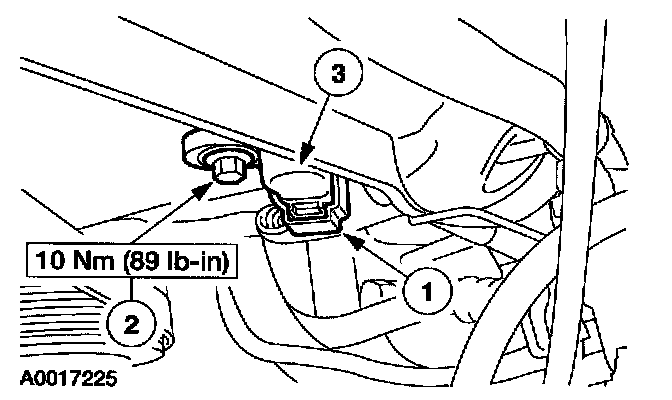

1. Remove the camshaft position (CMP) sensor.
1 Disconnect the electrical connector.
2 Remove the bolt.
3 Remove the sensor.

INSTALLATION
1. To install, reverse the removal procedure.
