Throttle Position Sensor: Service and Repair

THROTTLE POSITION (TP) SENSOR

REMOVAL







1. NOTE: Air cleaner outlet tube is removed for clarity.

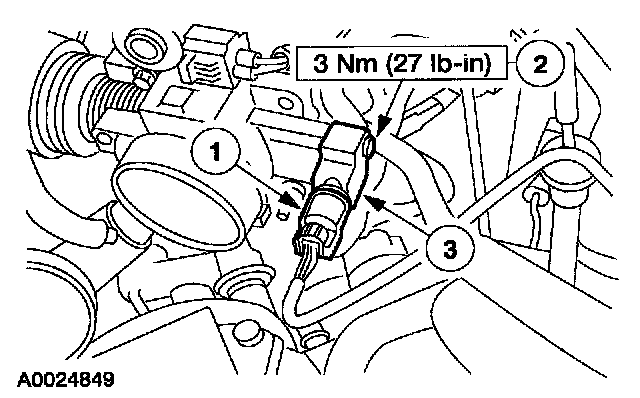

Remove the throttle position (TP) sensor.
1 Disconnect the electrical connector.
2 Remove the screws.
3 Remove the sensor


INSTALLATION
1. To install, reverse the removal procedure.
