Engine Control Module: Service and Repair

POWERTRAIN CONTROL MODULE (PCM)

REMOVAL
1. Disconnect the battery ground cable.

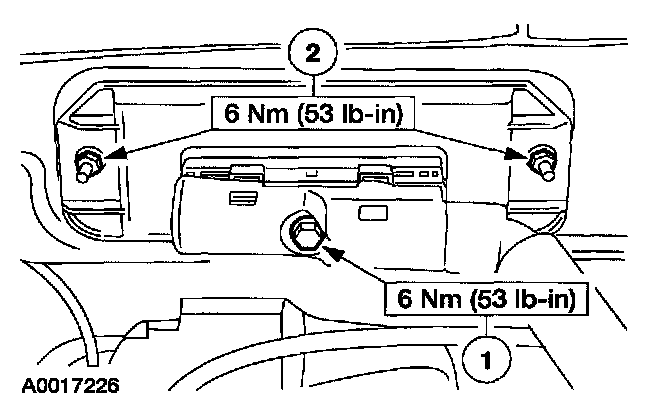

2. Remove the powertrain control module (PCM) cover.
1 Loosen the bolt and disconnect the electrical connector.
2 Remove the nuts and the cover.

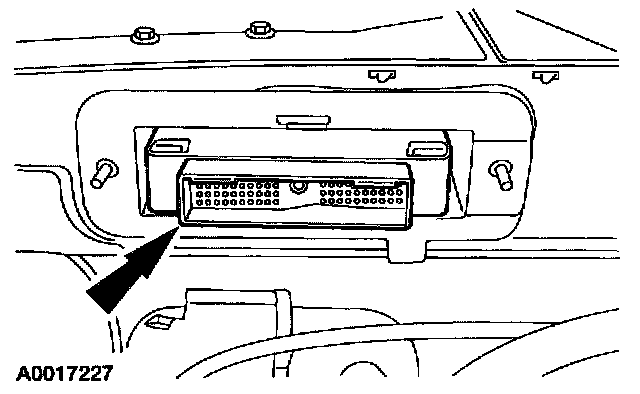

3. Remove the PCM.

INSTALLATION
1. To install, reverse the removal procedure.
