Camshaft, Engine
CamshaftLobe lift
Intake (primary) 4.79 mm (0.188 inch)
Intake (secondary) 4.79 mm (0.188 inch)
Exhaust 4.79 mm (0.188 inch)
Lobe lift-allowable lift loss 0 mm (0.0 inch)
Valve lift @ zero lash
Intake (primary) 9.80 mm (0.388 inch)
Intake (secondary) 9.80 mm (0.388 inch)
Exhaust 9.80 mm (0.388 inch)
Camshaft end play 0.027-0.190 mm
Standard 0.025-0.165 mm (0.001-0.0064 inch)
Service limit 0.190 mm (0.00748 inch)
Journal-to-bearing clearance
Standard 0.025-0.076 mm (0.001-0.0029 inch)
Service limit 0.121 mm (0.0047 inch)
Journal diameters (all) 26.962-26.936 mm (1.061-1.060 inch)
Journal inside diameter (cap assembled) 27.012-26.987 mm
Bearing inside diameter (all) 27.012-26.987 mm (1.063-1.062 inch)

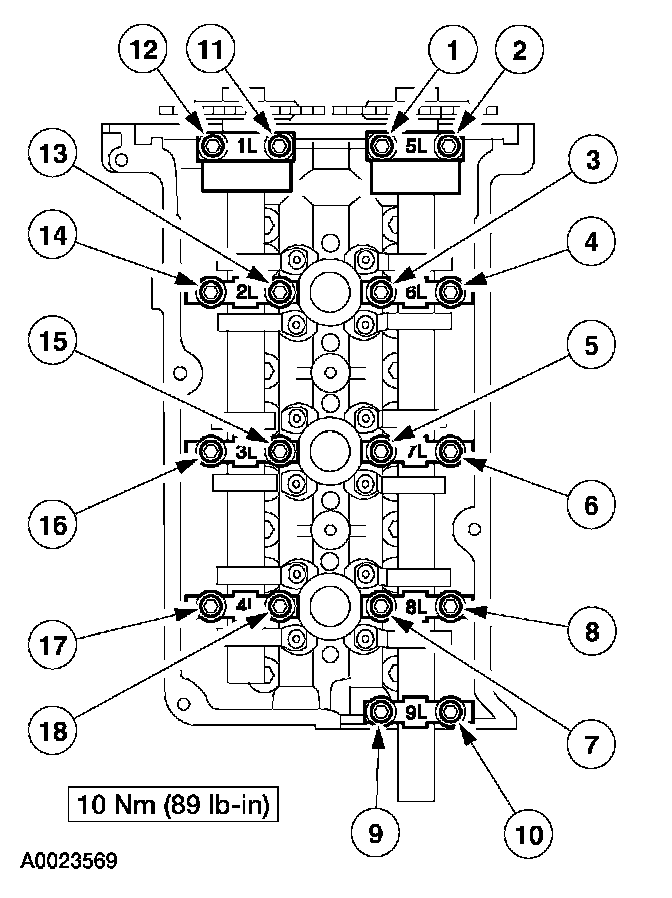

Camshaft Cap bolts 10 Nm (89 in.lbs.)
