Test F

PINPOINT TEST F: THE VENT POWER WINDOWS ARE INOPERATIVE

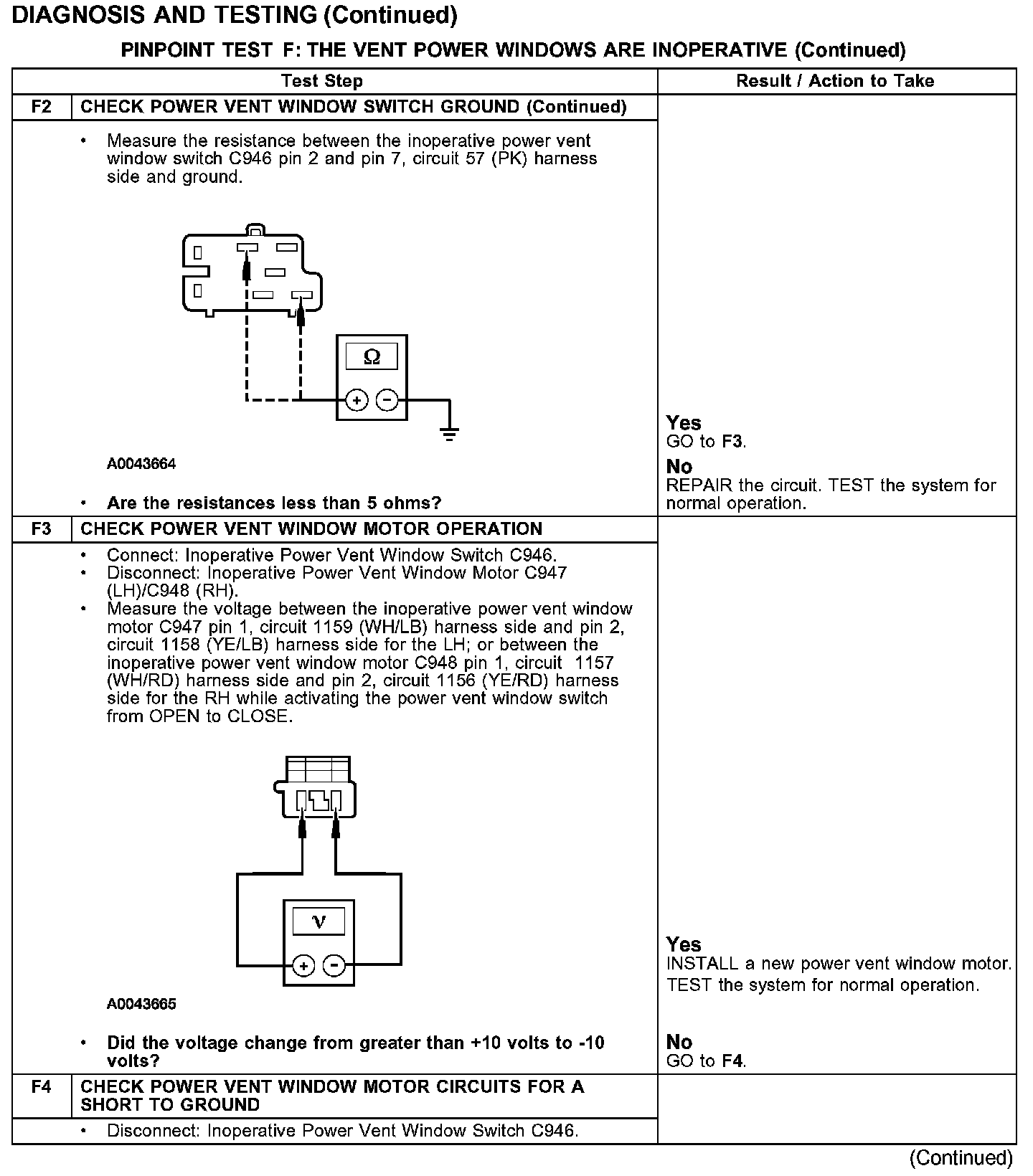

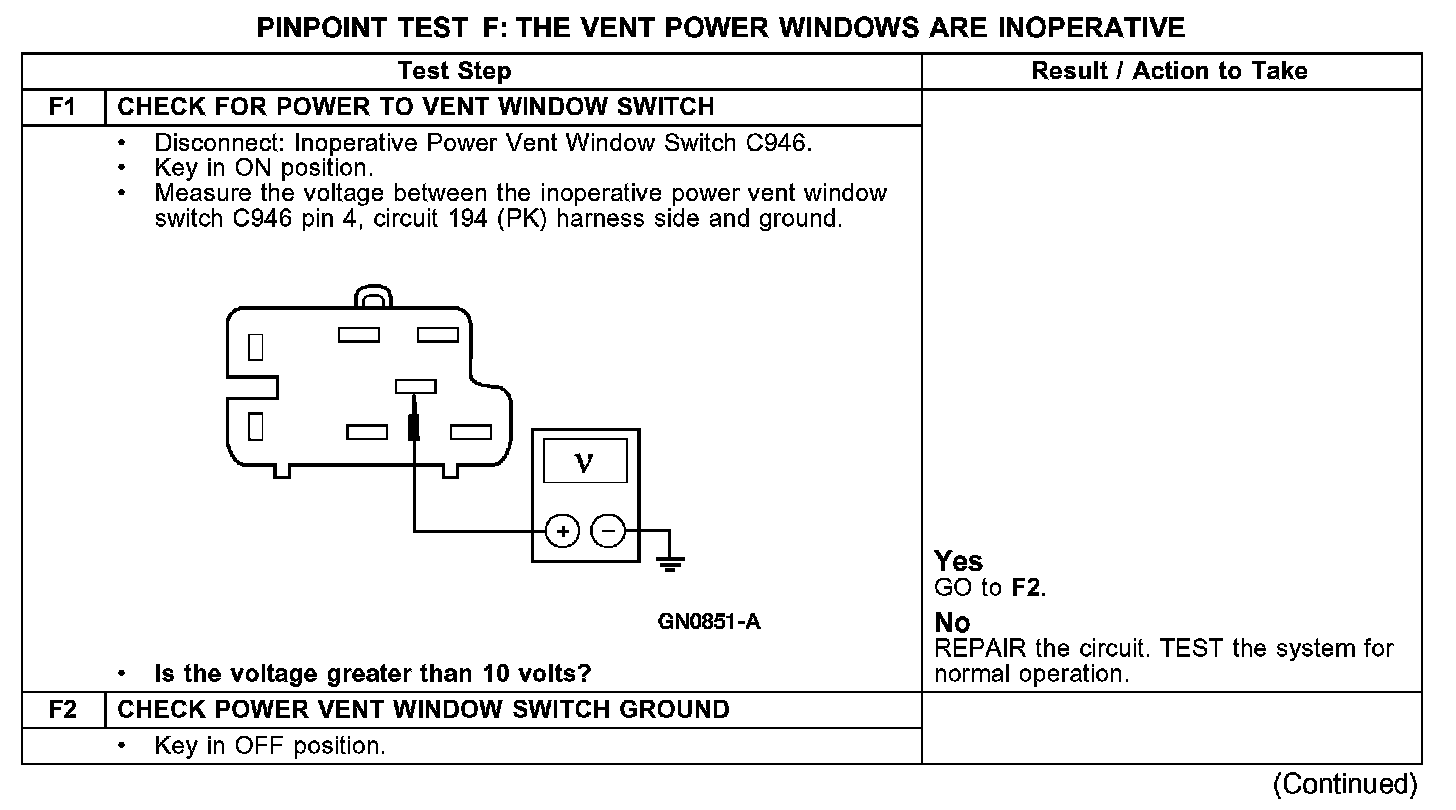

Test F1-F2:






Test F2-F4:

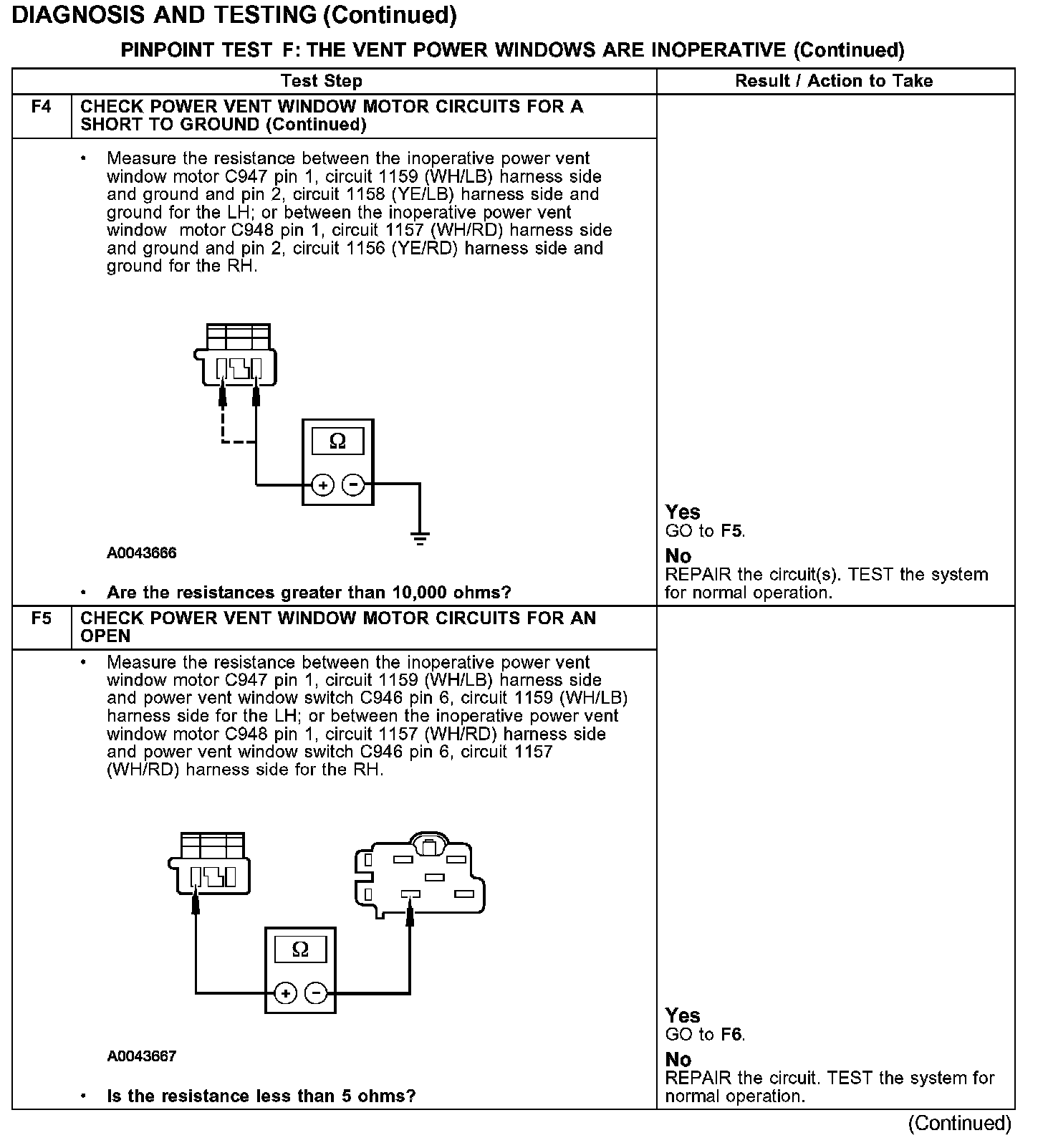

Test F4-F5:

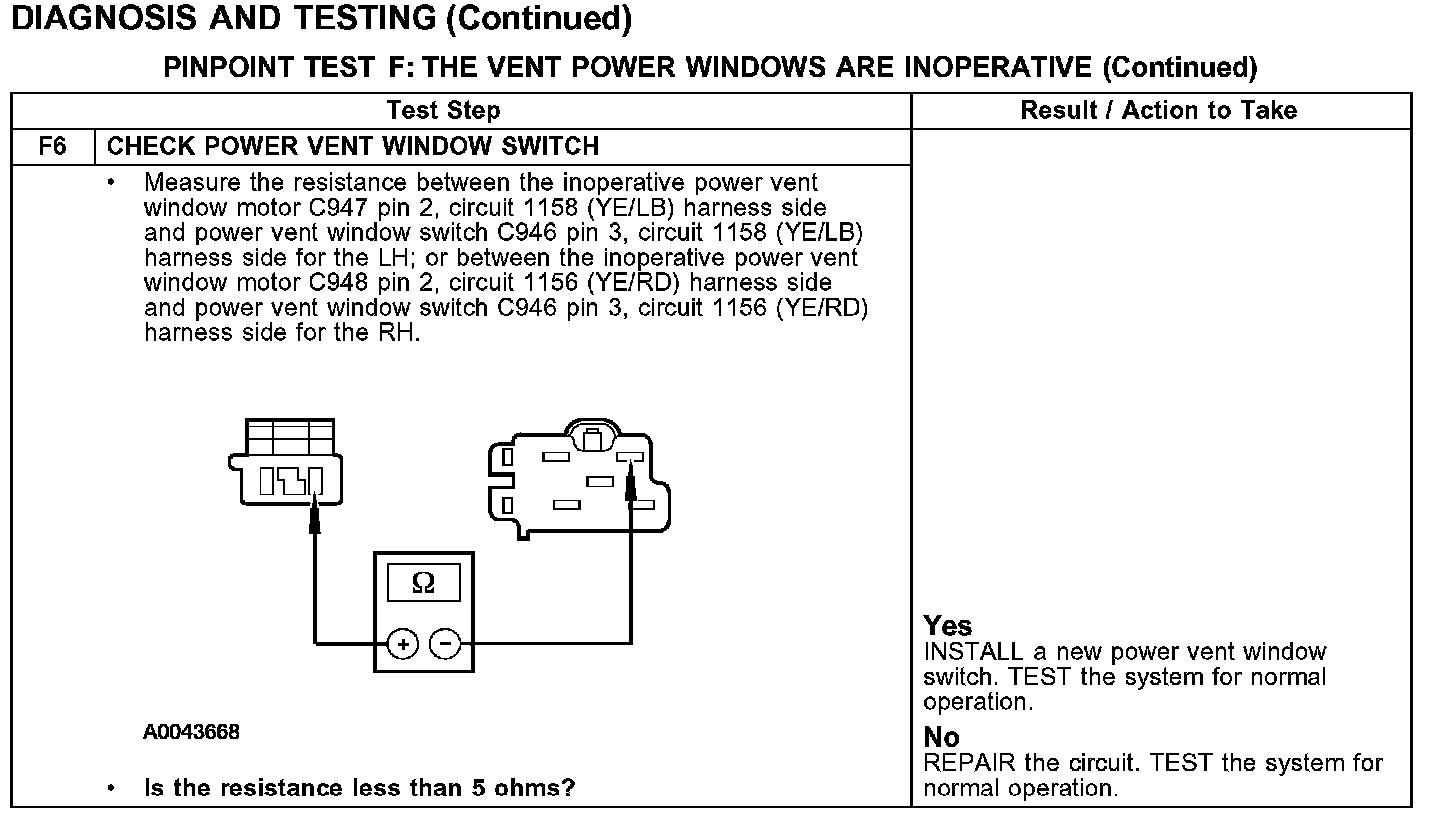

Test F6:
