Manifold Pressure/Vacuum Sensor: Service and Repair

MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR

REMOVAL

1. CAUTION: Make sure the ignition switch is in the OFF position prior to working on the electronic engine controls.

Turn the ignition switch to the OFF position.

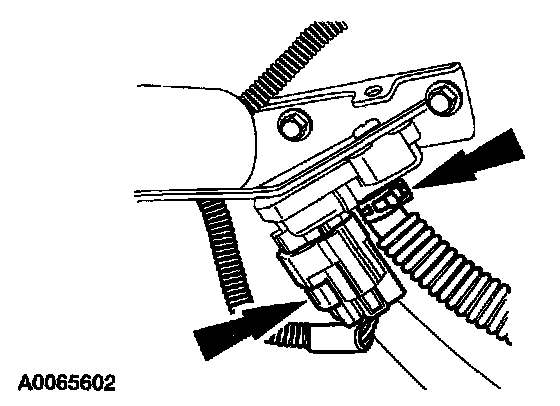

2. Disconnect the manifold absolute pressure (MAP) sensor.
- Disconnect the pressure hose.
- Disconnect the electrical connector.

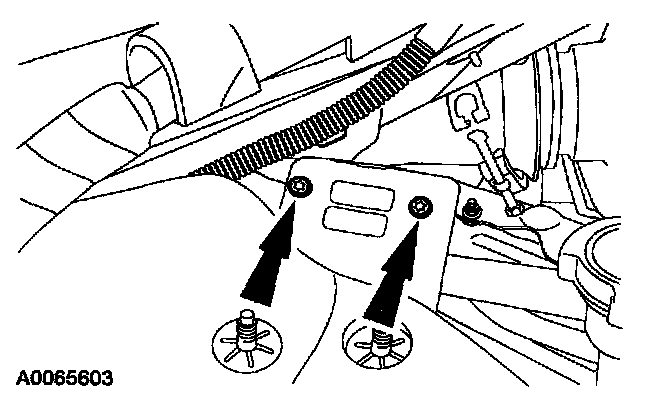

3. Remove the mounting screws and the MAP sensor.

INSTALLATION
1. To install, reverse the removal procedure.
