Ignition Coil: Service and Repair

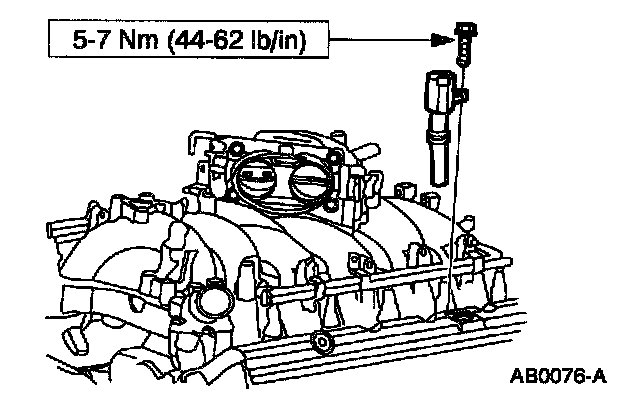

IGNITION COIL-ON PLUG

REMOVAL







1. Disconnect the wiring at the coil.
2. Remove the bolt and the coil.

INSTALLATION







1. NOTE: Remove any foreign material from spark plug wells with compressed air.

To install, reverse the removal procedure.
