Tests AX: Exhaust Gas Recirculation Throttle Control
PINPOINT TEST AX:
EXHAUST GAS RECIRCULATION
THROTTLE CONTROL

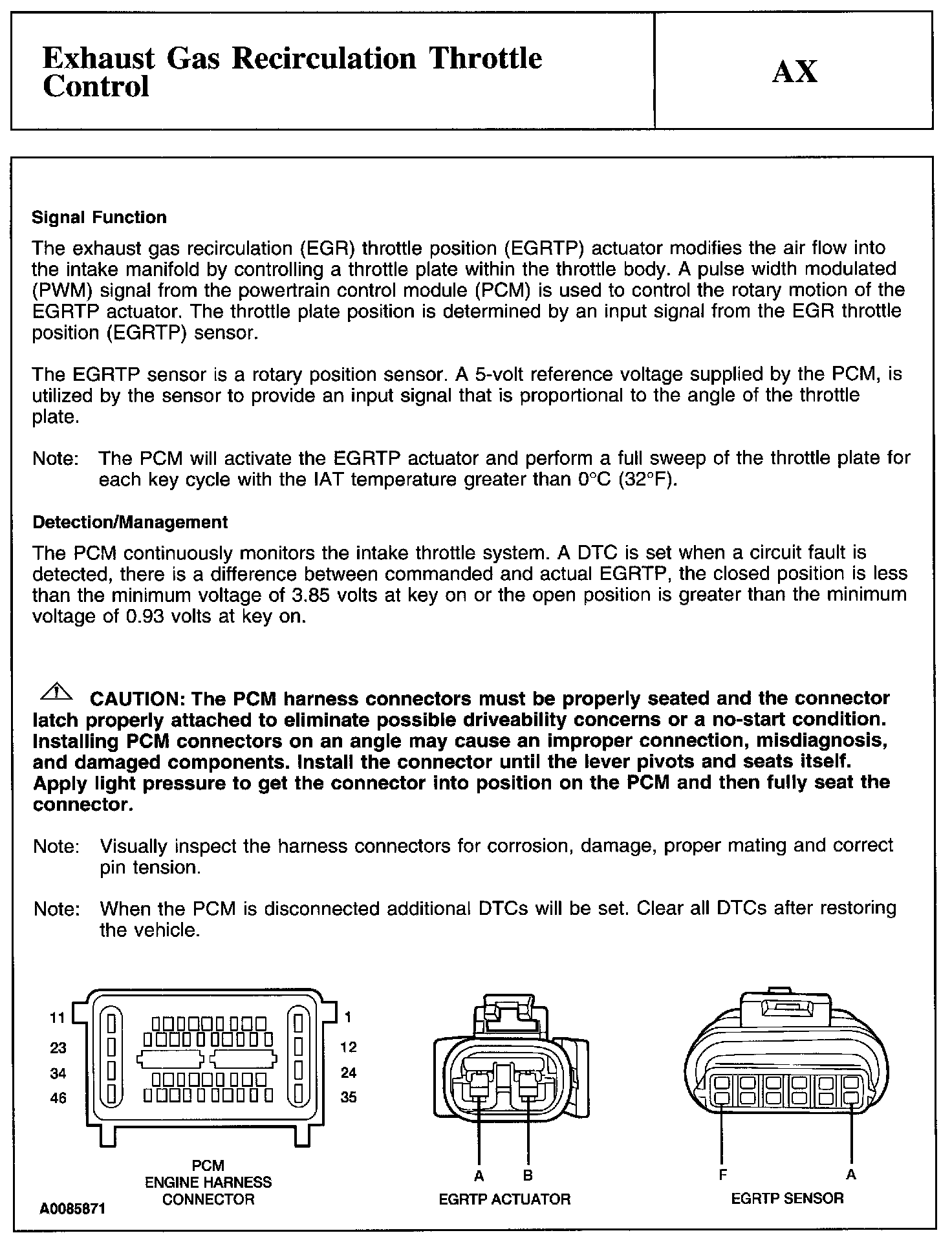

Description, Caution And Schematic:

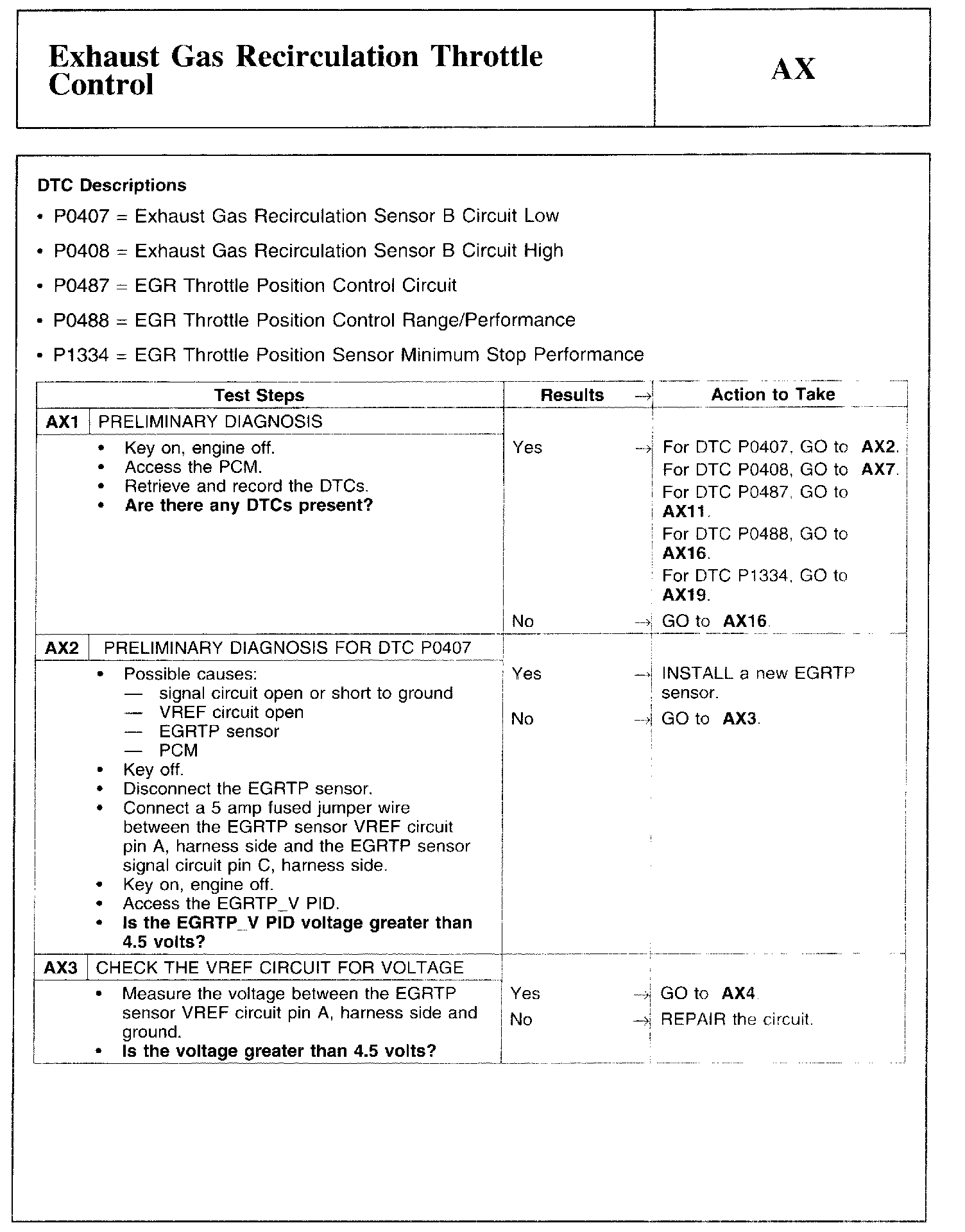

Description, Test AX1-AX3:

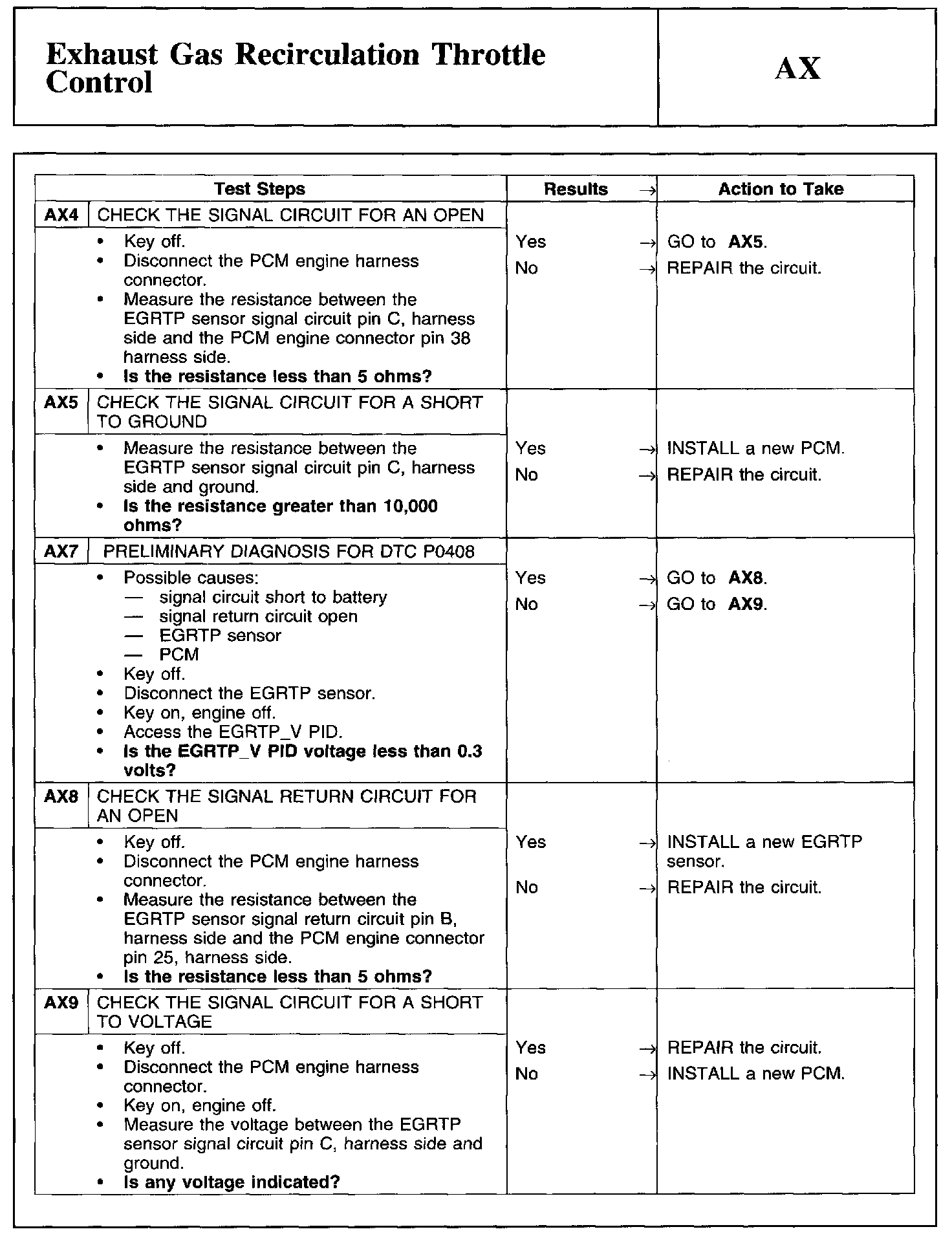

Test AX4-AX9:

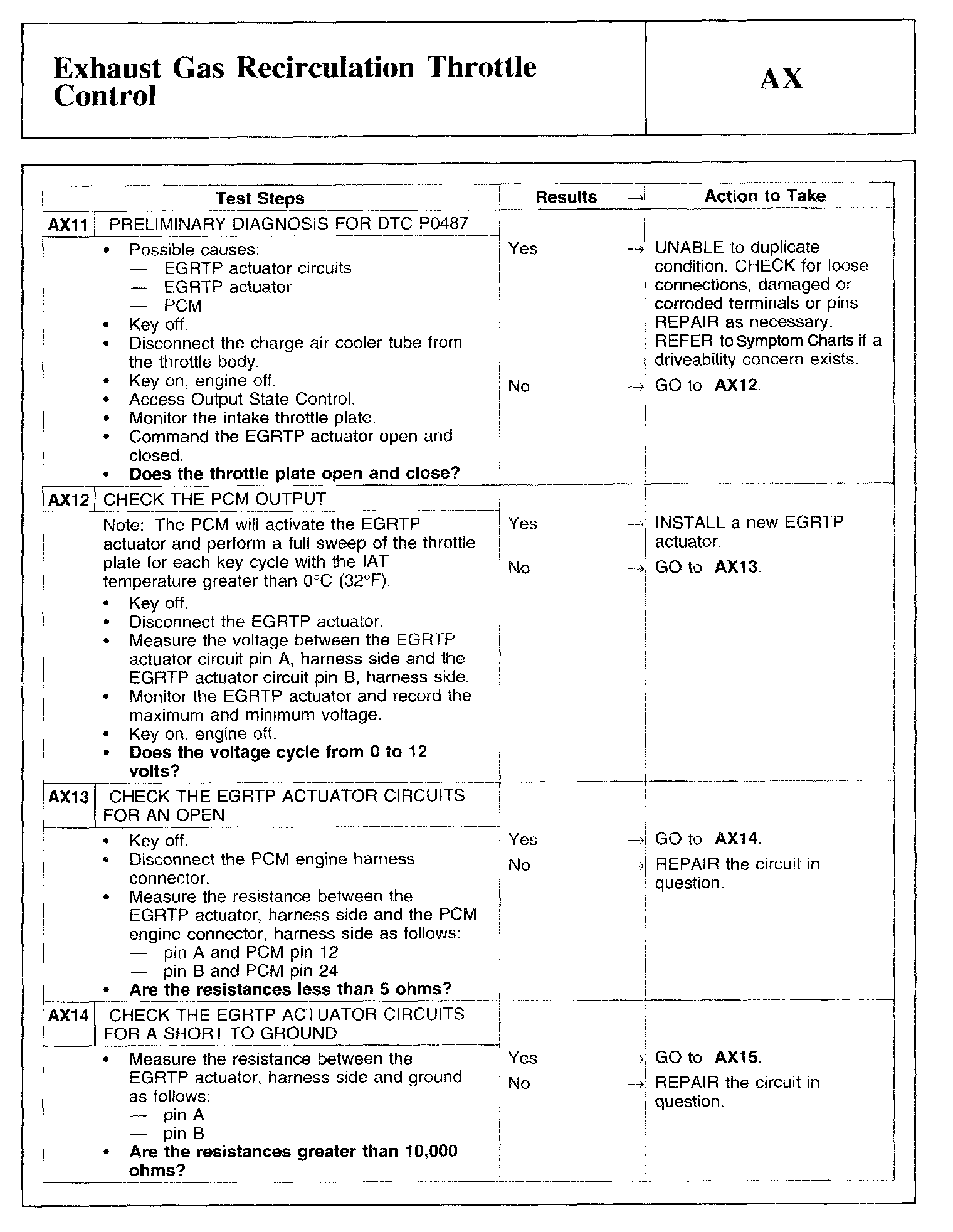

Test AX11-AX14:

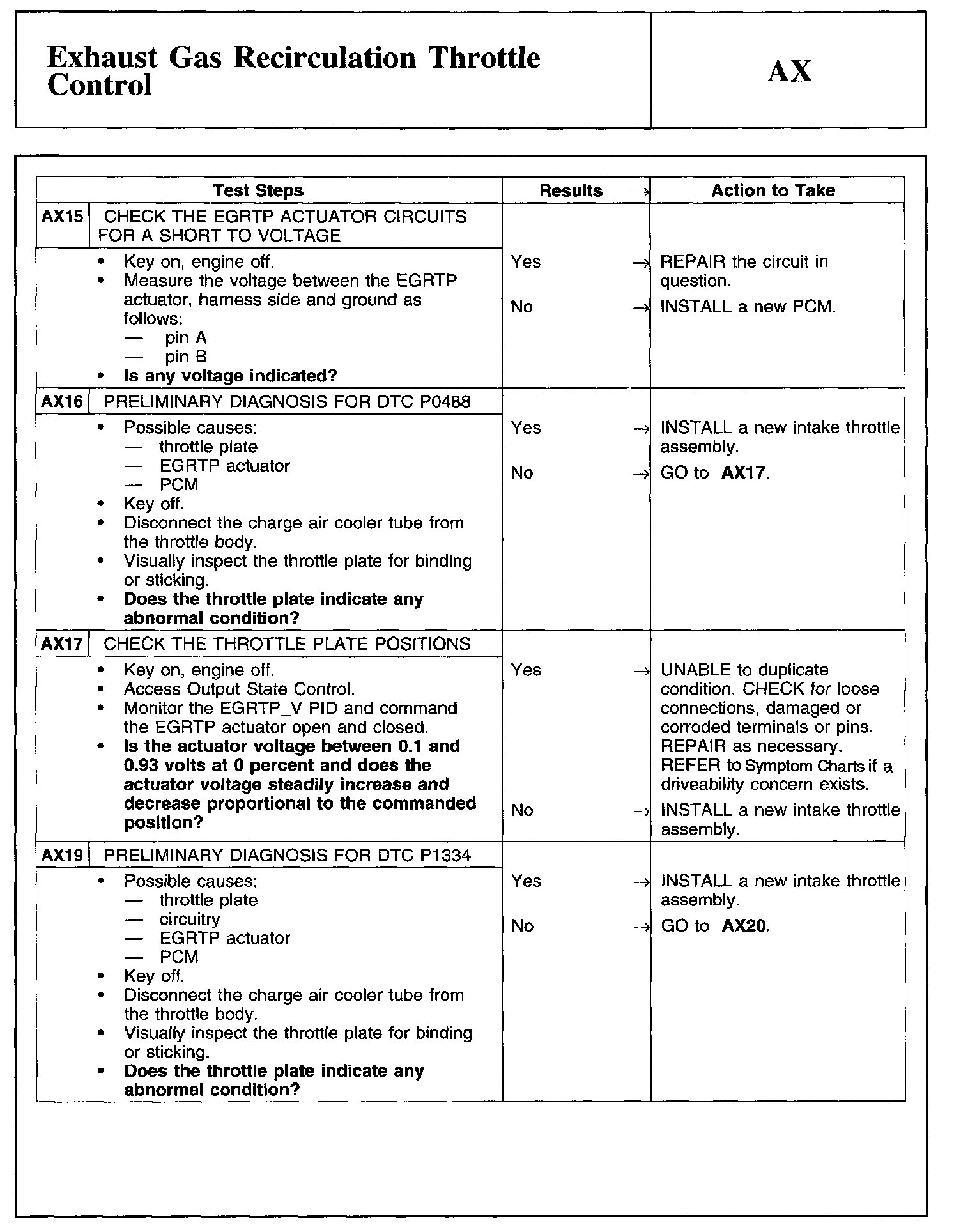

Test AX15-AX19:

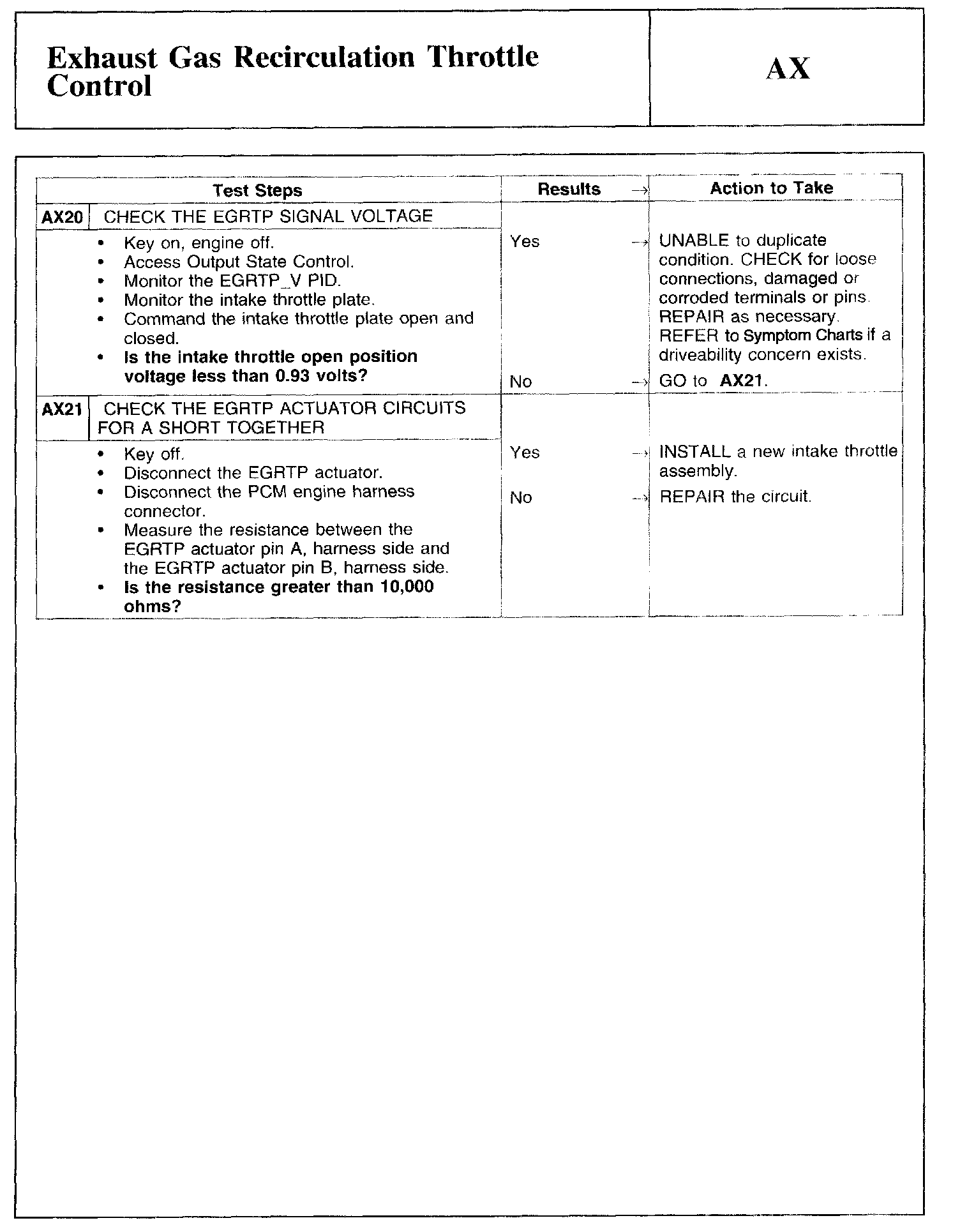

Test AX20-AX21:
