Pinpoint Test A: No Communication With The Air Suspension Module

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe Adaptor(s) may damage the connector.

A1 CHECK AIR SUSPENSION MODULE FOR VOLTAGE

Key in OFF position.
Disconnect: Air Suspension Module C2131a.
Key in ON position.

Measure the voltage between the air suspension module C2131a, harness side and ground as follows:

AIR SUSPENSION CONTROL MODULE CONNECTOR & CIRCUIT REFERENCE

Air Suspension Control Module C2131a	Circuit
pin 1	418 (DG/YE)
pin 15	418 (DG/YE)
pin 16	298 (VT/OG)

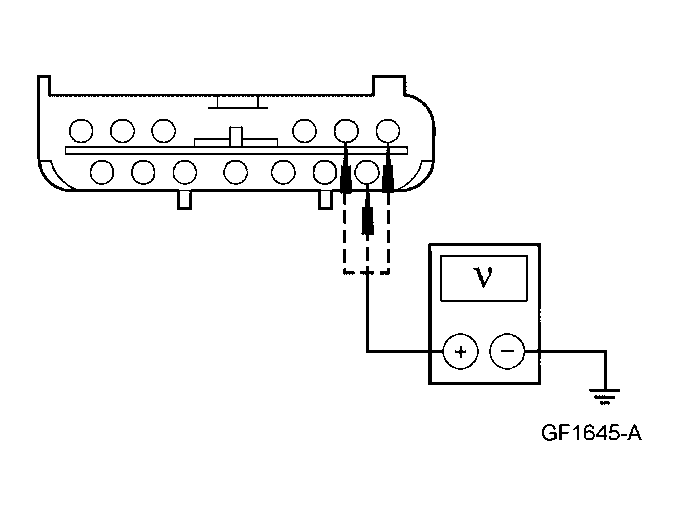

Fig 1: Measuring Voltage Between Air Suspension Module C2131A And Ground

Courtesy of FORD MOTOR CO.

Is the voltage greater than 10 volts?

Yes : GO to A2.

No : VERIFY the CJB fuse 4 (10A) and the BJB fuse 5 (10A) are OK. If OK, REPAIR the circuit. CLEAR the diagnostic trouble codes (DTCs). REPEAT the self-test.

A2 CHECK AIR SUSPENSION MODULE GROUND CIRCUITS FOR AN OPEN
- Measure the resistance between the air suspension module C2131a-6, circuit 676 (PK/OG), harness side and ground.

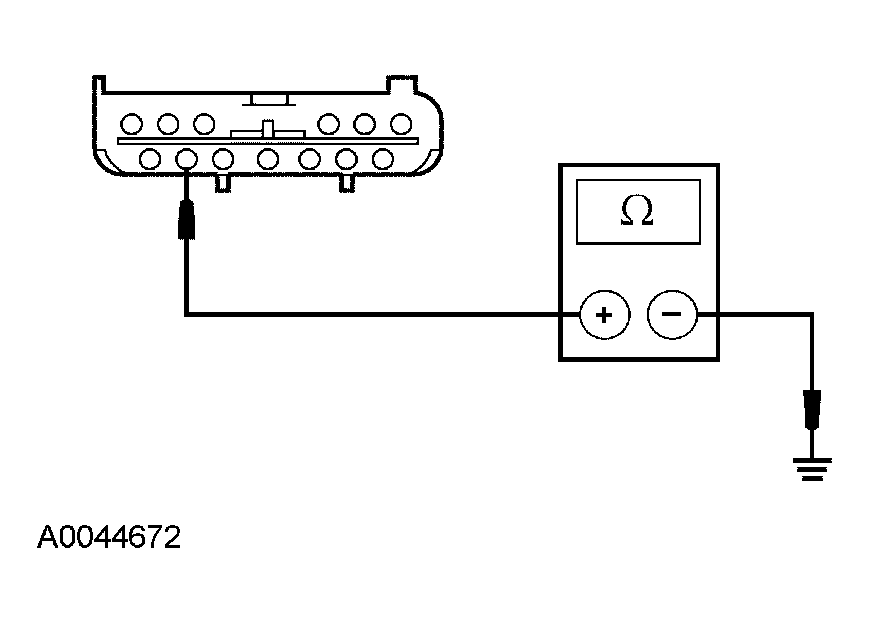

  Fig 2: Measuring Resistance Between Air Suspension Module C2131a-6 Circuit 676 (PK/OG) And Ground
  Courtesy of FORD MOTOR CO.
- Is the resistance less than 5 ohms?
Yes : REFER to MODULE COMMUNICATIONS NETWORK to diagnose the communication network.

No : REPAIR the circuit. CLEAR the DTCs. REPEAT the self-test.
