Roof opening panel switch (14529), with medium overhead console

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

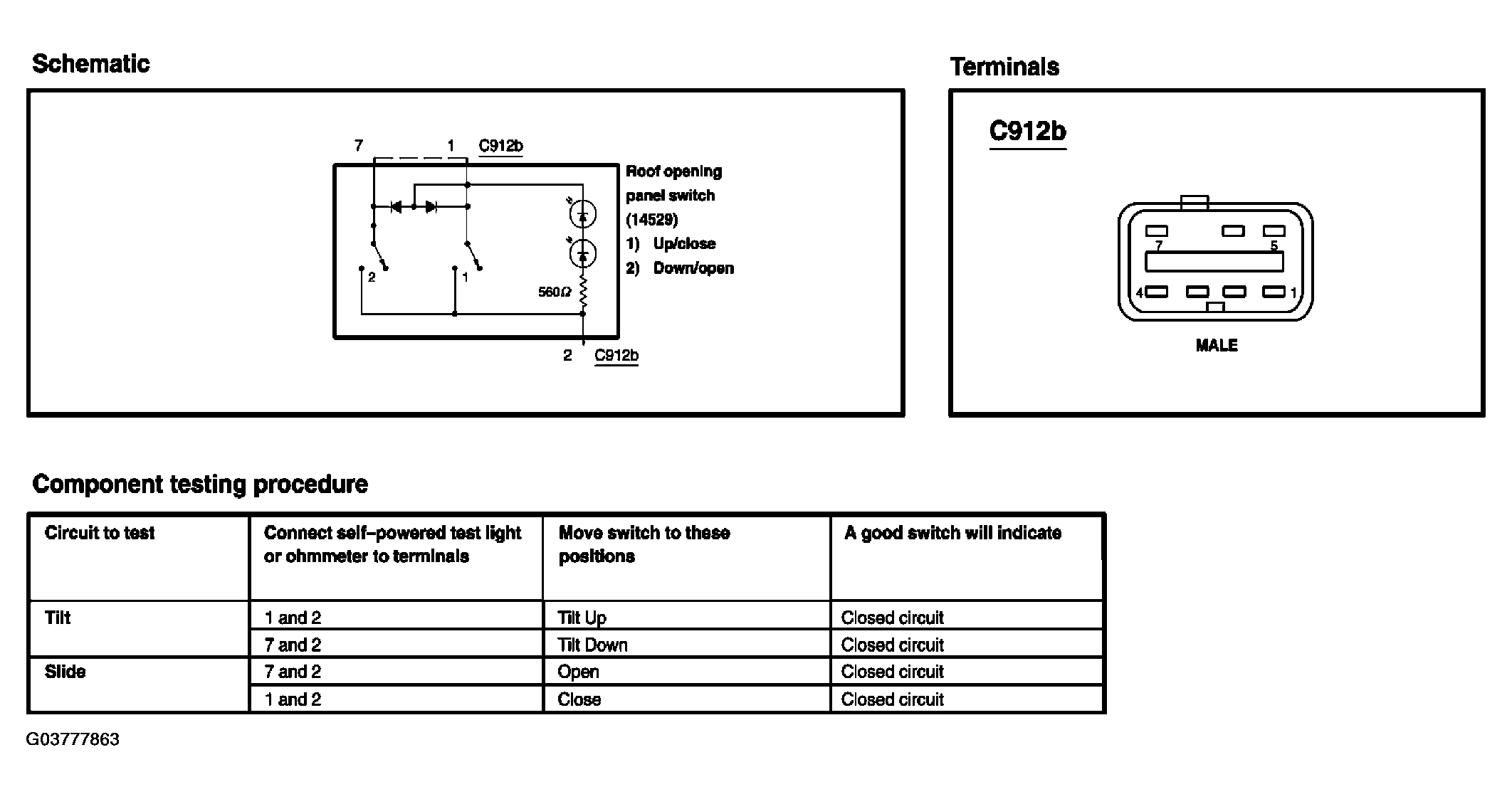

Fig 1: Testing Roof Opening Panel Switch (14529), With Medium Overhead Console
G03777863Courtesy of FORD MOTOR CO.
