Engine Support Insulators: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

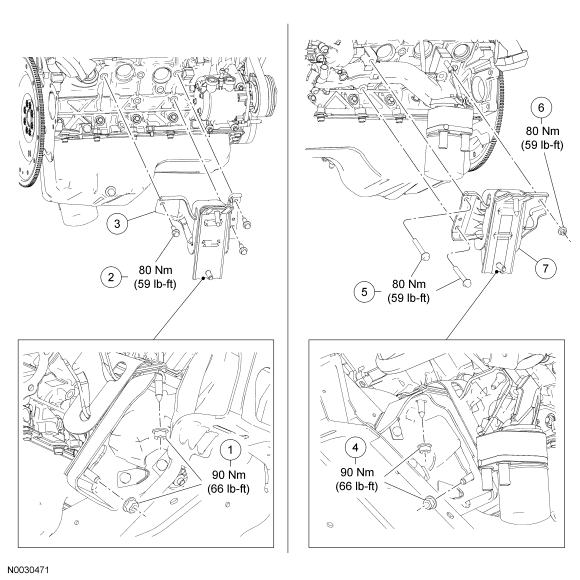

4.6L (2V) shown, 5.4L (2V) similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W707251 | RH engine support insulator-to-engine support insulator bracket nuts (2 required) |
| 2 | N808859 | RH engine support insulator-to-cylinder block bolt (3 required) |
| 3 | 6B038 | RH engine support insulator |
| 4 | N808859 | LH engine support insulator-to-engine support insulator bracket nuts (2 required) |
| 5 | W806253 | LH engine support insulator-to-cylinder block bolts (2 required for 4.6L) (3 required for 5.4L) |
| 6 | N808859 | LH engine support insulator-to-cylinder block nut (4.6L only) |
| 7 | 6B032 | LH engine support insulator |
