Intake Manifold - 5.4L: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Motorcraft Metal Surface Prep ZC-31 |
- |
| Silicone Gasket Remover ZC-30 |
- |

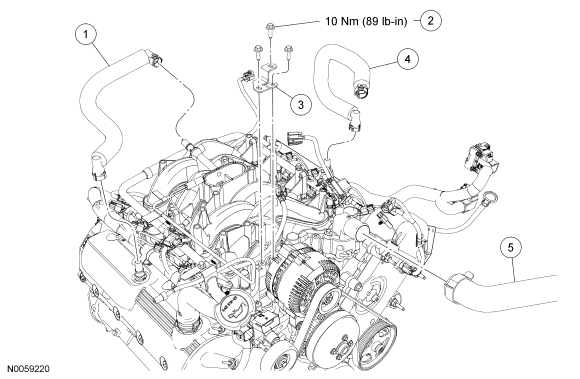

| Item | Part Number | Description |
|---|---|---|
| 1 | 6K817 | PCV tube |
| 2 | N807309 | Generator support bracket bolt (3 required) |
| 3 | 10153 | Generator support bracket |
| 4 | 6758 | Crankcase vent tube |
| 5 | - | Upper radiator hose |

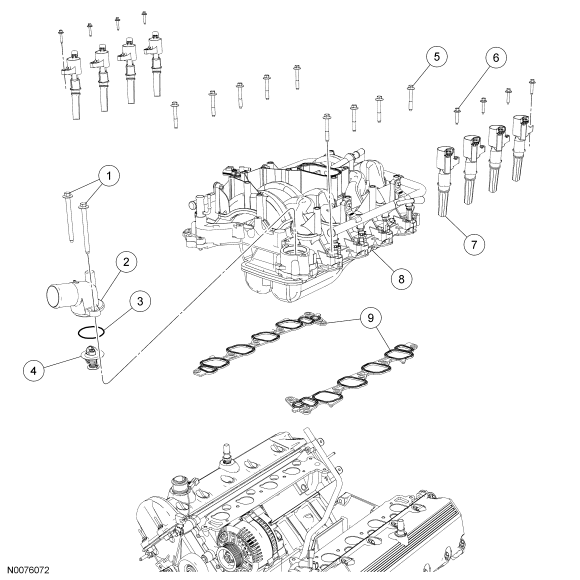

| Item | Part Number | Description |
|---|---|---|
| 1 | N806178 | Thermostat housing bolts (2 required) |
| 2 | 8594 | Thermostat housing |
| 3 | N806807 | Thermostat housing O-ring seal |
| 4 | 8575 | Thermostat |
| 5 | W503300 | Intake manifold bolt (9 required) |
| 6 | N606500 | Ignition coil bolt (8 required) |
| 7 | 12A366 | Ignition coil (8 required) |
| 8 | 9S455 | Intake manifold |
| 9 | 9439 | Intake manifold gaskets (2 required) |
