Valve Train Components - Exploded View

WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

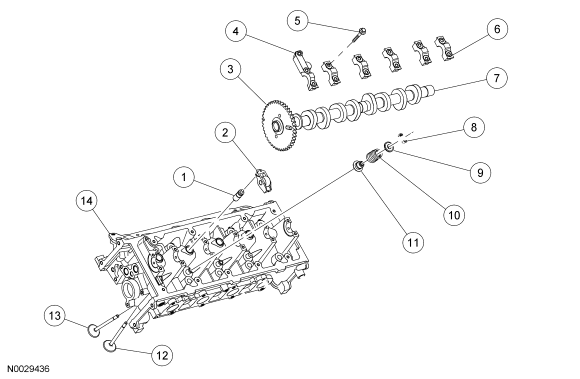

Fig 1: Exploded View Of Valve Train Components - 4.6L Engine

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	6529	Camshaft roller follower (8 required)
2	6518	Valve spring retainer key (16 required)
3	6514	Valve spring retainer (8 required)
4	6513	Valve spring (8 required)
5	6A517	Valve stem seal (8 required)
6	N811085	Camshaft sprocket bolt
7	N806164	Camshaft sprocket bolt washer
8	6256	Camshaft sprocket
9	6265	Camshaft gear spacer
10	N807352	Camshaft bearing cap assembly bolt (13 required)
11	6B280	Camshaft bearing cap
12	6B280	Camshaft bearing cap
13	6A274	Camshaft
14	6C501	Hydraulic lash adjuster (8 required)

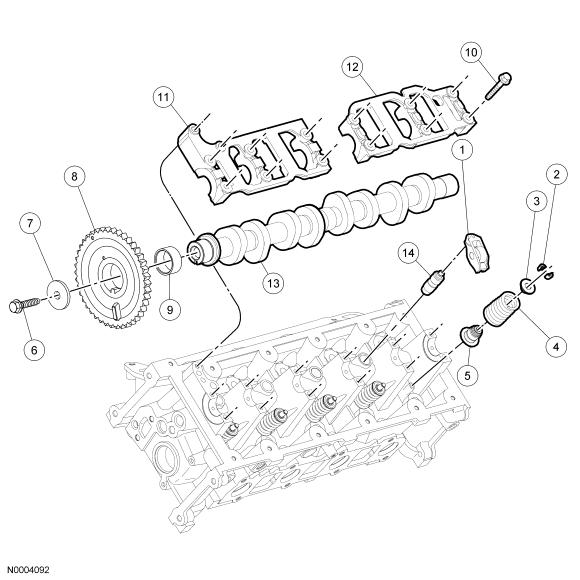

Fig 2: Exploded View Of Valve Train Components - 5.4L Engine

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	6C501	Hydraulic lash adjuster (8 required)
2	6529	Roller follower (8 required)
3	6C255	Camshaft sprocket
4	6B284	Camshaft bearing cap
5	N807834	Camshaft bearing cap assembly bolt (13 required)
6	6B280	Camshaft bearing cap (5 required)
7	6C255	Camshaft
8	6518	Valve spring retainer key (16 required)
9	6514	Valve spring retainer (8 required)
10	6513	Valve spring (8 required)
11	6A517	Valve stem seal (8 required)
12	6507	Intake valve (4 required)
13	6505	Exhaust valve (4 required)
14	6050	Cylinder head

For additional information, refer to the procedures.
