Wheel Alignment Angles: Toe

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

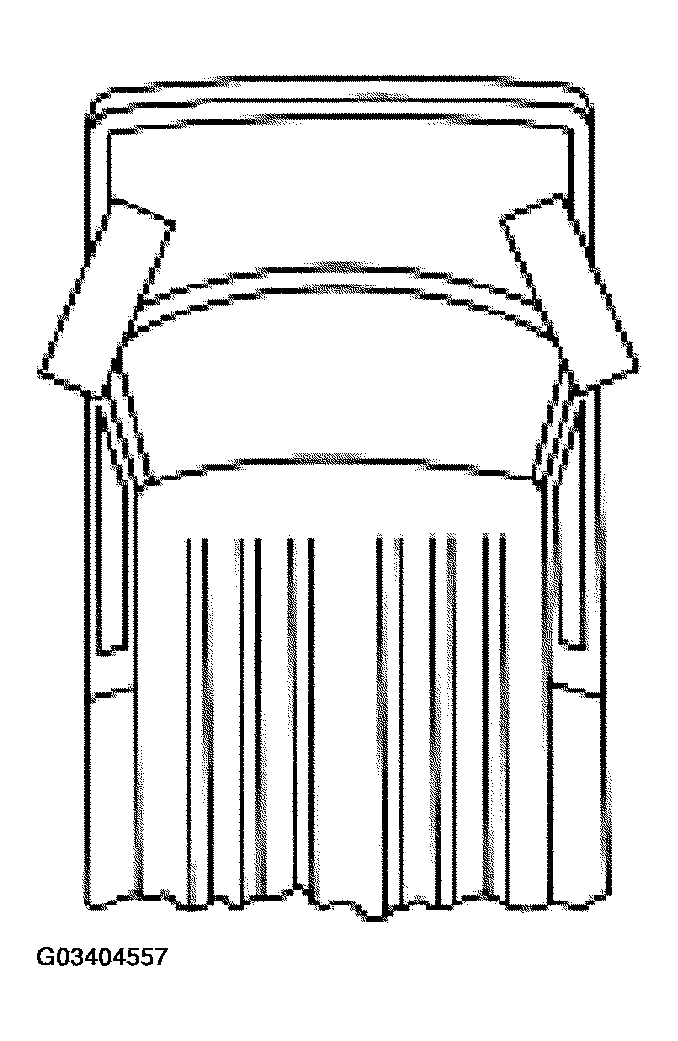

Fig 1: Identifying Positive Toe (Toe In)

Courtesy of FORD MOTOR CO.

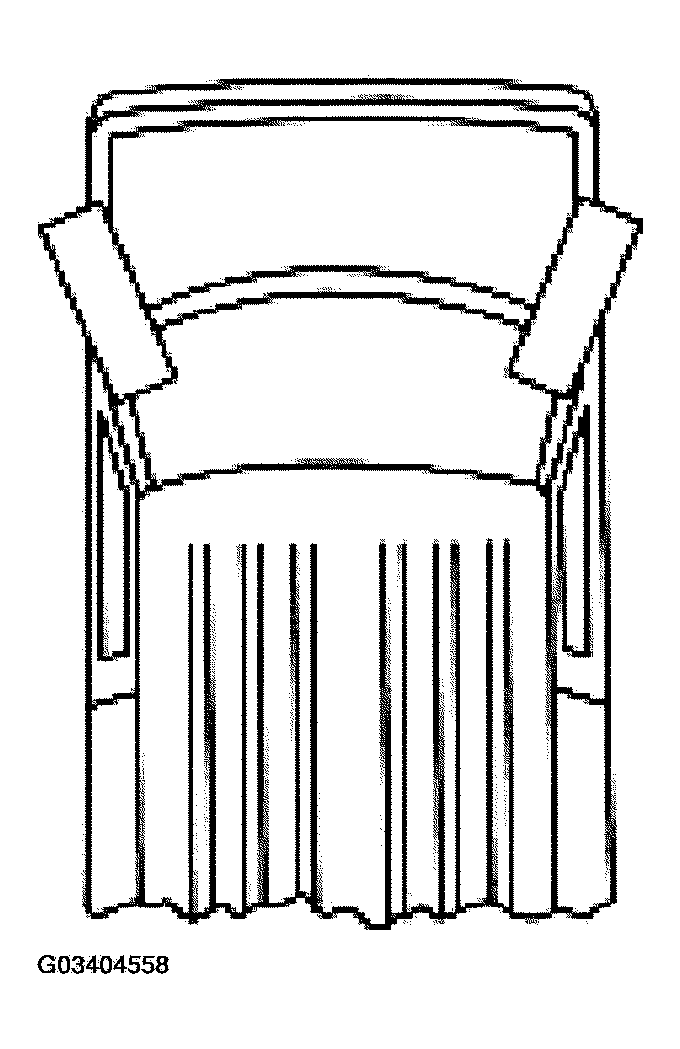

Fig 2: Identifying Negative Toe (Toe Out)

Courtesy of FORD MOTOR CO.

The vehicle toe setting:

affects tire wear and directional stability.
must be checked after adding aftermarket equipment, such as a snowplow or body.
