Intake Manifold Assembly - 5.4L: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |

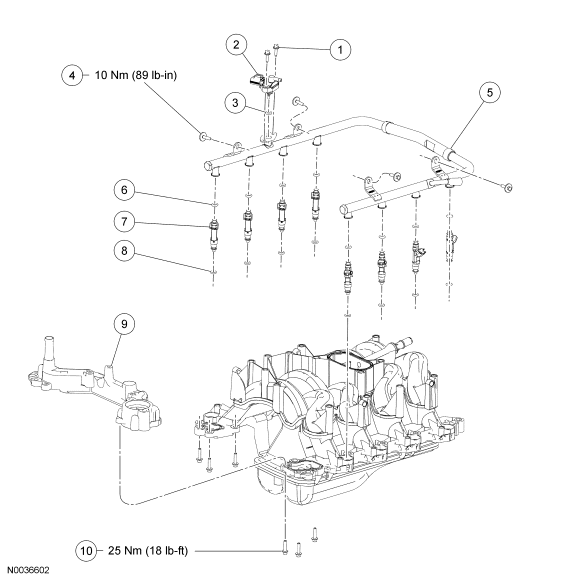

| Item | Part Number | Description |
|---|---|---|
| 1 | W705870 | Fuel rail pressure and temperature sensor bolt (2 required) |
| 2 | 9G756 | Fuel rail pressure and temperature sensor |
| 3 | - | Fuel rail pressure and temperature sensor O-ring seal |
| 4 | W710700 | Fuel rail bolt (4 required) |
| 5 | 9F792 | Fuel rail |
| 6 | - | Fuel injector-to-fuel rail O-ring seal (8 required) |
| 7 | 9F593 | Fuel injector (8 required) |
| 8 | - | Fuel injector-to-intake manifold O-ring seal (8 required) |
| 9 | 8C369 | Engine coolant crossover assembly |
| 10 | W503282 | Engine coolant crossover assembly bolt (6 required) |
