Oil Level Indicator and Tube: Notes

WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Material

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil
XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent		 WSS-M2C930-A

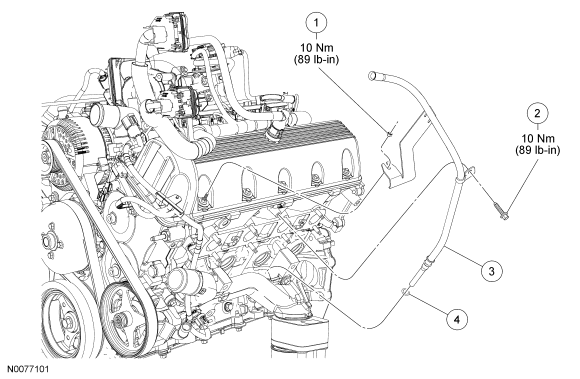

Fig 1: Exploded View Of Oil Level Indicator & Tube With Torque Specifications - 4.6L (2V) Engine
GF0044546Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N805320 Oil level indicator tube support bracket nut
2 N605891 Oil level indicator tube support bracket bolt
3 6K873 Oil level indicator and tube
4 - Oil level indicator tube O-ring seal

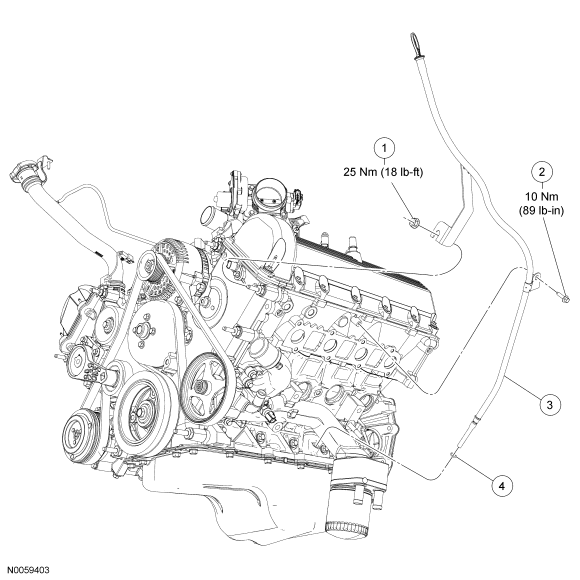

Fig 2: Exploded View Of Oil Level Indicator Tube - 5.4L With Torque Specifications
GF0011670Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N804758 Oil level indicator tube support bracket nut
2 N605892 Oil level indicator tube support bracket bolt
3 6K873 Oil level indicator and tube
4 - Oil level indicator tube O-ring seal
