Exterior Rear View Mirror Switch: Terminals

WARNING: This page is about a different car, the 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

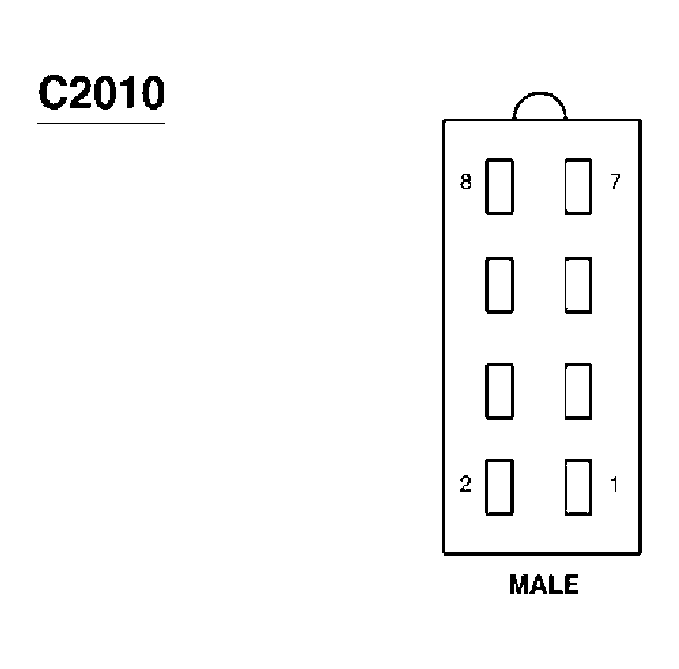

Fig 1: Identifying Connector Terminals C2010
G04596055Courtesy of FORD MOTOR CO.
