WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

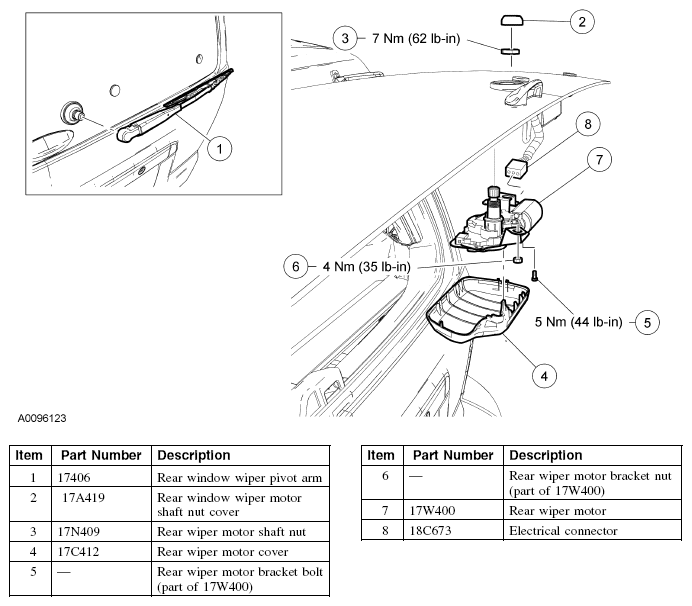

Fig 1: Exploded View Of Wiper And Washer System Rear With Torque Specifications
Courtesy of FORD MOTOR CO.
For additional information, refer to appropriate procedures.
