Power Steering Pump to Steering Gear Pressure Line: Notes

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.

Installer Set, Teflon® Seal 211-D027 (D90P-3517-A) or equivalent

MATERIAL

Item	Specification
MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada)	MERCON®

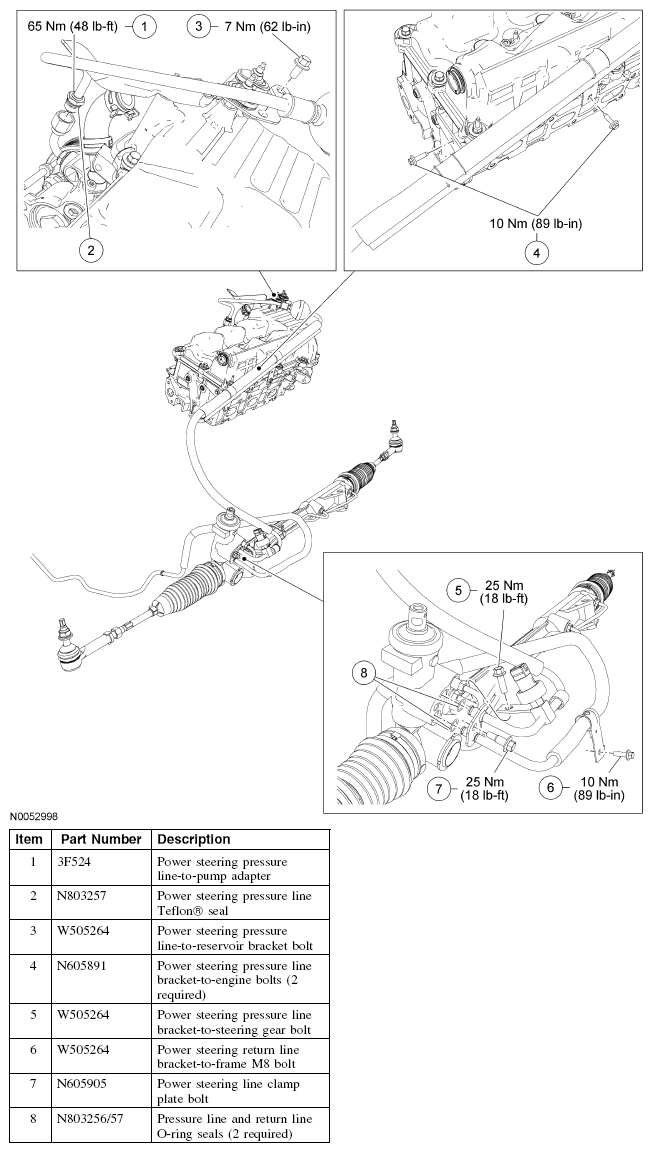

Fig 1: Power Steering Pump To Steering Gear Pressure Line Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.
