Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Lincoln Blackwood. However, it is still accessible from the selected car via links, so may be relevant.

For diagnosing procedure, see Fig 1-Fig 4 .

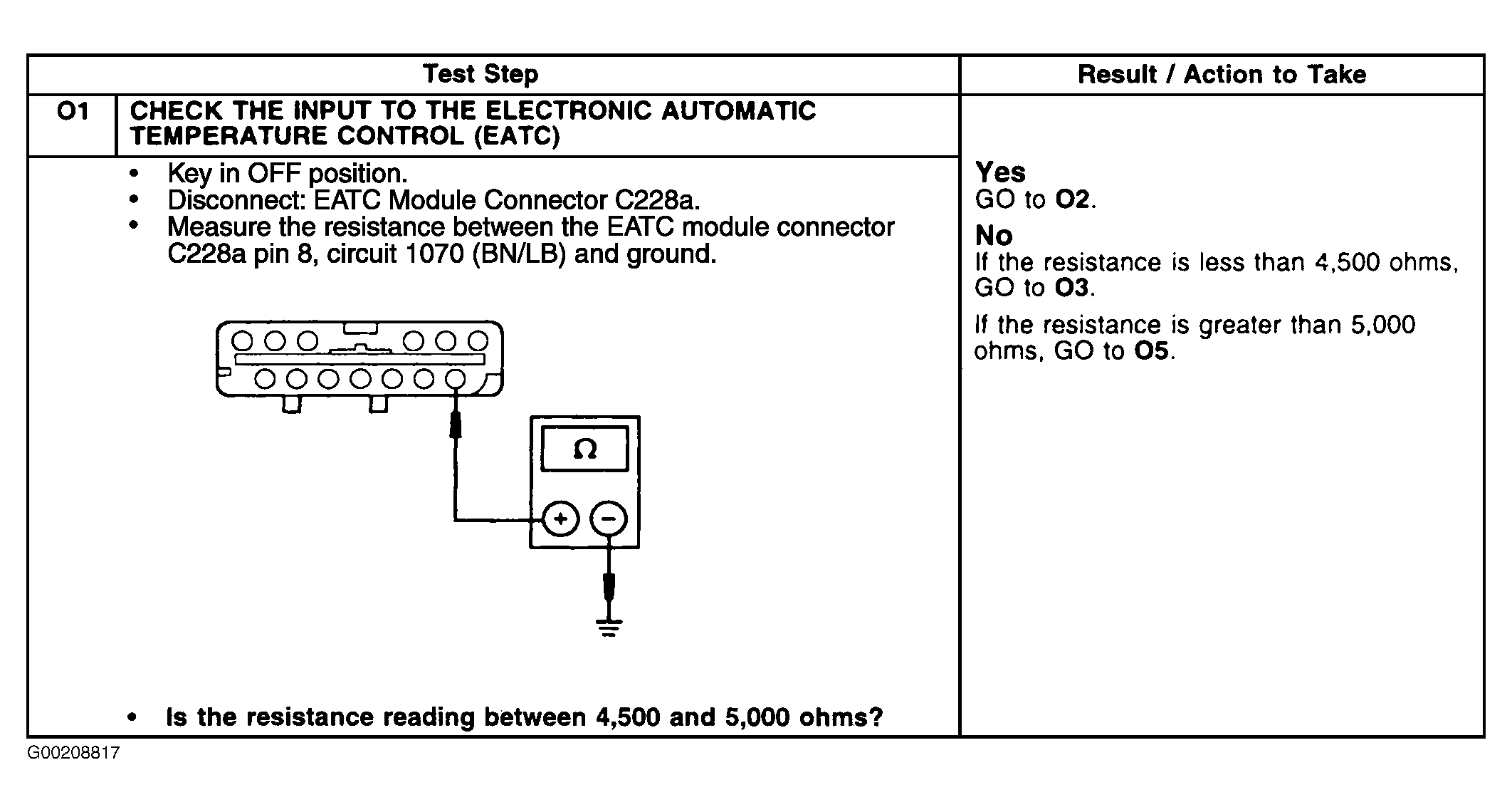

Fig 1: Test O (1 Of 4 - Step O1)

Courtesy of FORD MOTOR CO.

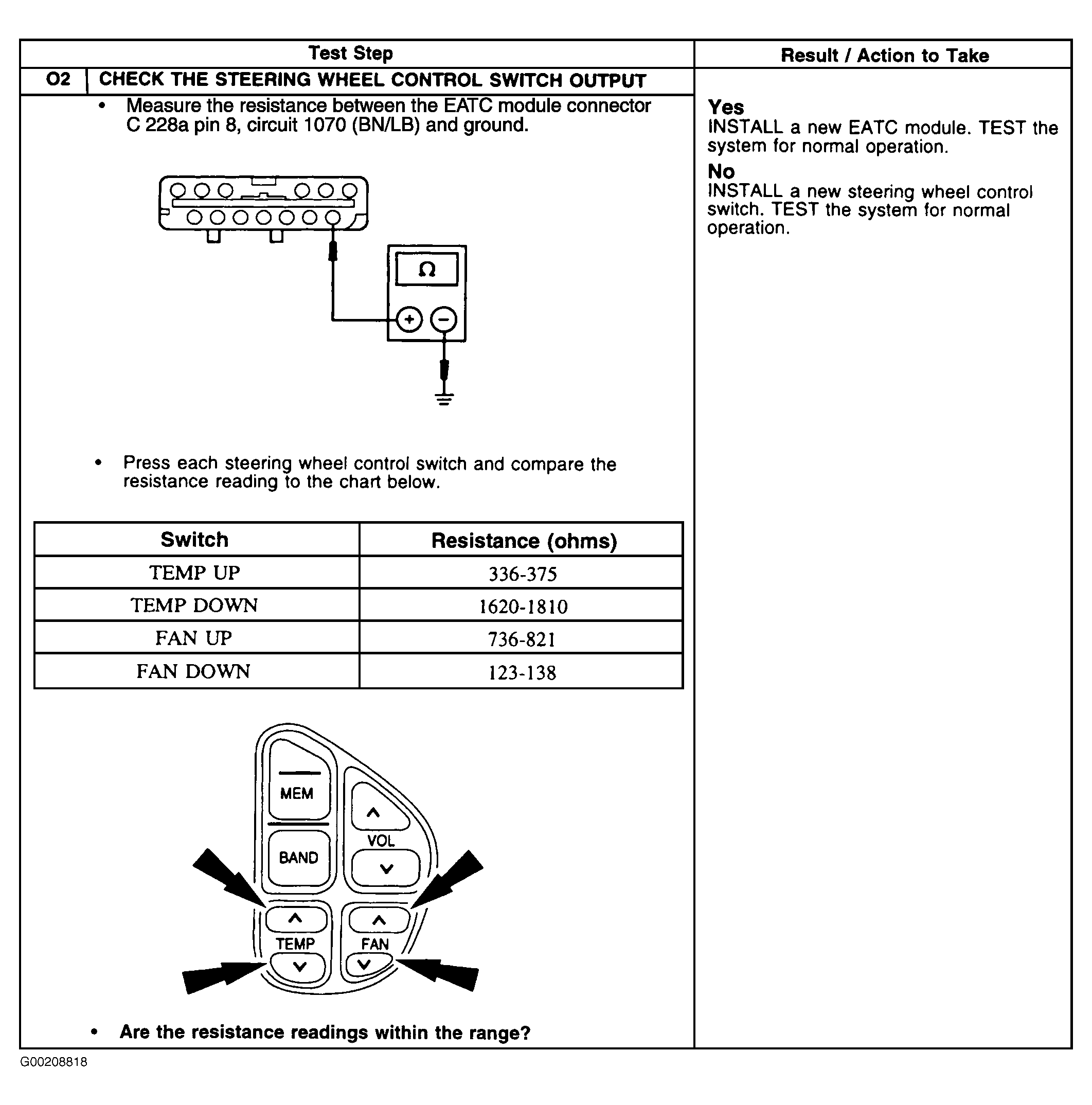

Fig 2: Test O (2 Of 4 - Step O2)

Courtesy of FORD MOTOR CO.

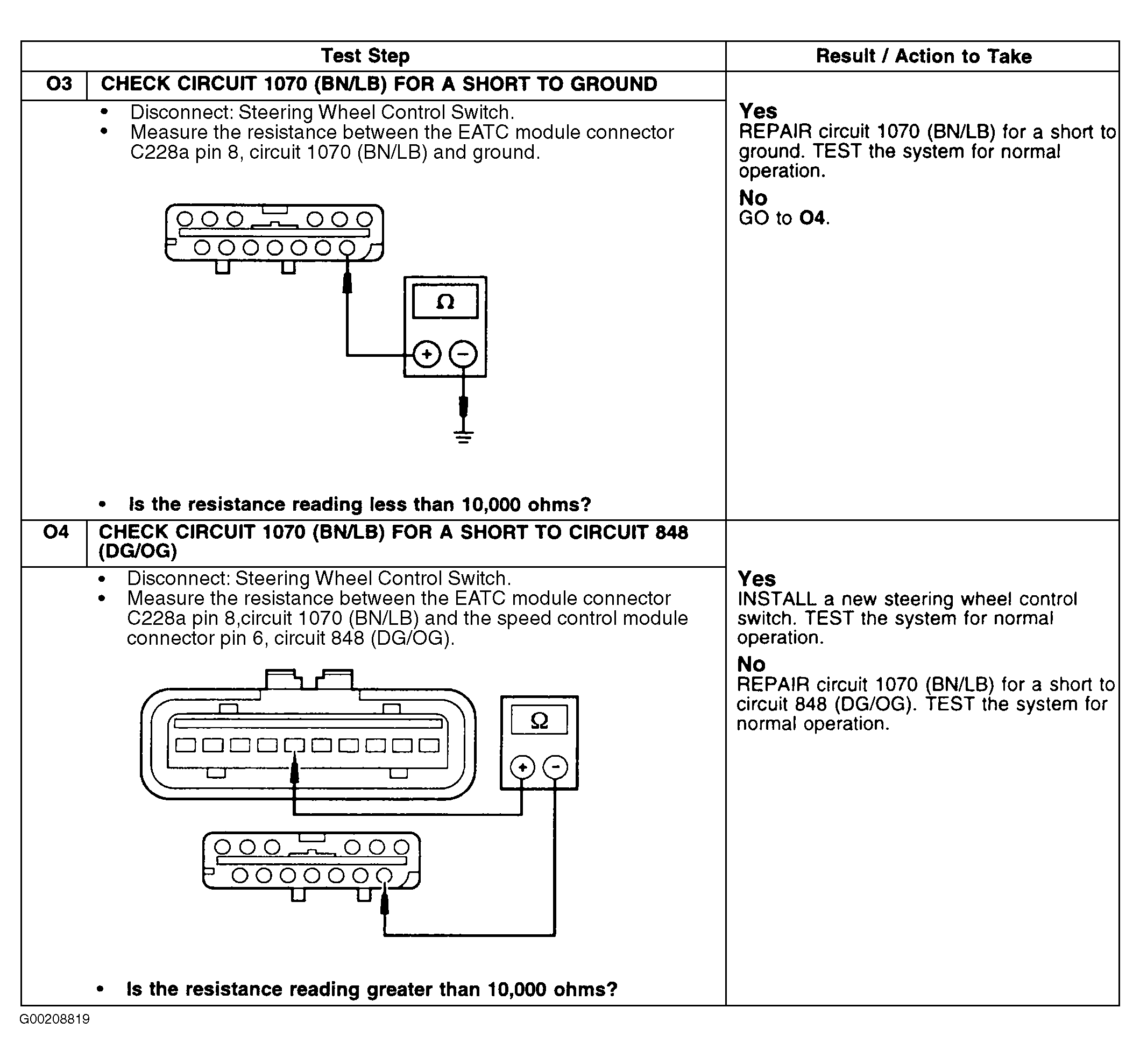

Fig 3: Test O (3 Of 4 - Steps O3-O4)

Courtesy of FORD MOTOR CO.

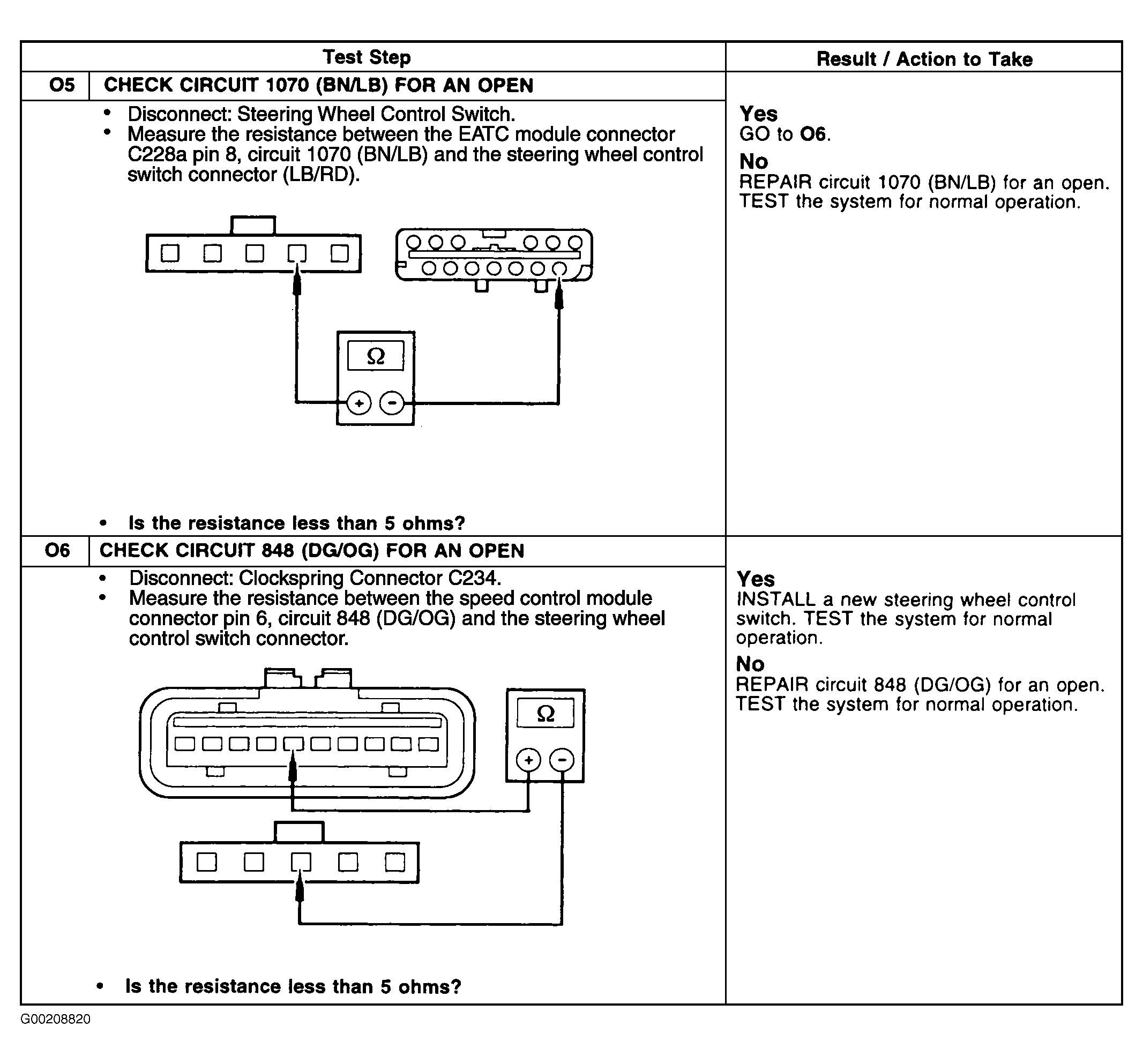

Fig 4: Test O (4 Of 4 - Steps O5-O6)

Courtesy of FORD MOTOR CO.
