Power Steering Pump - 2.3L: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Teflon® Seal Replacer Set | 211-D027 (D90P-3517-A) or equivalent |
Material
| Item | Specification |
|---|---|
| MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada) |
MERCON® |

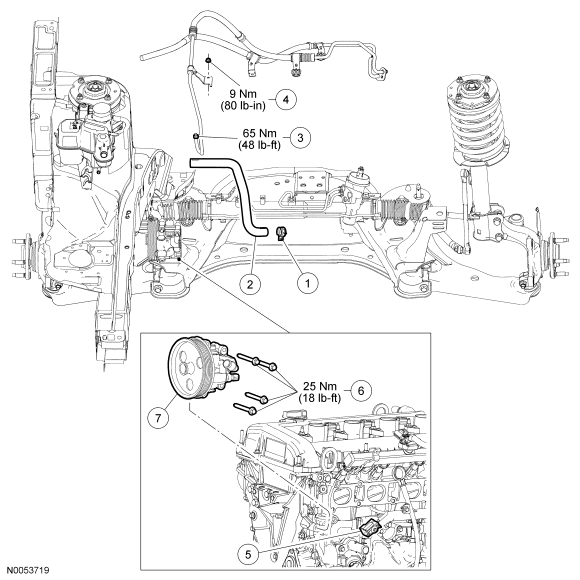

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Suction hose-to-power steering pump hose clamp (part of 3691-A) |
| 2 | 3691-A | Suction hose |
| 3 | - | Power steering pressure line fitting nut (part of 3A719) |
| 4 | W520412 | Power steering pressure line bracket nut |
| 5 | - | Power steering pressure switch electrical connector |
| 6 | W500315 | Power steering pump bolts (4 required) |
| 7 | 3A696-A | Power steering pump |
