Power Steering Pump to Steering Gear Pressure Line: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada) |
MERCON® |

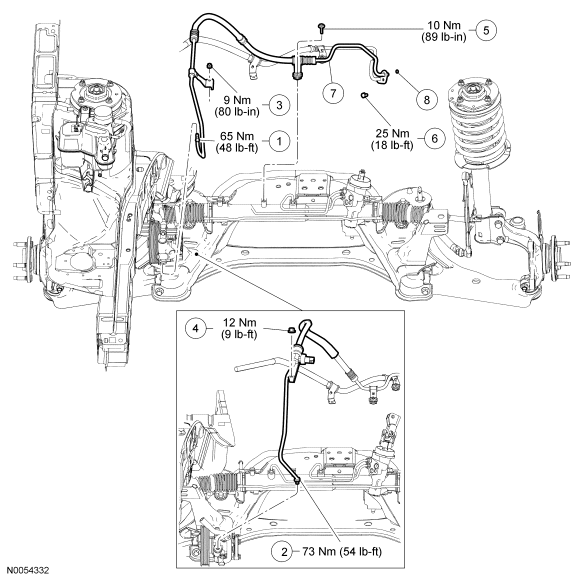

Fig 1: Exploded View Of Power Steering Pump To Steering Gear Pressure Line With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Power steering pressure line fitting nut (part of 3A719) (2.3L engine) |
| 2 | - | Power steering pressure line fitting nut (part of 3A719) (3.0L engine) |
| 3 | W520412 | Power steering pressure line bracket nut (2.3L engine) |
| 4 | W520414 | Power steering pressure line bracket nut (3.0L engine) |
| 5 | W707554 | Power steering pressure line bracket-to-steering gear bolt |
| 6 | W708234 | Power steering line clamp plate bolt |
| 7 | 3A719-A/ 3A719-B | Power steering pressure line (2.3L engine/3.0L engine) |
| 8 | 3L551-AA | O-ring |
