Special Tool(s)

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

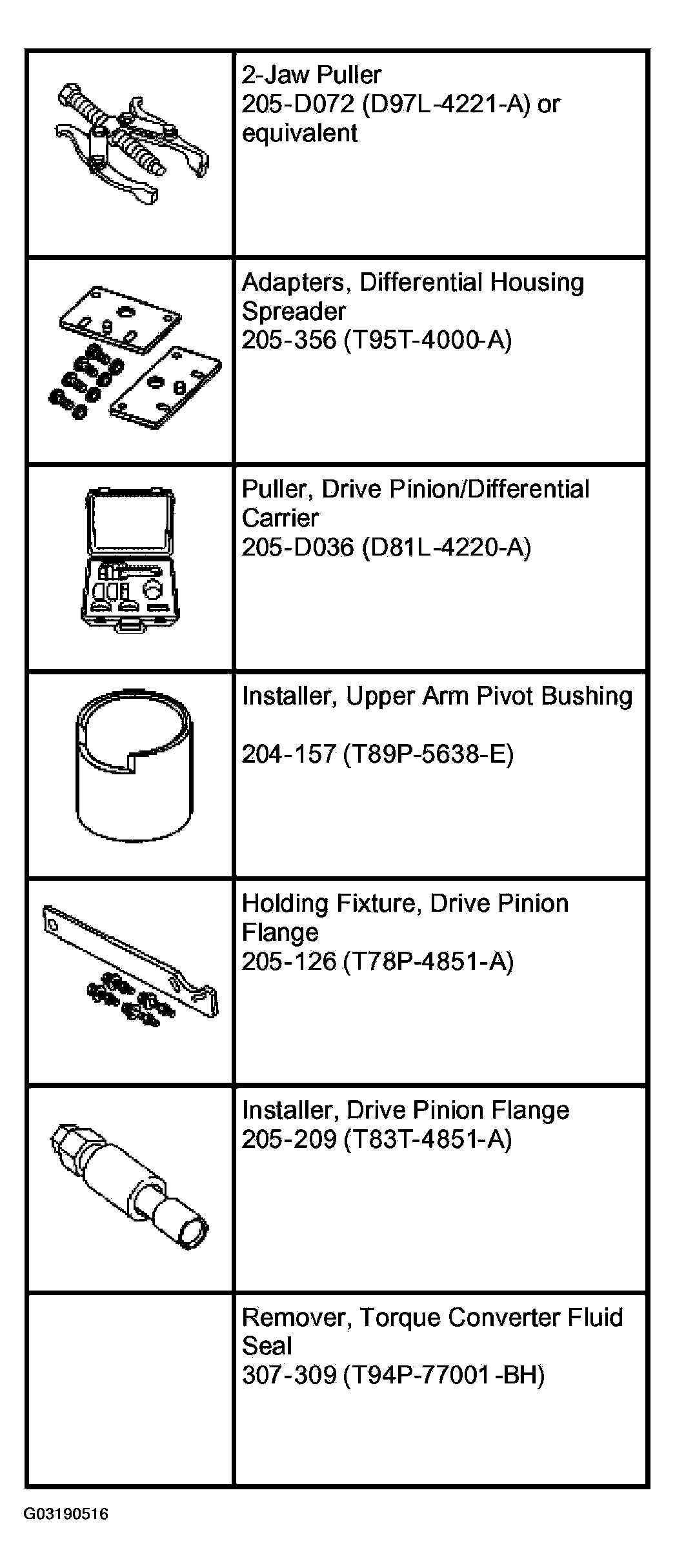

Fig 1: Identifying Special Tool(s)(1 Of 4)

Courtesy of FORD MOTOR CO.

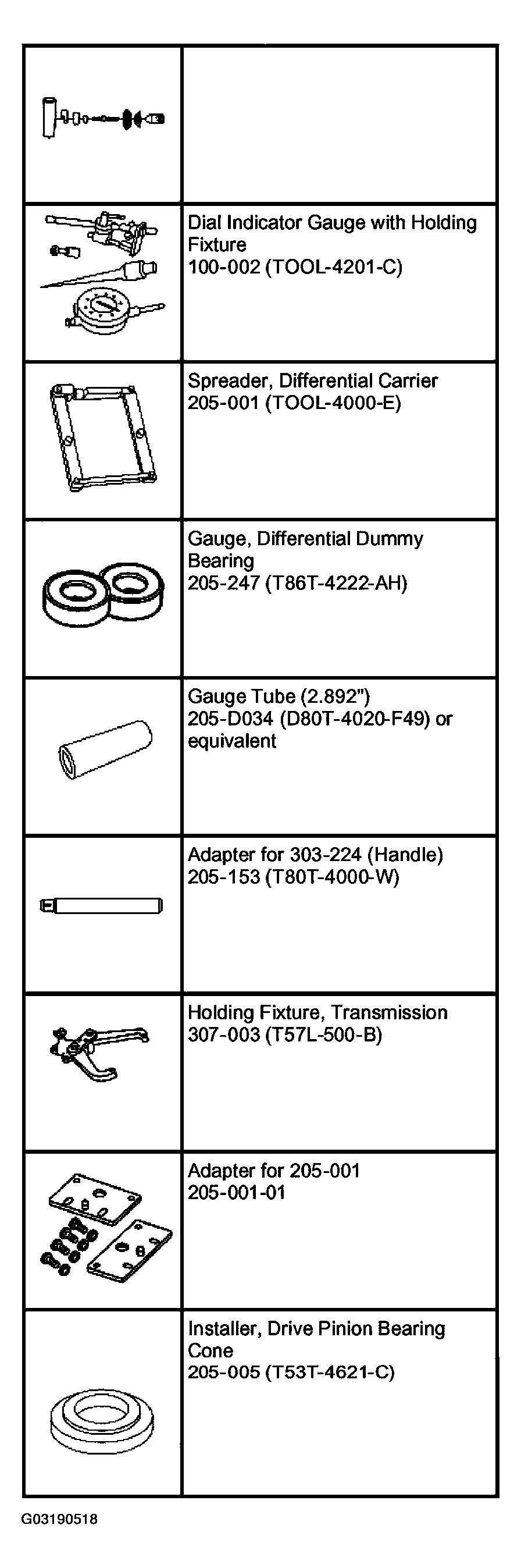

Fig 2: Identifying Special Tool(s)(2 Of 4)

Courtesy of FORD MOTOR CO.

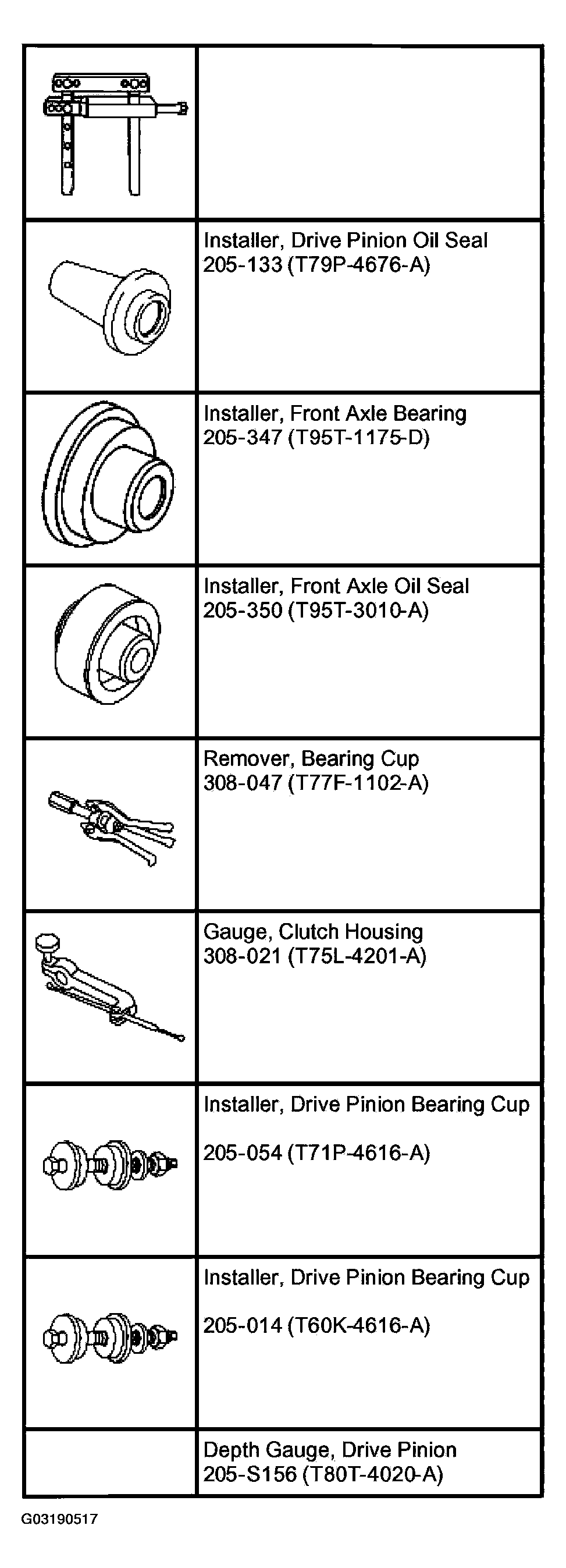

Fig 3: Identifying Special Tool(s)(3 Of 4)

Courtesy of FORD MOTOR CO.

Fig 4: Identifying Special Tool(s)(4 Of 4)

Courtesy of FORD MOTOR CO.
