Radio Frequency Interference Suppression Equipment

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

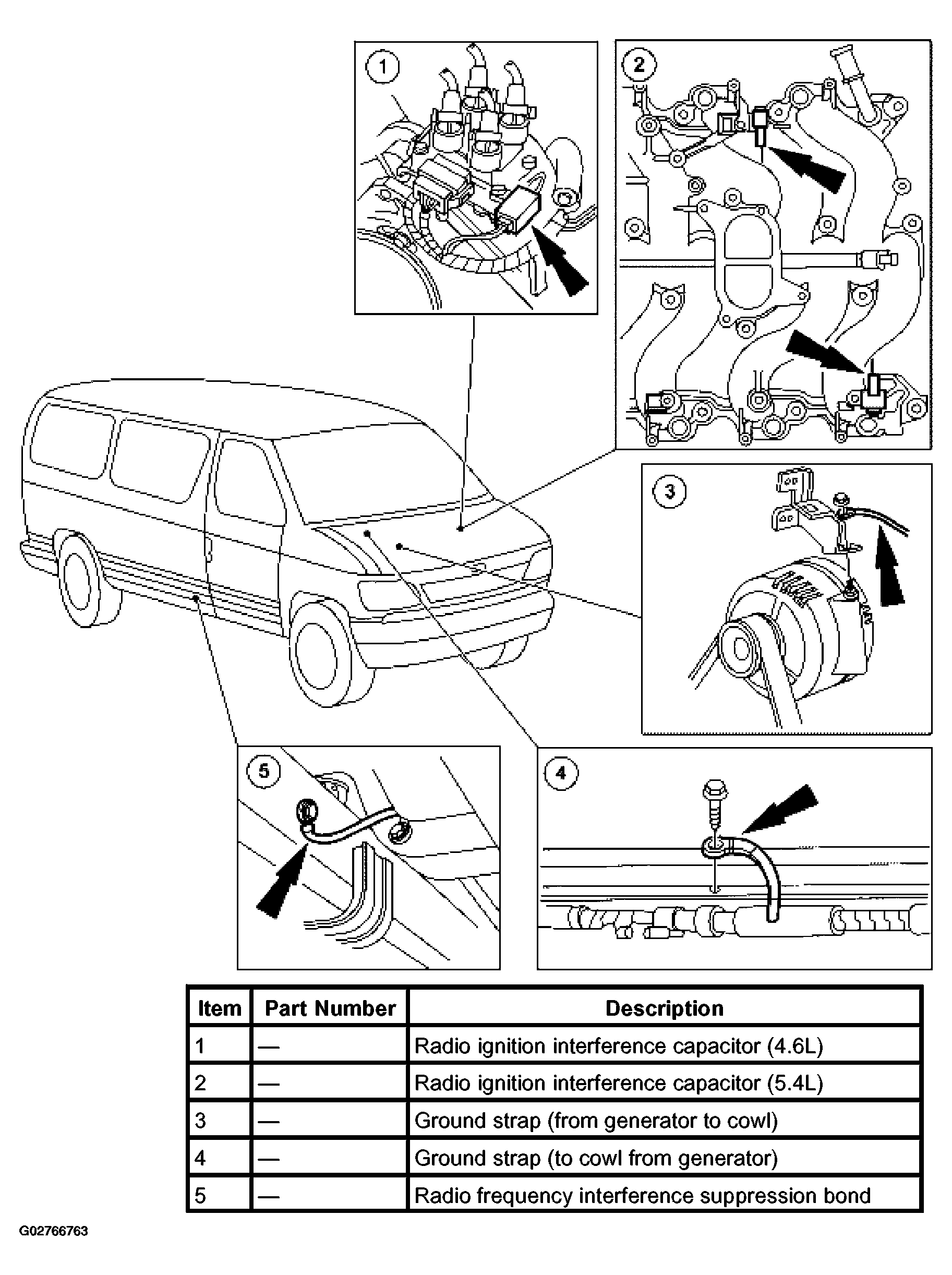

Fig 1: Identifying Radio Frequency Interference Suppression Equipment Locations
G02766763Courtesy of FORD MOTOR CO.

The radio suppression equipment reduces interference transmitted through the radio speakers by the engine ignition and electrical systems. When installing any radio suppression equipment components, make sure that a good contact is made at all connections. Remove any paint or dirt from between a component and its ground. Tighten all connectors and screws securely according to torque specifications.
